Load center, QO, 1 phase, 6 spaces, 6 circuits, 100A convertible main lugs, NEMA1, surface cover

LD CTR QO MLO 240V 100A 1PH 6S

SQDQO6L100S QO6L100S 785901207788
89.40 / EACH
http://schema.org/OutOfStock

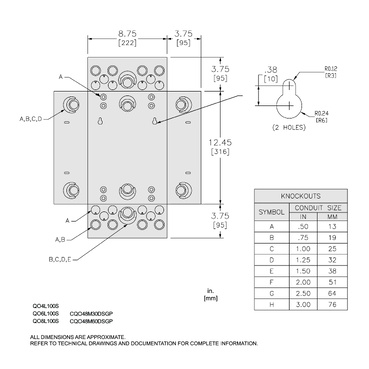

Mayer-DDS-Load center, QO, 1 phase, 6 spaces, 6 circuits, 100A convertible main lugs, NEMA1, surface cover-2
  • Country of Origin: USA
  • Cover Type: Surface Cover
  • Depth: 95 mm
  • Enclosure Material: Welded Sheet Steel
  • Height: 319 mm
  • Number of Circuits: 6
  • Number of Spaces: 6
  • Short Circuit Current Rating: 10 kA
  • Surface Finish: Baked Enamel Gray
  • Warranty Length: 18 mth
  • Width: 226 mm
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 6 spaces and 6 circuits. This system provides 100A convertible main lugs in a NEMA 1 enclosure. It also includes a surface cover, and is UL rated. The load center is CSA certified.
QTY
  • Product Description
  • Features
  • Specifications
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 6 spaces and 6 circuits. This system provides 100A convertible main lugs in a NEMA 1 enclosure. It also includes a surface cover, and is UL rated. The load center is CSA certified.
  • Prop 65
    • "WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
  • Environment
    • Product Certifications : cULus
    • Ambient Air Temperature For Operation : -5 °C || 40 °C
    • Nema Degree Of Protection : NEMA 1 indoor enclosure
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2212002
    • California Proposition 65 : "WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Circularity Profile : N/A
    • Take-Back : No
    • Global Warming ; Total Life Cycle​ : 21 kg CO2 eq.
    • Eu Rohs Directive : Compliant with Exemptions
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 21.0036754323
  • Complementary
    • Height : 319 mm
    • Phase : 1 phase 3 wires
    • Tightening Torque : main lugs 50 lb.in, AWG 8, aluminium/copper || main lugs 50 lb.in, AWG 6...AWG 1/0, aluminium/copper
    • [Ue] Rated Operational Voltage : 120/240 V AC
    • Electrical Connection : lugs
    • Number Of Circuits : 6
    • Number Of Spaces : 6
    • Short-Circuit Current : 10 kA
    • Number Of Tandem Circuit Breakers : 0
    • Material : tin plated aluminium: busbar
    • Surface Finish : baked enamel Gray
    • Line Rated Current : 100 A
    • Enclosure Material : welded sheet steel
    • Width : 226 mm
    • Depth : 95 mm
    • Load Center Type : Fixed Mains (lugs)
    • Device Composition : grounding bar (ordered separately)
  • Specifications
    • Country of Origin : United States
    • Width : 226 mm
    • Height : 319 mm
    • Range Of Product : QO
    • Product Or Component Type : Load Center
    • Cover Type : surface cover
