Load center, QO, 3 phase, 3 spaces, 3 circuits, 100A main lugs, NEMA1, surface cover, CSA

LD CTR QO MLO 240V 100A 3PH 3S

SQDQO403L100S QO403L100S 785901207757
144.46 / EACH
http://schema.org/OutOfStock

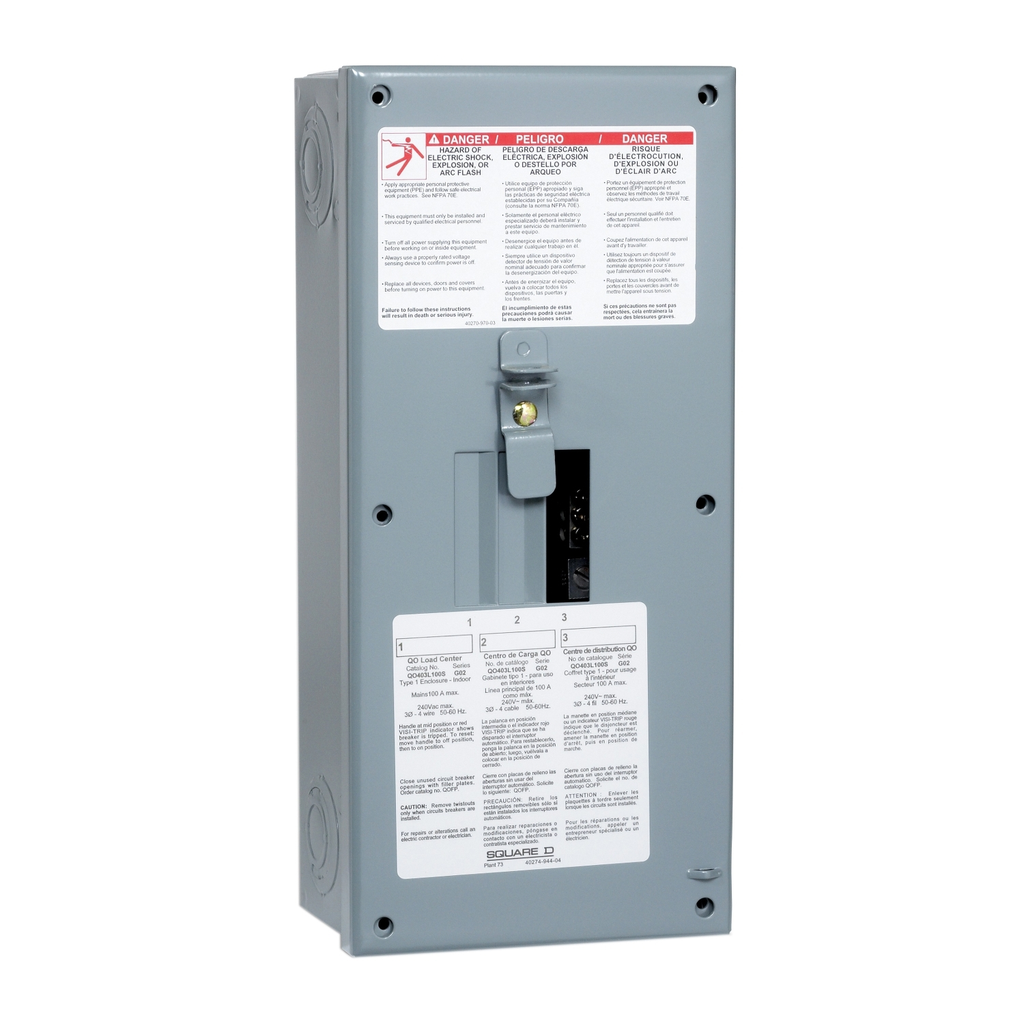

Mayer-DDS-Load center, QO, 3 phase, 3 spaces, 3 circuits, 100A main lugs, NEMA1, surface cover, CSA-1
  • Cover Type: Surface Cover
  • Depth: 84 mm
  • Enclosure Material: Welded Sheet Steel
  • Height: 330 mm
  • Number of Circuits: 3
  • Number of Spaces: 3
  • Short Circuit Current Rating: 65 kA
  • Surface Finish: Baked Enamel Gray
  • Warranty Length: 18 mth
  • Width: 146 mm
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 3 spaces and 3 circuits. This system provides 100A main lugs in a NEMA 1 enclosure. It also includes a surface cover, and is CSA and UL rated.
QTY
  • Product Description
  • Features
  • Specifications
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 3 spaces and 3 circuits. This system provides 100A main lugs in a NEMA 1 enclosure. It also includes a surface cover, and is CSA and UL rated.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : cULus
    • Ambient Air Temperature For Operation : -5 °C || 40 °C
    • Nema Degree Of Protection : NEMA 1 indoor enclosure
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2212001
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : N/A
    • Take-Back : No
    • Global Warming ; Total Life Cycle​ : 20 kg CO2 eq.
    • Eu Rohs Directive : Compliant with Exemptions
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 20.3093421714
  • Complementary
    • Height : 330 mm
    • Phase : 3 phase 4 wires
    • Tightening Torque : main lugs 35 lb.in, AWG 14...AWG 10, aluminium/copper || main lugs 50 lb.in, AWG 3...AWG 1, aluminium/copper || main lugs 40 lb.in, AWG 8...AWG 4, aluminium/copper
    • [Ue] Rated Operational Voltage : 208Y/120 V AC || 240/120 V delta AC || 240 V delta AC
    • Electrical Connection : lugs
    • Number Of Circuits : 3
    • Number Of Spaces : 3
    • Short-Circuit Current : 65 kA
    • Number Of Tandem Circuit Breakers : 0
    • Material : tin plated copper: busbar
    • Surface Finish : baked enamel Gray
    • Line Rated Current : 100 A
    • Enclosure Material : welded sheet steel
    • Awg Gauge : AWG 10...AWG 6 copper
    • Width : 146 mm
    • Depth : 84 mm
    • Load Center Type : Fixed Mains (lugs)
    • Device Composition : grounding bar (ordered separately)
  • Specifications
    • Country of Origin : Mexico
    • Width : 146 mm
    • Height : 330 mm
    • Range Of Product : QO
    • Product Or Component Type : Load Center
    • Cover Type : surface cover
