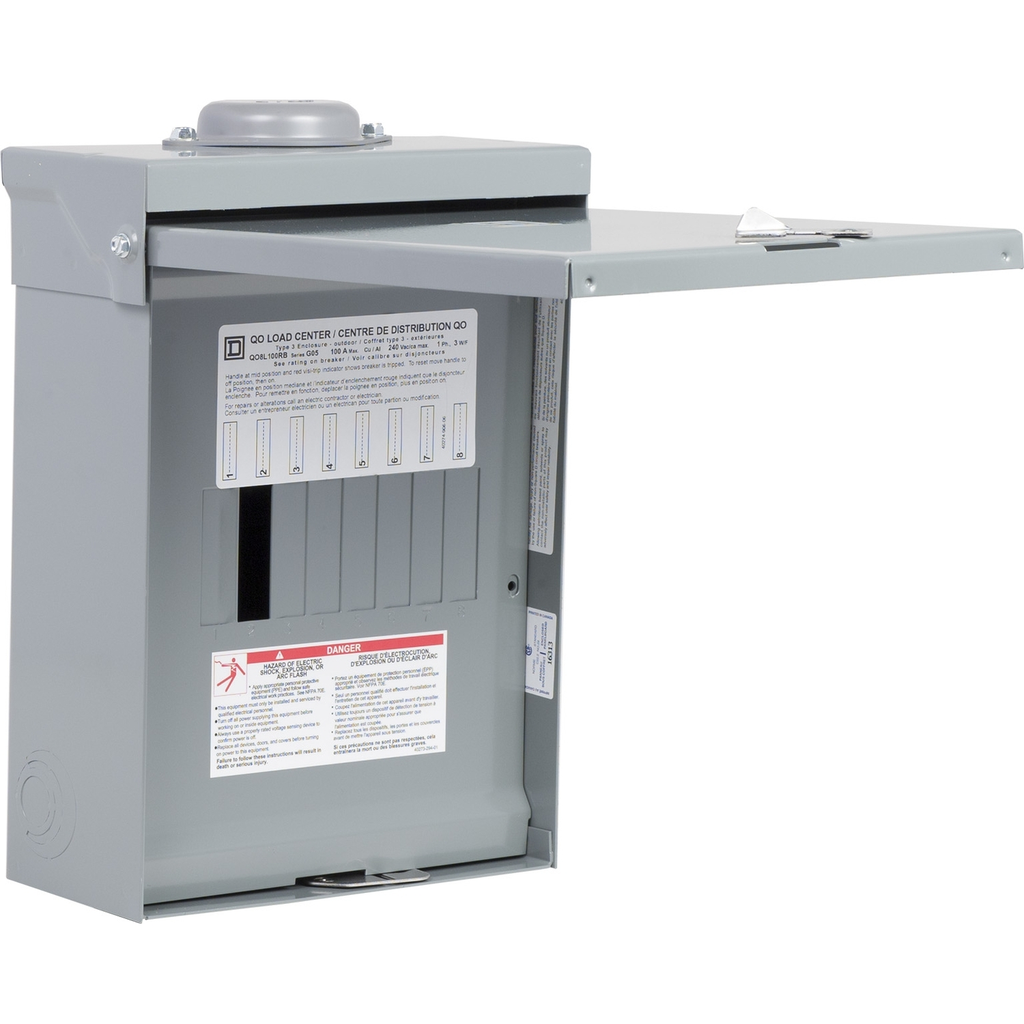

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems,

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0.0954210655
• 0.1 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0.3 kg CO2 eq.
• 0.2642745852
• Ue Rated Operational Voltage
• 120/240 V AC
• Phase
• 1 phase 3 wires
• Material
• tin plated aluminium: busbar
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 19 kg CO2 eq.
• 18.7080524017
• Nema Degree Of Protection
• NEMA 3R weatherproof enclosure
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 4 kg CO2 eq.
• 4.0395
• Carbon Footprint Of The Distribution Phase A4
• 1.4603297817
• 1 kg CO2 eq.
• Tightening Torque
• main lugs 40 lb.in, AWG 8, aluminium/copper
• main lugs 45 lb.in, AWG 6...AWG 1, aluminium/copper
• main lugs 45 lb.in, AWG 6.
• Ambient Air Temperature For Operation
• -5 °C
• 40 °C

• Conformance Attributes
• Product Certifications : cULus
• Complementary Attributes
• Line Rated Current : 100 A
• Important Information Attributes
• B2B Bullet Point 1 : Provides superior performance and durability
• B2B Bullet Point 2 : Straight in wiring saves wire, labor, and time
• B2B Bullet Point 3 : Faster installation using PoN breakers that connect directly
• B2B Bullet Point 4 : 50% more terminations for clutter-free wiring
• B2B Bullet Point 5 : Complies with UL 67 listed, CSA, and IEC standards
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-18
• Manufacturing Carbon Footprint : 18.7080524017
• Distribution Carbon Footprint : 1.4603297817
• Installation Carbon Footprint : 0.0954210655
• Use Carbon Footprint : 4.0395
• End Of Life Carbon Footprint : 0.2642745852
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant
• ROHS Eur Conformity Date : 2532
• ROHS Eur Full Compliance Status : Compliant
• ROHS Eur Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• China ROHS Label : 1
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Persona Type Ids : OM
• Persona Type Names : Original Equipment Manufacturer
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : RESIDENTIAL
• Market Segmentation : Residential
• H And D Domain : Safety
• H And D Subrange : RESI
• H And D Enrichment Assignment : no
• H And D Enrichment Function : ENCLOSURES
• Cover Type : surface cover
• Device Composition : grounding bar (ordered separately)
• Electrical Connection : lugs
• Energy Efficiency Optimized : False
• Load Center Type : Fixed Mains (lugs)
• Number Of Circuits : 8
• Number Of Spaces : 8
• Number Of Tandem Circuit Breakers : 0
• Package Weight Lbs : 4.32 kg
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : Load Center
• Range Of Product : QO
• Returnability : Yes
• Short Circuit Current : 10 kA
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 25 kg CO2 eq.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 24.5675778341
• General Attributes
• Product Or Component Type : Load Center
• Range Of Product : QO
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=361035&lang=en-us
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 24.5675778341
• Environmental Disclosure : ENVPEP2212002
• Eu Rohs Directive : Compliant
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico
• Height : 12.48 in
• Width : 8.78 in
• Depth : 4.02 in
