Load center, QO, 1 phase, 8 spaces, 8 circuits, 100A convertible main lugs, NEMA1, flush surface

LD CTR QO MLO 240V 100A 1PH 8S

SQDQO8L100F QO8L100F 785901965657
137.89 / EACH
http://schema.org/OutOfStock

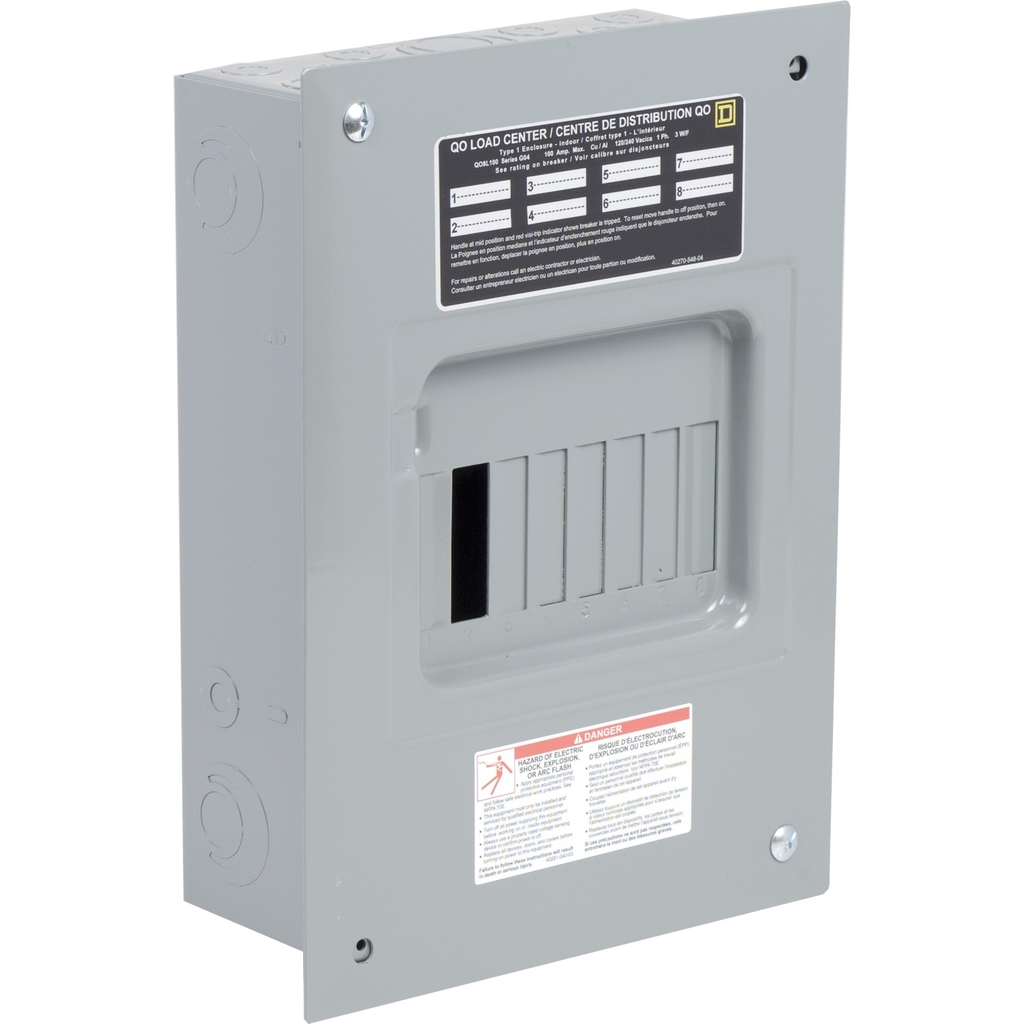

Mayer-DDS-Load center, QO, 1 phase, 8 spaces, 8 circuits, 100A convertible main lugs, NEMA1, flush surface-1
  • Country of Origin: Mexico
  • Cover Type: Flush Cover
  • Depth: 95 mm
  • Height: 319 mm
  • Number of Circuits: 8
  • Number of Spaces: 8
  • Short Circuit Current Rating: 10 kA
  • Warranty Length: 18 mth
  • Width: 226 mm
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 8 spaces and 8 circuits. This system provides 100A convertible main lugs in a NEMA 1 enclosure. It also includes a flush surface, and is UL rated.
QTY
  • Product Description
  • Features
  • Specifications
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 8 spaces and 8 circuits. This system provides 100A convertible main lugs in a NEMA 1 enclosure. It also includes a flush surface, and is UL rated.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : cULus
    • Ambient Air Temperature For Operation : -5 °C || 40 °C
    • Nema Degree Of Protection : NEMA 1 indoor enclosure
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2212002EN
    • Packaging Without Single Use Plastic : No
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Circularity Profile : N/A
    • Take-Back : No
    • Sustainable Packaging : No
    • Eu Rohs Directive : Compliant
  • Complementary
    • Height : 319 mm
    • Phase : 1 phase 3 wires
    • Tightening Torque : main lugs 50 lb.in, AWG 6...AWG 1, aluminium/copper
    • [Ue] Rated Operational Voltage : 120/240 V AC
    • Electrical Connection : lugs
    • Number Of Circuits : 8
    • Number Of Spaces : 8
    • Short-Circuit Current : 10 kA
    • Number Of Tandem Circuit Breakers : 0
    • Material : tin plated aluminium: busbar
    • Line Rated Current : 100 A
    • Width : 226 mm
    • Depth : 95 mm
    • Load Center Type : Fixed Mains (lugs)
    • Device Composition : grounding bar (ordered separately)
  • Specifications
    • Country of Origin : Mexico
    • Width : 226 mm
    • Height : 319 mm
    • Range Of Product : QO
    • Product Or Component Type : Load Center
    • Cover Type : flush cover
