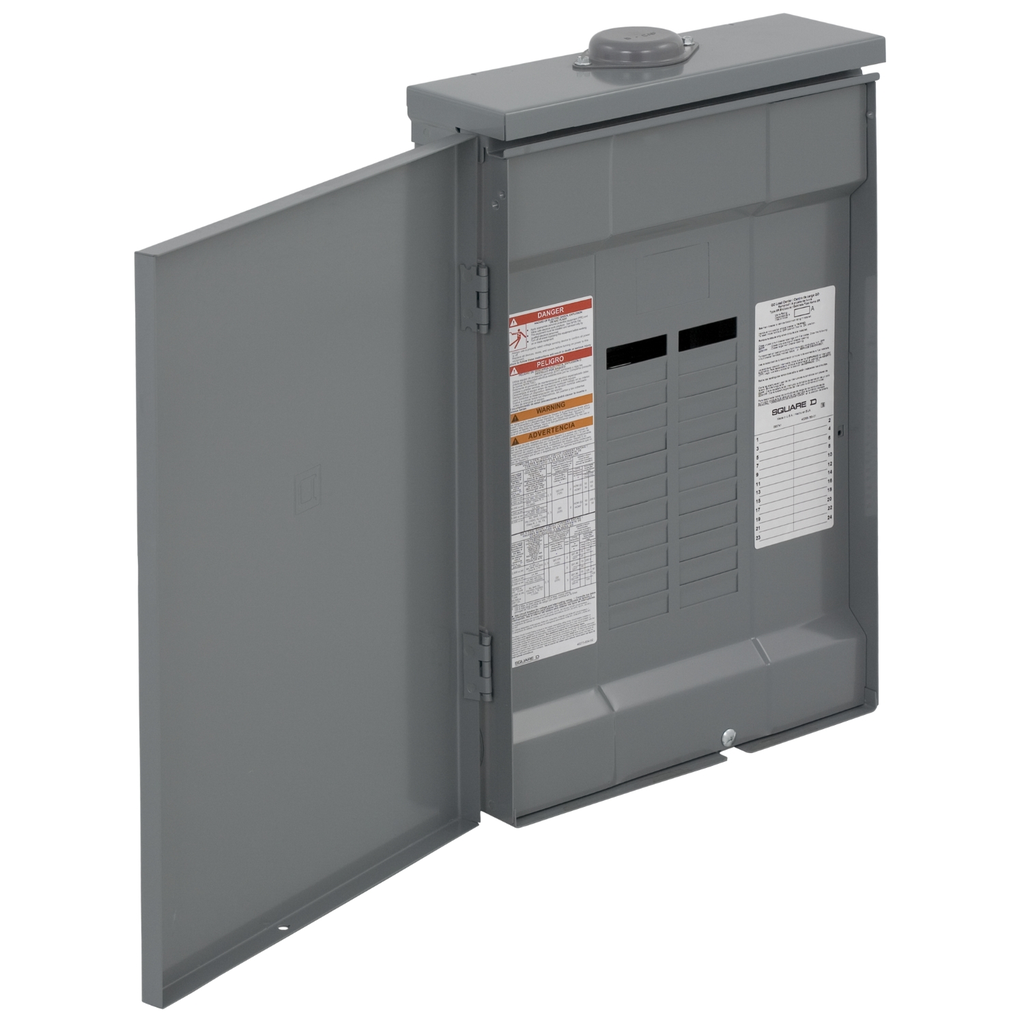

Load center, QO, 1 phase, 24 spaces, 34 circuits, 125A convertible main lugs, PoN, NEMA3R, gnd bar

QO PLUG-ON NUET LC N3R 1PH 24

SQDQO124L125PGRB QO124L125PGRB 785901101383
178.72 / EA
http://schema.org/OutOfStock
Mayer-DDS-Load center, QO, 1 phase, 24 spaces, 34 circuits, 125A convertible main lugs, PoN, NEMA3R, gnd bar-2
  • Country of Origin: USA
  • Cover Type: Surface Cover
  • Enclosure Material: Steel
  • Height: 560 mm
  • Number of Circuits: 34
  • Number of Spaces: 24
  • Short Circuit Current Rating: 65 kA
  • Surface Finish: Baked Enamel Gray
  • Width: 375 mm
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 24 spaces and 34 circuits. This system provides 125A convertible main lugs in a NEMA 3R enclosure. It also includes plug on neutral, ground bar, and is UL rated.
QTY
  • Product Description
  • Features
  • Specifications
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 24 spaces and 34 circuits. This system provides 125A convertible main lugs in a NEMA 3R enclosure. It also includes plug on neutral, ground bar, and is UL rated.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2212001
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : N/A
    • Take-Back : No
    • Eu Rohs Directive : Compliant with Exemptions
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 84.483556495
  • Complementary
    • Height : 560 mm
    • Phase : 1 phase 3 wires
    • Tightening Torque : main lugs 50 lb.in, AWG 6...AWG 2/0, aluminium/copper
    • Electrical Connection : lugs
    • Number Of Circuits : 34
    • Number Of Spaces : 24
    • Short-Circuit Current : 65 kA
    • Number Of Tandem Circuit Breakers : 10
    • Material : tin plated copper: busbar
    • Surface Finish : baked enamel Gray
    • Line Rated Current : 125 A
    • Enclosure Material : welded galvannealed steel
    • Awg Gauge : AWG 6...AWG 2/0 aluminium/copper
    • Width : 375 mm
    • Load Center Type : PoN Convertible Mains (lugs)
    • Device Composition : grounding bar included (not installed)
    • Box Number : 4R
  • Specifications
    • Country of Origin : United States
    • Width : 375 mm
    • Height : 560 mm
    • Range Of Product : QO
    • Product Or Component Type : Load Center
    • Cover Type : surface cover
  • Environment
    • Product Certifications : UL Listed
    • Ambient Air Temperature For Operation : -5 °C || 40 °C
    • Nema Degree Of Protection : NEMA 3R weatherproof enclosure
