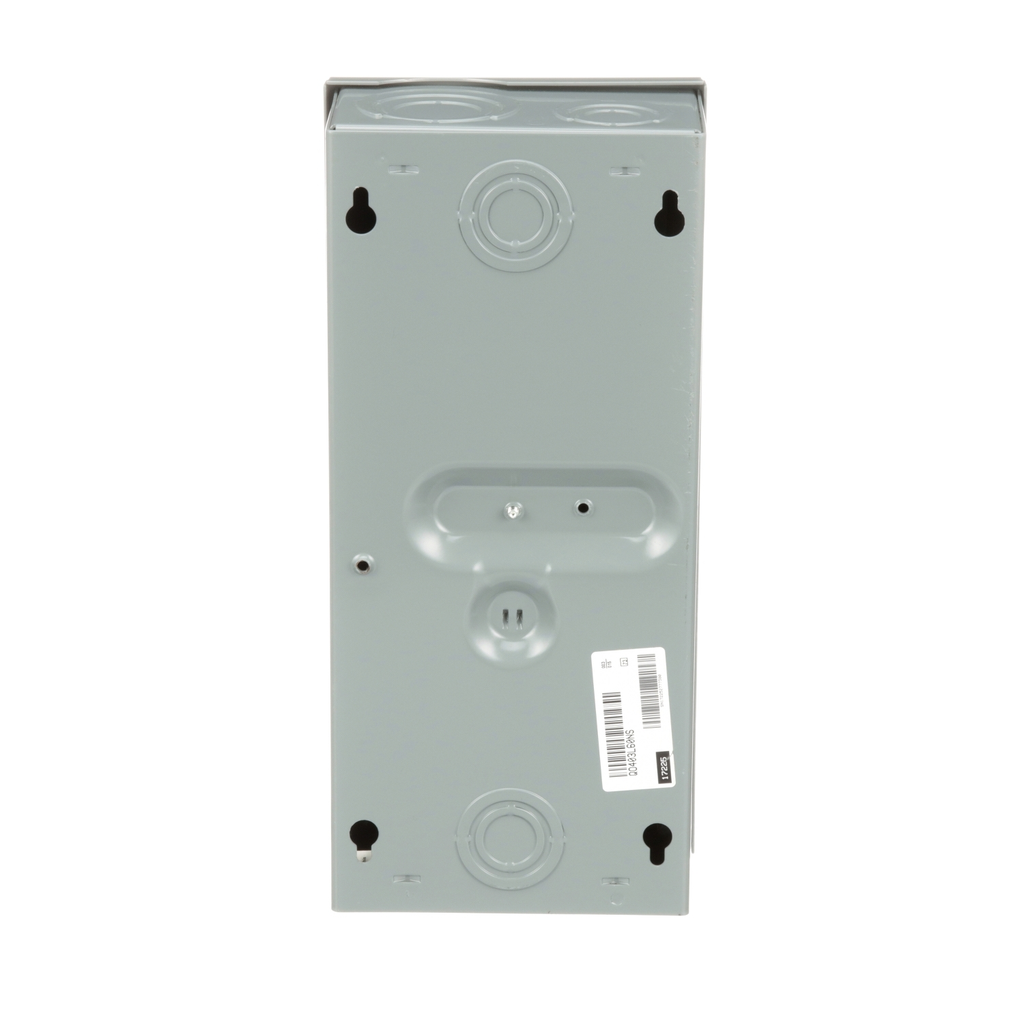

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 3 spaces and 3 circuits. This system provides 60A main lugs in a NEMA 1 enclosure. It also includes a neutral ground bar, surface cover, and is UL rated.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Environment
• Product Certifications : UL Listed
• Ambient Air Temperature For Operation : -5 °C || 40 °C
• Nema Degree Of Protection : NEMA 1 indoor enclosure
• Contractual warranty
• Warranty : 18 months
• Environmental data
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : No
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP2212001
• Packaging Without Single Use Plastic : No
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Toxic Heavy Metal Free : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Circularity Profile : N/A
• Take-Back : No
• Sustainable Packaging : No
• Eu Rohs Directive : Compliant
• Complementary
• Height : 333 mm
• Phase : 3 phase 4 wires
• Tightening Torque : main lugs 35 lb.in, AWG 14...AWG 10, aluminium/copper || main lugs 50 lb.in, AWG 3...AWG 1, aluminium/copper || main lugs 40 lb.in, AWG 8...AWG 4, aluminium/copper || main lugs 35 lb.in, AWG 12...AWG10, aluminium/copper
• [Ue] Rated Operational Voltage : 208Y/120 V AC || 240/120 V delta AC || 240 V delta AC
• Electrical Connection : lugs
• Number Of Circuits : 3
• Number Of Spaces : 3
• Short-Circuit Current : 65 kA
• Number Of Tandem Circuit Breakers : 0
• Material : tin plated aluminium: busbar
• Surface Finish : baked enamel Gray
• Line Rated Current : 60 A
• Enclosure Material : welded sheet steel
• Awg Gauge : AWG 10...AWG 6 copper
• Width : 149 mm
• Load Center Type : Fixed Mains (lugs)
• Device Composition : neutral (factory installed)
• Box Number : 13
• Specifications
• Country of Origin : Mexico
• Width : 149 mm
• Height : 333 mm
• Range Of Product : QO
• Product Or Component Type : Load Center
• Cover Type : surface cover
