SQUARE D

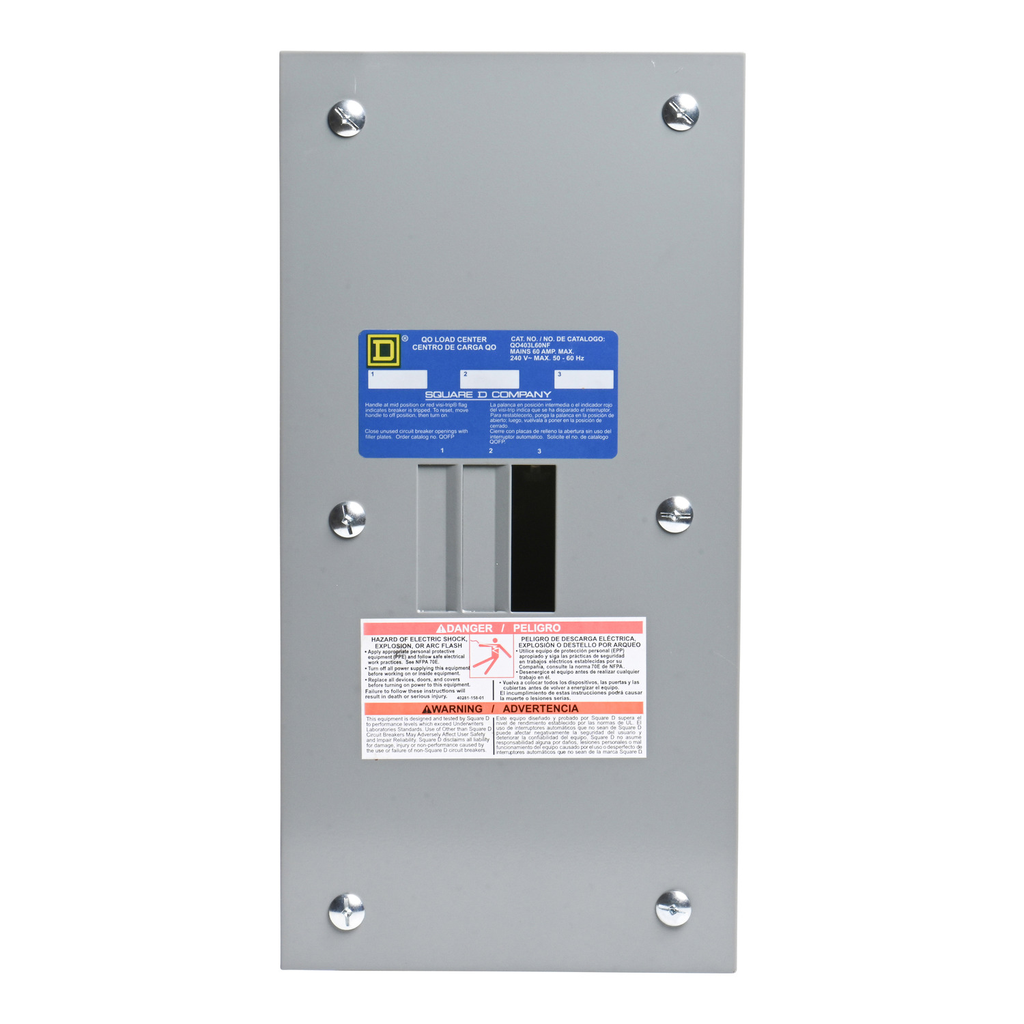

Load center, QO, 3 phase, 3 spaces, 3 circuits, 60A main lugs, NEMA1, neutral gnd bar, flush cover

LOAD CENTER QO MLO 240V 60A 3P

SQDQO403L60NF QO403L60NF 785901051695
114.93 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Load center, QO, 3 phase, 3 spaces, 3 circuits, 60A main lugs, NEMA1, neutral gnd bar, flush cover-1
  • Cover Type: Flush Cover
  • Depth: 86 mm
  • Enclosure Material: Welded Sheet Steel
  • Surface Finish: Baked Enamel Gray
  • Warranty Length: 18 mth
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 3 spaces and 3 circuits. This system provides 60A main lugs in a NEMA 1 enclosure. It also includes a neutral ground bar, flush cover, and is UL rated.
QTY
  • Product Description
  • Features
  • Specifications
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 3 spaces and 3 circuits. This system provides 60A main lugs in a NEMA 1 enclosure. It also includes a neutral ground bar, flush cover, and is UL rated.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Assets
    • Cad : https://download.schneider-electric.com/files?p_Doc_Ref=3022&p_File_name=3022.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=3022&p_File_name=3022.dxf
  • Conformance Attributes
    • Product Certifications : UL Listed
  • Complementary Attributes
    • Ue Rated Operational Voltage : 208Y/120 V AC, 240/120 V delta AC, 240 V delta AC
    • Line Rated Current : 60 A
  • Important Information Attributes
    • Persona Type Ids : EU, LC, OM
    • Persona Type Names : End User, Contractor, Original Equipment Manufacturer
    • Tightening Torque : main lugs 35 lb.in, AWG 14...AWG 10, aluminium/copper, main lugs 50 lb.in, AWG 3...AWG 1, aluminium/copper, main lugs 40 lb.in, AWG 8...AWG 4, aluminium/copper, main lugs 35 lb.in, AWG 12...AWG10, aluminium/copper
    • Medium Desc : Load center, QO, 3 phase, 3 spaces, 3 circuits, 60A main lugs, NEMA1, neutral gnd bar, flush cover
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Global Commercial Status : Commercialised
    • Return Indicator : Y
    • Stocking Flag : N
    • H And D Domain : Safety
    • H And D Subrange : COM
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : ENCLOSURES
    • H And D Enrichment Class 3 : Load centers (equipped)
    • H And D Enrichment Class 4 : Three-phase main lugs only load center
    • Legacy Weee Scope : In
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : No
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : COMMERCIAL
    • Market Segmentation : Commercial
    • Product Kit Identifier : N
    • Awg Gauge : AWG 10...AWG 6 copper
    • Cover Type : flush cover
    • Device Composition : neutral (factory installed)
    • Electrical Connection : lugs
    • Enclosure Material : welded sheet steel
    • Energy Efficiency Optimized : False
    • Load Center Type : Fixed Mains (lugs)
    • Material : tin plated aluminium: busbar
    • Phase : 3 phase 4 wires
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Load Center
    • Range Of Product : QO
    • Returnability : Yes
    • Short Circuit Current : 65 kA
    • Surface Finish : baked enamel Gray
    • Sustainable Packaging : No
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Pep Code : ENVPEP2212003EN
    • Height Nominal : 333 mm
    • Width Nominal : 149 mm
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Ambient Air Temperature For Operation : -5 °C, 40 °C
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2212003EN
    • Eu Rohs Directive : Compliant
    • Nema Degree Of Protection : NEMA 1 indoor enclosure
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2212003EN
  • General Attributes
    • Phase : 3 phase 4 wires
    • Product Or Component Type : Load Center
    • Range Of Product : QO
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Depth : 86 mm
