Load center interior, QO, mounting base, 3 phase, 24 spaces, 200A main studs, OEM

OEM MTG BASE QO STUDS ONLY 240

SQDQON324S200 QON324S200 785901183006
256.83 / EA
http://schema.org/OutOfStock

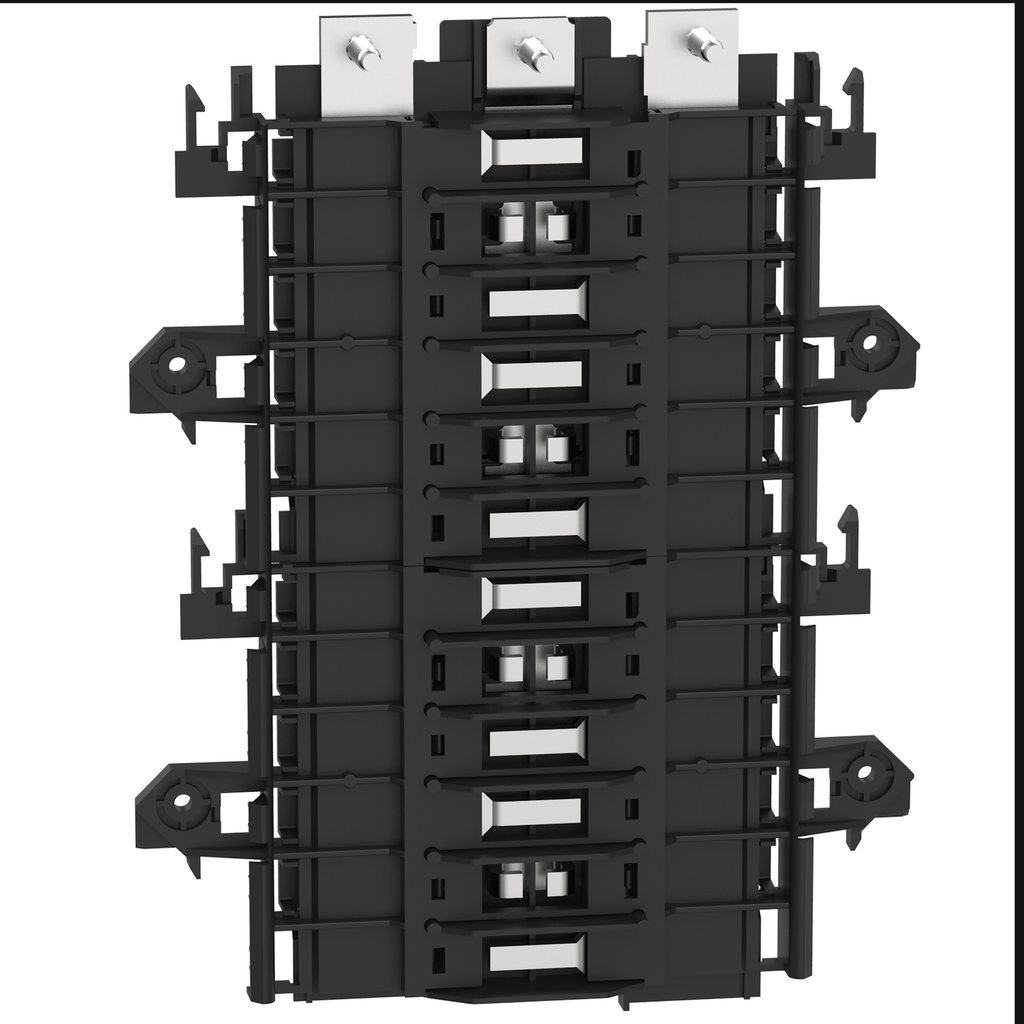

Mayer-DDS-Load center interior, QO, mounting base, 3 phase, 24 spaces, 200A main studs, OEM-1
  • Depth: 343 mm
  • Warranty Length: 18 mth
QO Load Centers offer premium features like QO breakers, ground arc fault interrupters and surge arresters. QO load centers are designed for residential and industrial use to protect electrical systems, equipment and people. Systems are single or three phase and have indoor and outdoor versions. QO Load Centers enable the use of a full complement of accessories. Indoor enclosures are designed to be rotated 180 degrees to accommodate top or bottom service entrance feed. This QO OEM plug on mounting base is for 200A 240 VAC 3 phase 3 wire systems. This QO OEM mounting base has a 10 kA breaking capacity. This product is for 24 spaces. This mounting base will accept only QO plug on circuit breakers. The studs will accept a wire range of 4 AWG to 300 kcmil copper or aluminum wire. QO OEM bases is UL component recognized.
QTY
  • Product Description
  • Features
  • Specifications
QO Load Centers offer premium features like QO breakers, ground arc fault interrupters and surge arresters. QO load centers are designed for residential and industrial use to protect electrical systems, equipment and people. Systems are single or three phase and have indoor and outdoor versions. QO Load Centers enable the use of a full complement of accessories. Indoor enclosures are designed to be rotated 180 degrees to accommodate top or bottom service entrance feed. This QO OEM plug on mounting base is for 200A 240 VAC 3 phase 3 wire systems. This QO OEM mounting base has a 10 kA breaking capacity. This product is for 24 spaces. This mounting base will accept only QO plug on circuit breakers. The studs will accept a wire range of 4 AWG to 300 kcmil copper or aluminum wire. QO OEM bases is UL component recognized.
  • Features
    • Provides superior performance and durability
    • Straight in wiring saves wire, labor, and time
    • Faster installation using PoN breakers that connect directly
    • 50% more terminations for clutter-free wiring
    • Complies with UL 67 listed, CSA, and IEC standards
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Conformance Attributes
    • Product Certifications : UL Listed
  • Complementary Attributes
    • Line Rated Current : 200 A
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Legacy WEEE Scope : In
    • Scope Perimeter : Outside of Europe
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Compliant
    • ROHS EUR Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • Persona Type Ids : OM
    • Persona Type Names : Original Equipment Manufacturer
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : COMMERCIAL
    • Market Segmentation : Commercial
    • H And D Domain : Safety
    • H And D Subrange : COM
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : ENCLOSURES
    • H And D Enrichment Class 3 : Load centers (equipped)
    • H And D Enrichment Class 4 : Load center OEM interiors
    • AWG Gauge : AWG 4...300 kcmil copper or aluminium
    • Electrical Connection : studs, line
    • Energy Efficiency Optimized : False
    • Package Weight Lbs : 1.374 kg
    • Phase : 3 phase
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : mounting base
    • Range Of Product : QO
    • Returnability : No
    • Short Circuit Current : 10 kA
    • Sustainable Packaging : No
    • Medium Desc : Load center interior, QO, mounting base, 3 phase, 24 spaces, 200A main studs, OEM
    • Stocking Flag : Y
    • Product Kit Identifier : N
    • Global Commercial Status : Commercialised
  • Environment Attributes Main
    • China ROHS Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Ambient Air Temperature For Operation : -5 °C, 40 °C
    • EU ROHS Directive : Compliant , Compliant
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • General Attributes
    • Phase : 3 phase
    • Product Or Component Type : mounting base
    • Range Of Product : QO
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Depth : 343 mm
