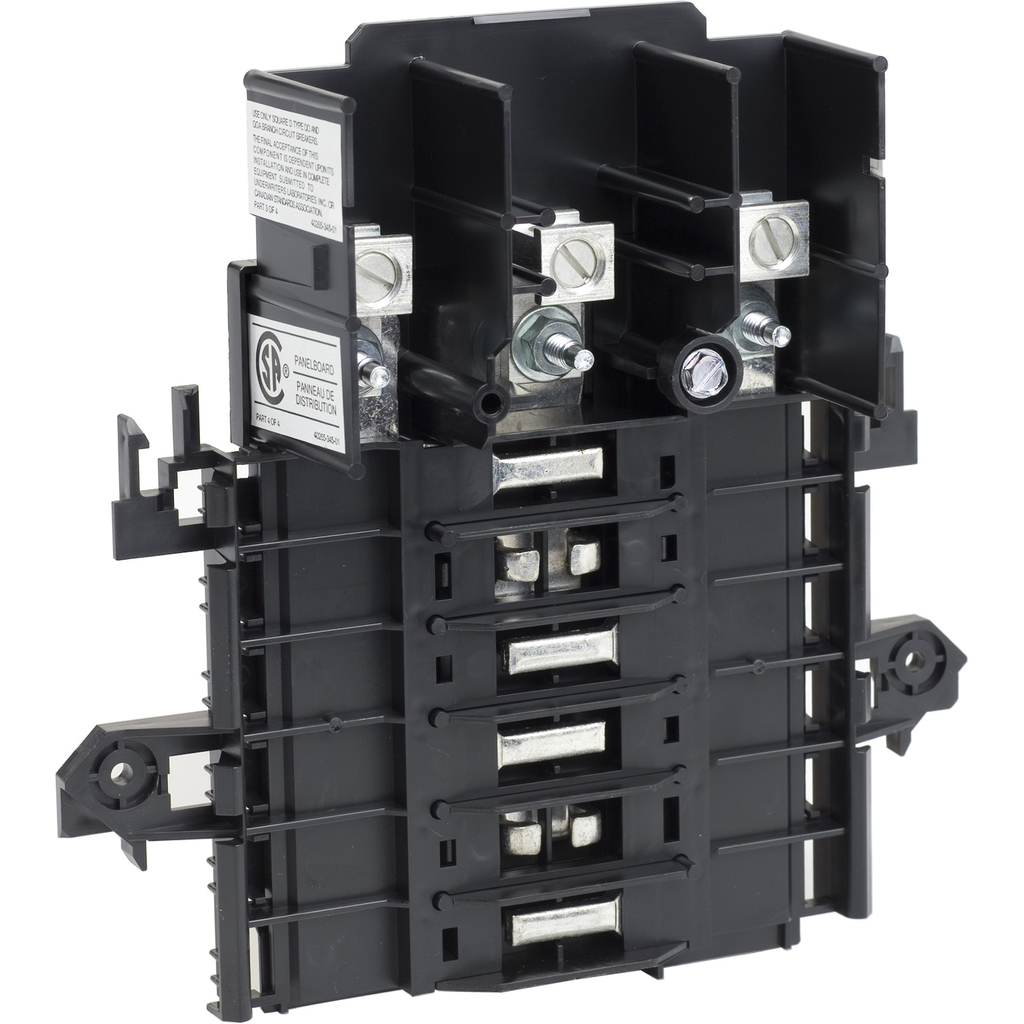

Load center interior, QO, mounting base, 3 phase, 12 spaces, 125A main lugs, OEM

OEM MTG BASE QO MLO 240V 125A

SQDQON312L125 QON312L125 785901868248
257.92 / EACH
http://schema.org/OutOfStock
Load center interior, QO, mounting base, 3 phase, 12 spaces, 125A main lugs, OEM
  • Country of Origin: USA
  • Depth: 77 mm
  • Height: 204 mm
  • Net Weight: 0.680 kg
  • Number of Spaces: 12
  • Short Circuit Current Rating: 10 kA
  • Warranty Length: 18 mth
  • Weight: 0.680 kg
  • Width: 202 mm
QO Load Centers offer premium features like QO breakers, ground arc fault interrupters and surge arresters. QO load centers are designed for residential and industrial use to protect electrical systems, equipment and people. Systems are single or three phase and have indoor and outdoor versions. QO Load Centers enable the use of a full complement of accessories. Indoor enclosures are designed to be rotated 180 degrees to accommodate top or bottom service entrance feed. This QO OEM plug on mounting base is for 125A 240 VAC 3 phase 3 wire systems. This QO OEM mounting base has a 10 kA breaking capacity. This product is for 12 spaces. This mounting base will accept only QO plug on circuit breakers. The lugs will accept a wire range of 4 AWG to 2/0 AWG copper or aluminum wire. QO OEM bases is UL component recognized.
QTY
  • Product Description
  • Features
  • Specifications
QO Load Centers offer premium features like QO breakers, ground arc fault interrupters and surge arresters. QO load centers are designed for residential and industrial use to protect electrical systems, equipment and people. Systems are single or three phase and have indoor and outdoor versions. QO Load Centers enable the use of a full complement of accessories. Indoor enclosures are designed to be rotated 180 degrees to accommodate top or bottom service entrance feed. This QO OEM plug on mounting base is for 125A 240 VAC 3 phase 3 wire systems. This QO OEM mounting base has a 10 kA breaking capacity. This product is for 12 spaces. This mounting base will accept only QO plug on circuit breakers. The lugs will accept a wire range of 4 AWG to 2/0 AWG copper or aluminum wire. QO OEM bases is UL component recognized.
  • Prop 65
    • "WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2101006
    • Packaging Without Single Use Plastic : No
    • Toxic Heavy Metal Free : Yes
    • California Proposition 65 : "WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
    • Reach Free Of Svhc : Yes
    • Circularity Profile : N/A
    • Take-Back : No
    • Eu Rohs Directive : Compliant
  • Complementary
    • Product Certifications : UL || CSA
    • Height : 204 mm
    • Net Weight : 0.680 kg
    • Awg Gauge : AWG 4...AWG 2/0 aluminium/copper
    • Width : 202 mm
    • Depth : 77 mm
  • Specifications
    • Country of Origin : United States
    • Width : 202 mm
    • Height : 204 mm
    • Weight : 0.680 kg
    • Phase : 3 phase 3 wires
    • Range Of Product : QO
    • [Ue] Rated Operational Voltage : 120/240 V AC
    • Product Or Component Type : mounting base
    • Number Of Spaces : 12
    • Short-Circuit Current : 10 kA
    • Line Rated Current : 125 A
    • Load Center Type : main lugs
  • Contractual warranty
    • Warranty : 18 months
