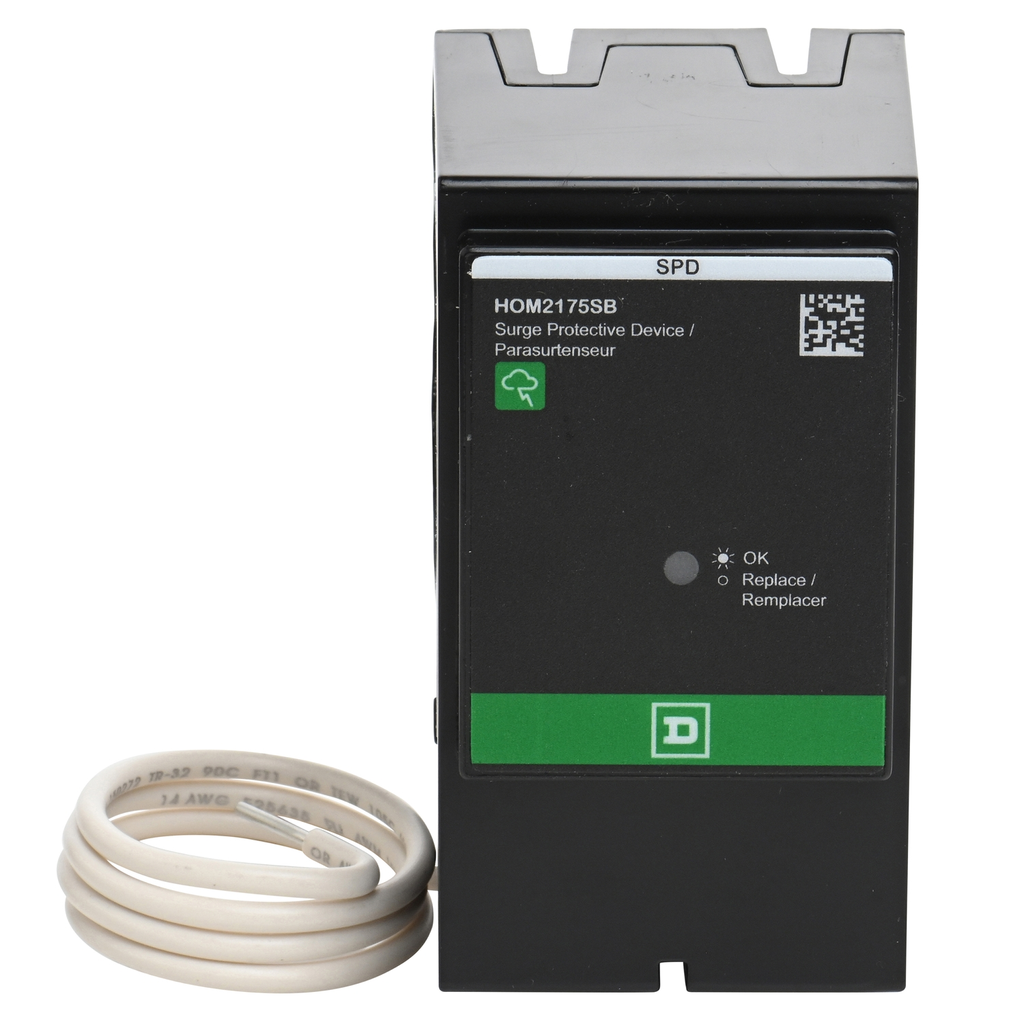

Square D™ Load Center Surge Protective Devices (SPDs) are plug-in units designed for fast and straightforward installation. The surge suppressors use two pole spaces in a Load center. SPD are single phase and are rated for use in an indoor or outdoor enclosure. Ideal for residential and light commercial use, these SPDs provide a dependable first layer of surge protection. This Surgebreaker is a secondary surge arrestor for Homeline load centers. It is designed to protect electrical service and major household appliances, excluding electronic devices. Designed for 3 wire 120/240 VAC single phase systems. Securing up to 25kA surge current per phase. This surge protection device is UL Listed. It has a plug on design and requires two pole positions. The LED indicator indicates operational status. The HOM Surgebreaker is UL Listed.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Line Rated Current : 10 kA
• Important Information Attributes
• Persona Type Ids : EU, EUA, LC, OM, SC
• Persona Type Names : End User, Consumer, Contractor, Original Equipment Manufacturer, Electrician
• [Uc] Maximum Continuous Operating Voltage : 150 V, 300 V
• Carbon Footprint Of The Distribution Phase [A4] : 0.0474043687, 0 kg CO2 eq.
• Carbon Footprint Of The End-of-life Phase [C1 To C4] : 0.1 kg CO2 eq., 0.1391706687
• Carbon Footprint Of The Installation Phase [A5] : 0.0035946829, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 3 kg CO2 eq., 3.3461159192
• Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 247 kg CO2 eq., 247.47
• Local Data Status : Publishable
• Local Publishable Date : 2026-03-25
• Return Indicator : Y
• Stocking Flag : N
• Stock Policy : 2
• Device Type : Surge Protection and Power Conditioning - Surge Protection Devices
• Serviceability : No
• Traceability : No
• Use Carbon Footprint : 247.47
• Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : Outside of Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2002007EN
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 2531
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : No
• With Recycled Cardboard : No
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : RESIDENTIAL
• Market Segmentation : Residential
• Product Kit Identifier : N
• Energy Efficiency Optimized : False
• Local Signalling : 1 LED green normal operation
• Phase : 1 phase
• Product Availability : Stock - Normally stocked in distribution facility
• Product Destination : load center Homeline
• Product Or Component Type : surge protection device
• Range Of Product : Homeline
• Returnability : Yes
• Software Version : EIME v5.8.1
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 251 kg CO2 eq.
• Wiring Configuration : 3-wire
• Database Version : 2016-11
• Pep Verification Date : 2020-04-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional-unit Description : Protect during 20 years against direct or indirect effects of lightning or against transient overvoltages electrical equipements connected to electrical networks with a rated operational voltage up to 120/240 Vac& 10-Comply with UL1449 standards& 10-Complies with requirements of NEC® Article 285,CSA 233.1-87,and CSA C22.2 No.8-M1986 as appropriate
• Functional-unit Quantity : 1
• Functional-unit Unit : unité (unit)
• Reference Lifetime, In Y : 20
• Energy Consumption On Product Lifetime, In Kwh : 357.408
• Energy Model - Manufacturing [A1-a3] : Energy model used: MEXICO
• Energy Model - Installation [A5] : Electricity mix; AC; 120V; US
• Energy Model - Use [B6] : Electricity mix; AC; 120V; US
• Energy Model - End Of Life [C1-c4] : Electricity mix; AC; 120V; US
• Height Nominal : 3.7 in
• Width Nominal : 2 in
• Certificate Agency : UL 1449:ed. 4: type II
• [Ue] Rated Operational Voltage : 120/240 V AC
• Short-circuit Protection : 25 kA
• Nbr. Of Units In Pkg. : 1
• Package Weight(Lbs) : 172.365 g
• Take-back : No
• Warranty (In Months) : 18
• Air Pollution (M3) Operational Energy Use [B6] : 21015
• Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] : 3013
• Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6] : 247.47
• Hazardous Waste Disposed Of (Kg) Operational Energy Use [B6] : 6.6164
• Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6] : 37.838
• Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] : 3131.4
• Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] : 3331.5
• Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] : 200.08
• Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] : 3131.4
• Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] : 200.08
• Water Pollution (M3) Operational Energy Use [B6] : 12200
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• Mercury Free : Yes
• Carbon Footprint : 251.0062856395
• Ambient Air Temperature For Operation : 65-65 °C
• Circularity Profile : ENVEOLI2002007EN
• Eu Rohs Directive : Compliant By Exemption
• Nema Degree Of Protection : NEMA 1
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : Yes
• Pep Verification Date : 2020-04-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Phase : 1 phase
• Product Or Component Type : surge protection device
• Range Of Product : Homeline
• Surge Protection And Filtering Attributes
• Surge Current : 25 kA
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico, United States, ZZ
• Depth : 2.6 in
