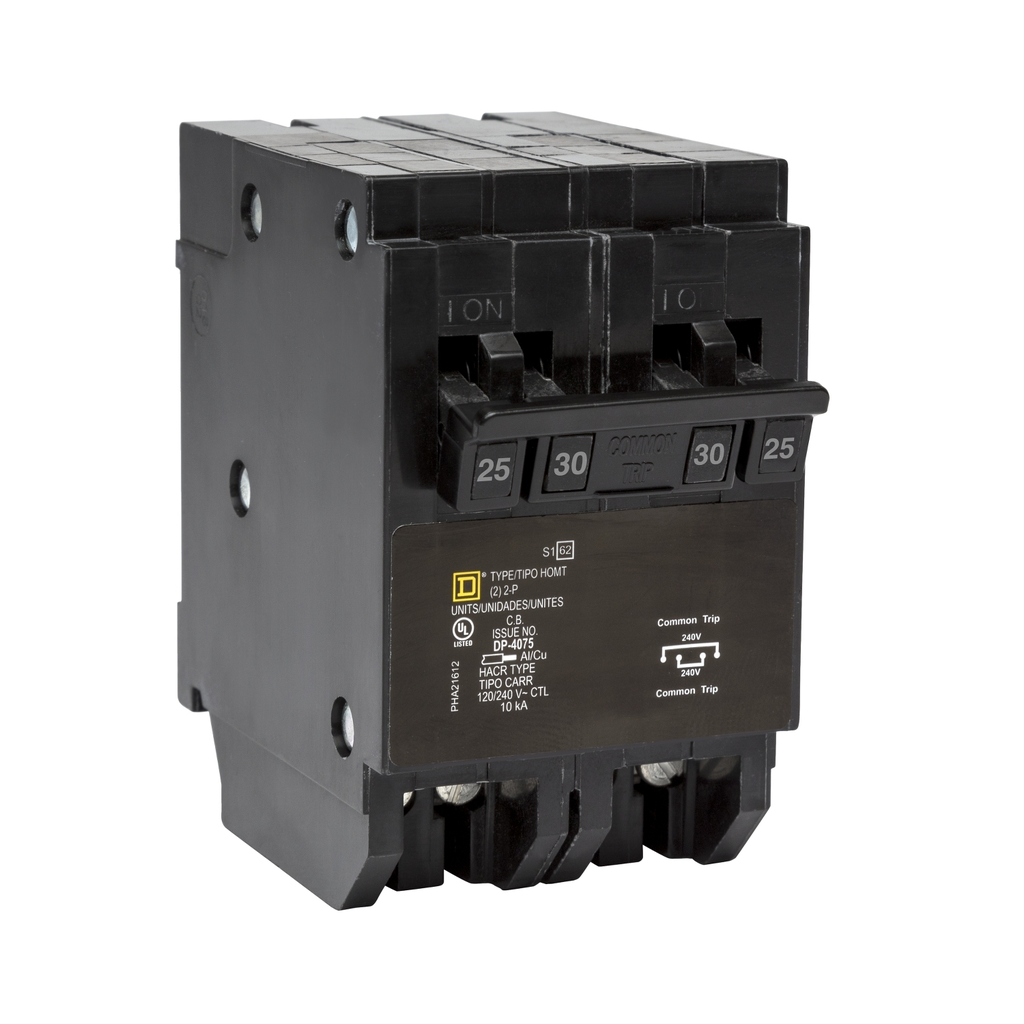

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. The HOMT circuit breaker is two tandem 2 pole thermal magnetic circuit breakers manufactured in tandem. This quad tandem breaker occupies two HOM pole spaces. This quad tandem circuit breaker consists of a two pole breaker and a two pole breaker. This quad tandem circuit breaker provides a standard circuit protection and is HACR rated. One of the two pole breaker is rated 25A at 120/240 VAC and other two pole breaker is rated 30A at 120/240 VAC. This circuit breaker provides 10 kA breaking capacity. The 2 pole breakers of this quad tandem breaker will accept 14 AWG to 8 AWG copper or aluminum wire. HOMT tandem breakers are UL Listed.

• Persona Type Names
• End User
• Contractor
• Persona Type Ids
• EU
• LC
• Tightening Torque
• 4.0-4.0 N.m 2.5-10 mm² (AWG 16...AWG 14)
• 4.0-4.0 N.m 4-20 mm² (AWG 12...AWG 4)
• AWG Gauge
• 1 x AWG 14...AWG 8 ( aluminium/copper )
• UE Rated Operational Voltage
• 120/240 V AC

• Important Information Attributes
• B2B Bullet Point 1 : Homeline MCBs provide value through their ease in installation, reliability, and superior circuit protection
• B2B Bullet Point 2 : Designed to protect against equipment overloads and short-circuits
• B2B Bullet Point 3 : Easy plug on design with Homeline Loadcenters
• B2B Bullet Point 4 : Commercially package and ready to be sold
• B2B Bullet Point 5 : Product characteristics conformity is certified by the Underwriters Laboratories (UL)
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-18
• HTML Description : Quad tandem mini circuit breaker, Homeline, 1 x 2 pole at 25A, 1 x 2 pole at 30A, 120/240 VAC, 10 kA AIR, plug in mount
• Manufacturer : Schneider Electric
• Device Type : LV equipment - Low voltage circuit breaker
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Legacy WEEE Scope : In
• WEEE Product Category : 4
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant
• ROHS EUR Conformity Date : 2534
• ROHS EUR Full Compliance Status : Compliant
• ROHS EUR Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• China ROHS Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : L - LOB initialized
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : RESIDENTIAL
• Market Segmentation : Residential
• H And D Domain : Safety
• H And D Subrange : RESI
• H And D Enrichment Assignment : no
• H And D Enrichment Function : MCB
• H And D Enrichment Class 3 : Circuit Breakers
• H And D Enrichment Class 4 : MCB UL 2P
• Circuit Breaker Type : quad tandem
• Energy Efficiency Optimized : False
• Number Of Spaces Required : 2.0
• Package Weight Lbs : 453.592 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : miniature circuit-breaker
• Range Of Product : Homeline
• Returnability : Yes
• Sustainable Packaging : Yes
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Pep Code : ENVPEP1308001
• Nbr Of Units In Pkg : 1
• Warranty In Months : 18
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=469269252&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP1308001
• EU ROHS Directive : Compliant
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1308001
• General Attributes
• Product Or Component Type : miniature circuit-breaker
• Range Of Product : Homeline
• Specifications
• Country of Origin : Mexico
