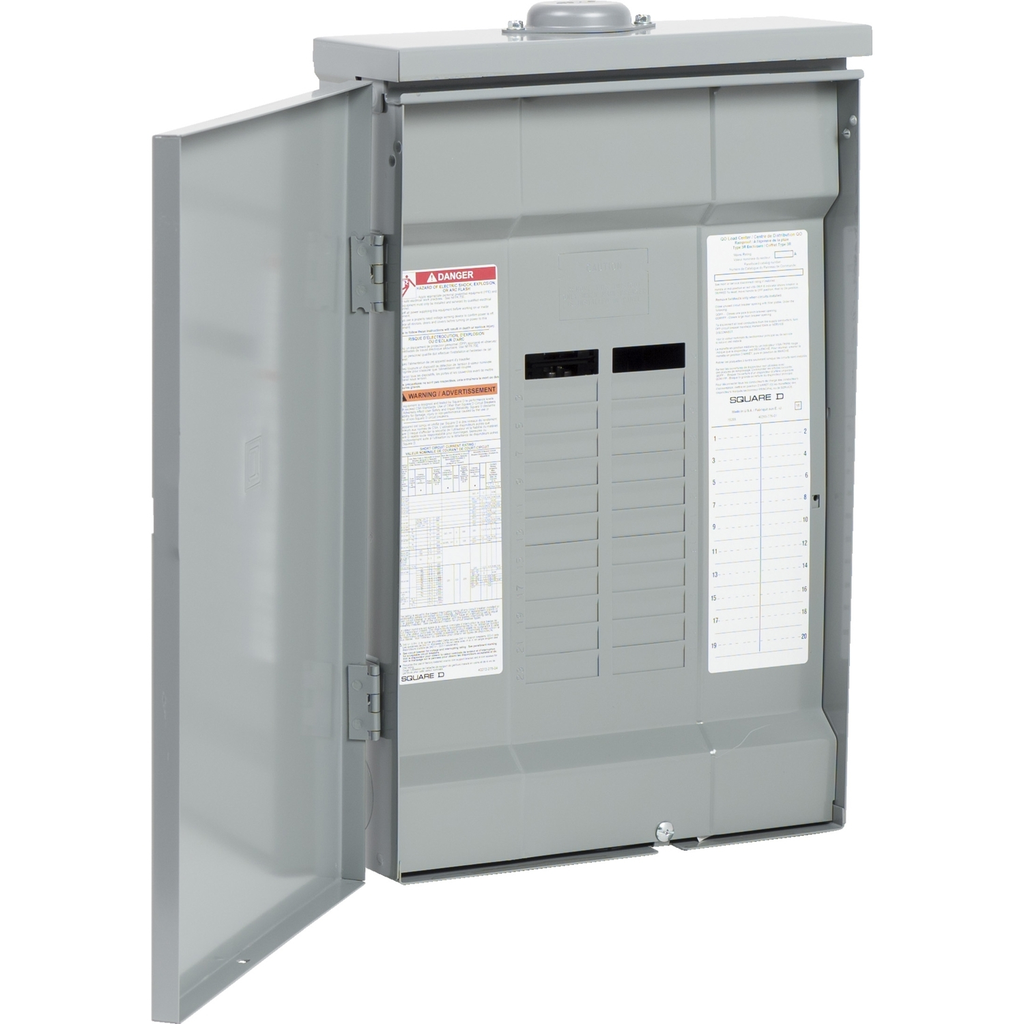

Load center, QO, 3 phase, 20 spaces, 20 circuits, 125A convertible main lugs, NEMA3R, CSA

LDCTR QO MLO 240V 125A 3PH 20S

SQDQO320ML1RB QO320ML1RB 785901751083
635.43 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Load center, QO, 3 phase, 20 spaces, 20 circuits, 125A convertible main lugs, NEMA3R, CSA-1
  • Country of Origin: USA
  • Cover Type: Surface Cover
  • Depth: 4.54 in
  • Enclosure Material: Steel
  • Height: 22.70 in
  • Number of Circuits: 40
  • Number of Spaces: 20
  • Warranty Length: 18 mth
  • Width: 14.72 in
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 20 spaces and 20 circuits. This system provides 125A convertible main lugs in a NEMA 3R enclosure. This product is CSA and UL rated.
QTY
  • Product Description
  • Specifications
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 20 spaces and 20 circuits. This system provides 125A convertible main lugs in a NEMA 3R enclosure. This product is CSA and UL rated.
  • Complementary
    • Height : 22.70 in
    • Phase : 3 phase 4 wires
    • Tightening Torque : main lugs 50 lb.in, AWG 4...AWG 2/0, aluminium/copper
    • Electrical Connection : lugs
    • Number Of Circuits : 40
    • Number Of Spaces : 20
    • Line Rated Current : 125 A
    • Enclosure Material : welded galvannealed steel
    • Width : 14.72 in
    • Depth : 4.54 in
    • Load Center Type : main lugs
    • Device Composition : grounding bar (ordered separately)
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2212001
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Circularity Profile : N/A
    • Take-Back : No
    • Eu Rohs Directive : Compliant with Exemptions
  • Contractual warranty
    • Warranty : 18 months
  • Specifications
    • Country of Origin : United States
    • Width : 14.72 in
    • Height : 22.70 in
    • Range Of Product : QO
    • Product Or Component Type : Load Center
    • Cover Type : surface cover
