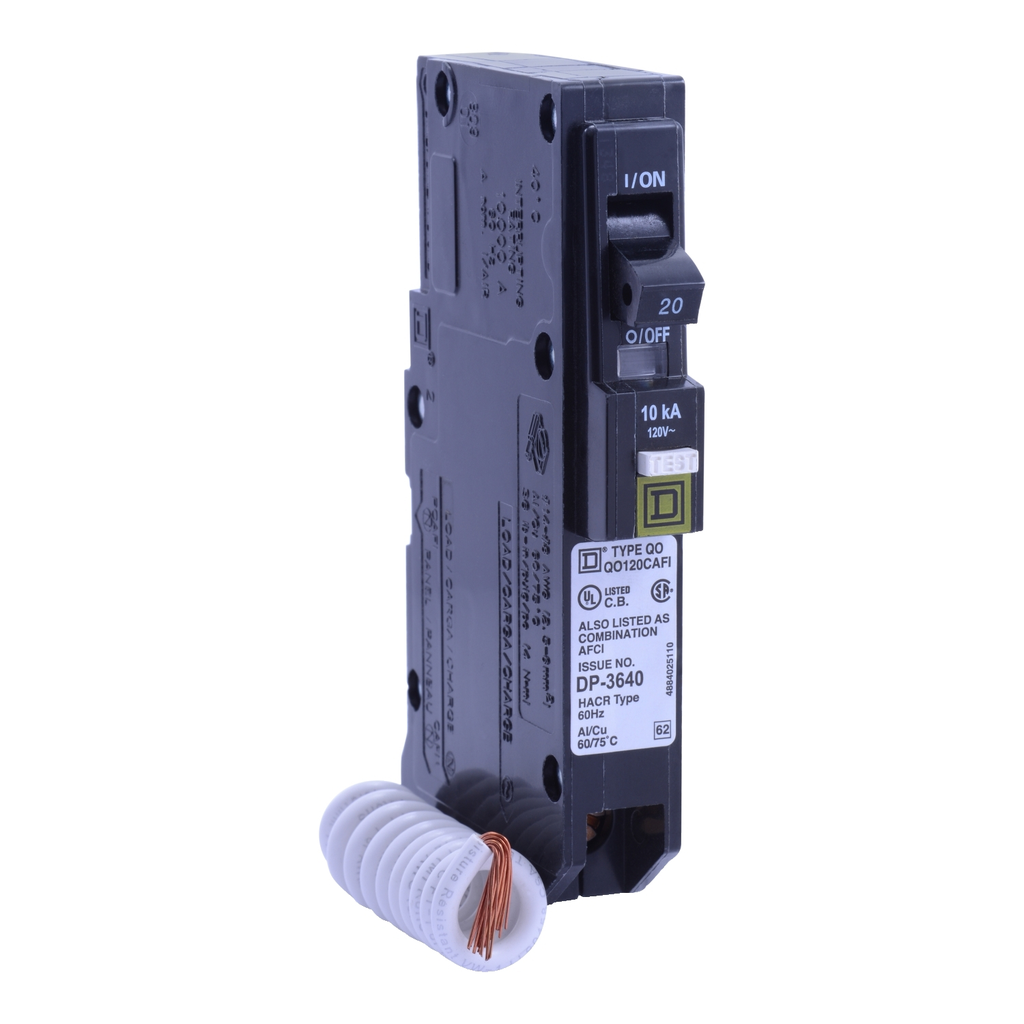

Mini circuit breaker, QO, 20A, 1 pole, 120/240VAC, 10kA, combo arc fault, pigtail, plug in mount

1 POLE 20A COMBO ARC FAULT

SQDQO120CAFI QO120CAFI 785901438359
65.82 / EACH
http://schema.org/OutOfStock
  • Certifications: CSA, UL Listed
  • Circuit Breaker Type: Combination ARC-fault
  • Depth: 74 mm
  • Height: 121 mm
  • Line Rated Current: 20 A
  • Mounting Type: Plug-In
  • Net Weight: 0.227 kg
  • Warranty Length: 18 mth
  • Width: 19 mm
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 1 pole QO circuit breaker is rated at 20A at 120/240VAC. This unit provides 10kA breaking capacity and is plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes a combination arc fault with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
QTY
  • Product Description
  • Specifications
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 1 pole QO circuit breaker is rated at 20A at 120/240VAC. This unit provides 10kA breaking capacity and is plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes a combination arc fault with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
  • Environment
    • Product Certifications : UL Listed || CSA
    • Ambient Air Temperature For Operation : 40 °C
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2212005
    • Sustainable Offer Status : Green Premium product
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Circularity Profile : ENVEOLI2212005
    • Eu Rohs Directive : Compliant with Exemptions
  • Complementary
    • Height : 121 mm
    • Tightening Torque : 4-4 N.m
    • Number Of Spaces Required : 1
    • Net Weight : 0.227 kg
    • Breaking Capacity : 10 kA 120/240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz
    • Awg Gauge : AWG 14...AWG 8 copper || AWG 12...AWG 8 aluminium
    • Width : 19 mm
    • Depth : 74 mm
  • Specifications
    • Connections - Terminals : pigtail neutral
    • Circuit Breaker Type : combination ARC-fault
    • Range Of Product : QO
    • Product Or Component Type : miniature circuit-breaker
    • Circuit Breaker Application : HACR rated
    • Mounting Mode : plug-in
    • Poles Description : 1P
    • Electrical Connection : pressure plate
    • Line Rated Current : 20 A
    • [Ue] Rated Operational Voltage : 120/240 V AC || 120 V AC
