Main breaker, QO, 60A, 2 pole, 120/240VAC, 22kA, bolt on

SQD QOM60VH MINIATURE CIRCUIT

SQDQOM60VH QOM60VH 785901879602
112.20 / EACH
http://schema.org/OutOfStock

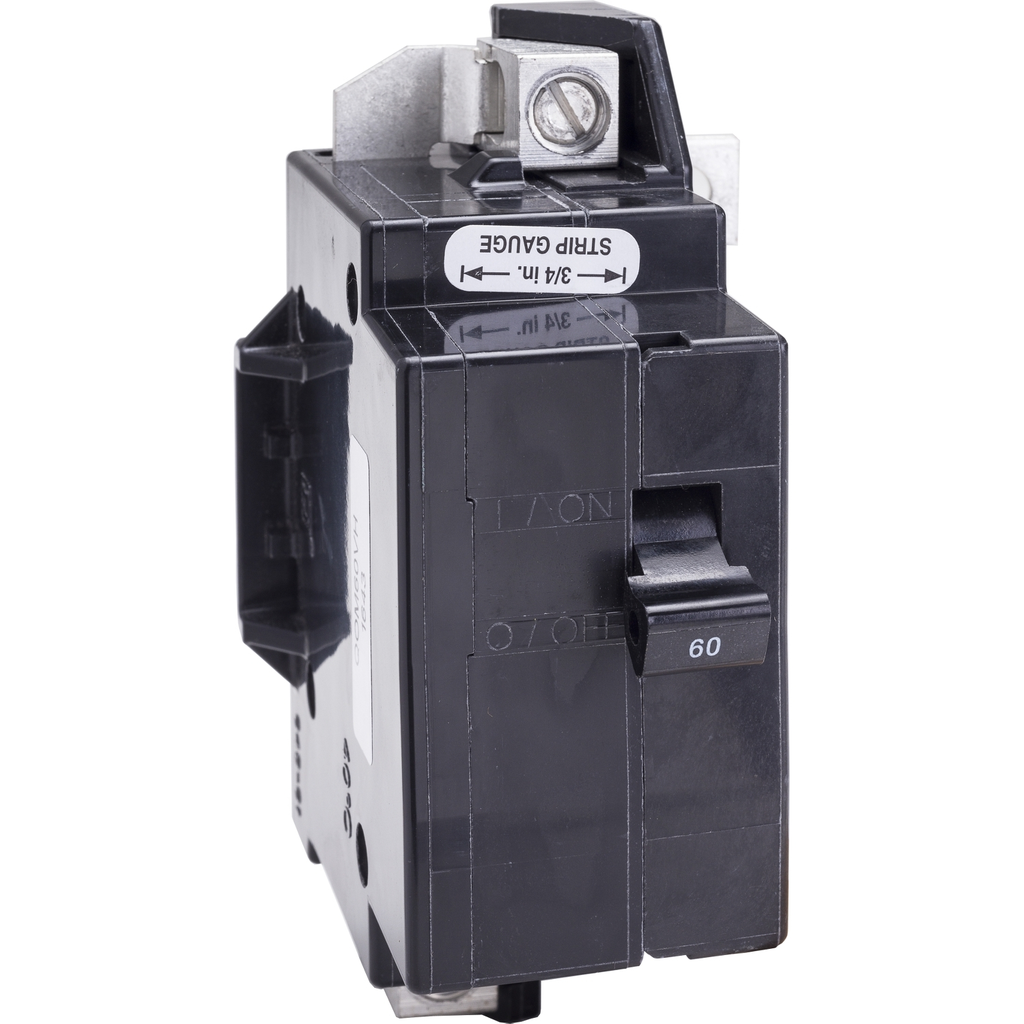

Mayer-DDS-Main breaker, QO, 60A, 2 pole, 120/240VAC, 22kA, bolt on-2
  • Depth: 127 mm
  • Height: 129 mm
  • Net Weight: 0.562 kg
  • Warranty Length: 18 mth
  • Weight: 0.562 kg
  • Width: 88 mm
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO main breaker is rated at 60A at 120/240VAC. This unit provides 22kA breaking capacity and bolt on mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
QTY
  • Product Description
  • Specifications
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO main breaker is rated at 60A at 120/240VAC. This unit provides 22kA breaking capacity and bolt on mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
  • Environment
    • Product Certifications : UL Listed || CSA
    • Ambient Air Temperature For Operation : 40 °C
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Packaging Without Single Use Plastic : No
    • Scip Number : 770cc9ea-53d2-4d3d-a57a-062b35abd847
    • Take-Back : No
    • Eu Rohs Directive : Compliant with Exemptions
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 250.8716656506
  • Complementary
    • Height : 129 mm
    • Tightening Torque : 6-6 N.m 4-65 mm² (AWG 12...AWG 2/0)
    • Phase : 1 phase
    • Net Weight : 0.562 kg
    • Product Destination : QO load center || Homeline load center
    • Breaking Capacity : 22 kA 120/240 V AC
    • Awg Gauge : AWG 4...AWG 2/0 aluminium/copper
    • Width : 88 mm
    • Depth : 127 mm
    • Load Center Type : main breaker
  • Specifications
    • Country of Origin : Mexico
    • Width : 88 mm
    • Height : 129 mm
    • Weight : 0.562 kg
    • Circuit Breaker Type : standard
    • Range Of Product : QO
    • Product Or Component Type : miniature circuit-breaker
    • Mounting Mode : bolt-on
    • Poles Description : 2P
    • Electrical Connection : lugs
    • Line Rated Current : 60 A
    • Device Short Name : QOM1
    • [Ue] Rated Operational Voltage : 120/240 V AC
