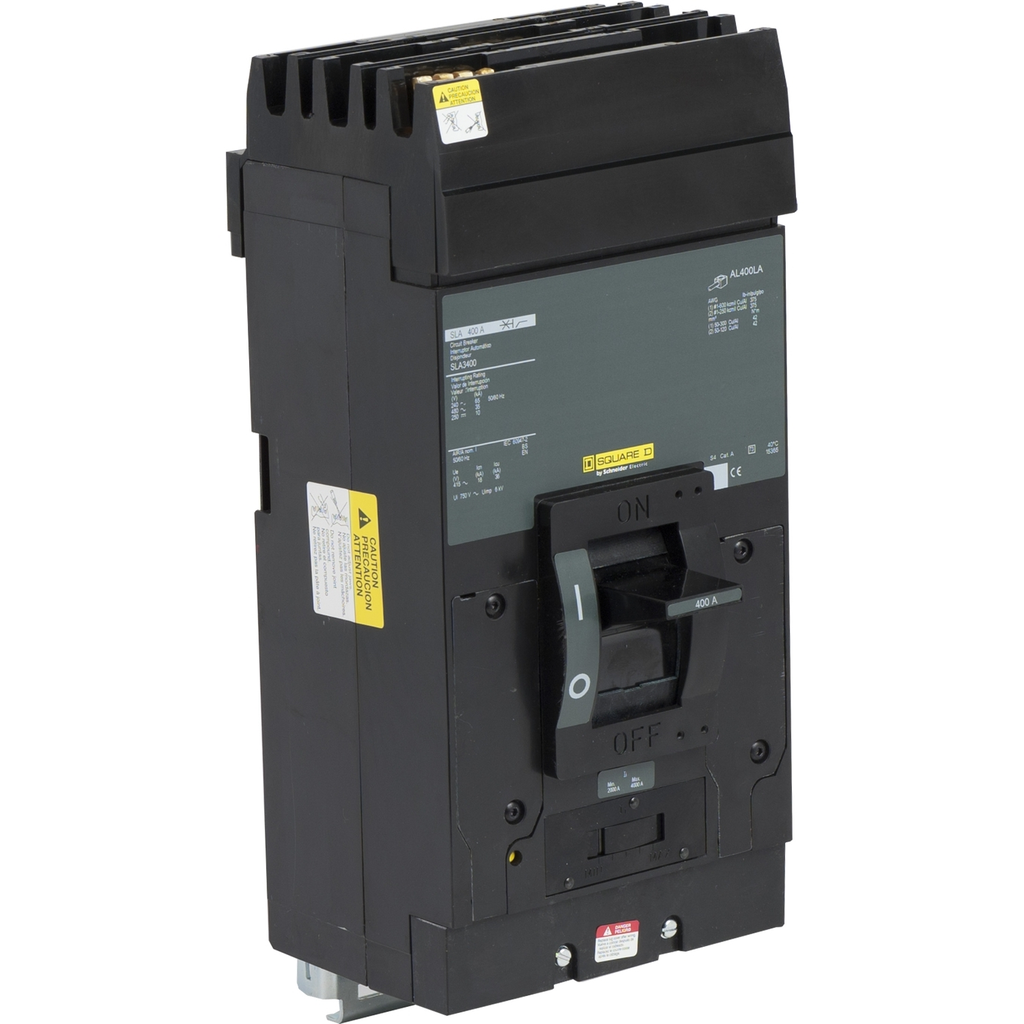

Circuit breaker, SLA, 415/240V, 400A, 3 pole

MOLDED CASE CB 415/240V 400A

SQDSLA3400 SLA3400 785901572152
4944.00 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Circuit breaker, SLA, 415/240V, 400A, 3 pole-1
  • Country of Origin: Mexico
  • Depth: 19.9 in
  • Height: 12.6 in
  • Warranty Length: 18 mth
  • Width: 12.5 in
Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® (UL®) Listed under File E33139. The following are suitable for use as service entrance equipment such as all main circuit breaker panelboards. I-Line circuit breaker panelboards are available as 400–1200 A main lugs only and 100–1200 A main circuit breakers. I-Line circuit breaker panelboards are designed, manufactured, and tested to comply to UL, CSA, NFPA, NEMA & W-P standards. This Square D, circuit breaker is a 3P breaker with a rated current of 400A. This product has a breaking capacity of 36kA@415/240VAC. This breaker has a thermal-magnetic trip unit technology. This product complies to IEC & CE listed standards.
QTY
  • Product Description
  • Features
  • Specifications
Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® (UL®) Listed under File E33139. The following are suitable for use as service entrance equipment such as all main circuit breaker panelboards. I-Line circuit breaker panelboards are available as 400–1200 A main lugs only and 100–1200 A main circuit breakers. I-Line circuit breaker panelboards are designed, manufactured, and tested to comply to UL, CSA, NFPA, NEMA & W-P standards. This Square D, circuit breaker is a 3P breaker with a rated current of 400A. This product has a breaking capacity of 36kA@415/240VAC. This breaker has a thermal-magnetic trip unit technology. This product complies to IEC & CE listed standards.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : IEC || CE
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2206029_V2
    • Halogen Content Performance : Halogen free plastic parts product
    • Packaging Without Single Use Plastic : Yes
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Scip Number : 45160aaa-1457-439f-bca7-7bd5246ac23e
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : ENVEOLI2206029_V2
    • Take-Back : No
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 739.3949682892573
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 49.671357924070975
    • Carbon Footprint Of The Distribution Phase [A4] : 2 kg CO2 eq.
    • Pvc Free : Yes
    • Carbon Footprint Of The Installation Phase [A5] : 2 kg CO2 eq.
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 805 kg CO2 eq.
    • Eu Rohs Directive : Compliant with Exemptions
    • Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 11.67639778652332
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 805.1207474371142
  • Complementary
    • Terminal Identifier : AL400LA
    • Height : 12.6 in
    • Tightening Torque : 13-13 N.m 42-304 mm² (AWG 1...600 kcmil) || 13-13 N.m 42-127 mm² (AWG 1...250 kcmil)
    • Breaking Capacity Code : A
    • Magnetic Tripping Current : 4000-4000 A
    • Electrical Connection : lugs, load || I-Line connection, line
    • Magnetic Hold Current : 2000 A
    • Mounting Mode : I-Line
    • Poles Description : 3P
    • Line Rated Current : 400 A
    • Width : 12.5 in
    • Depth : 19.9 in
  • Specifications
    • Country of Origin : Mexico
    • Width : 12.5 in
    • Height : 12.6 in
    • Trip Unit Technology : thermal-magnetic
    • Product Or Component Type : circuit breaker
