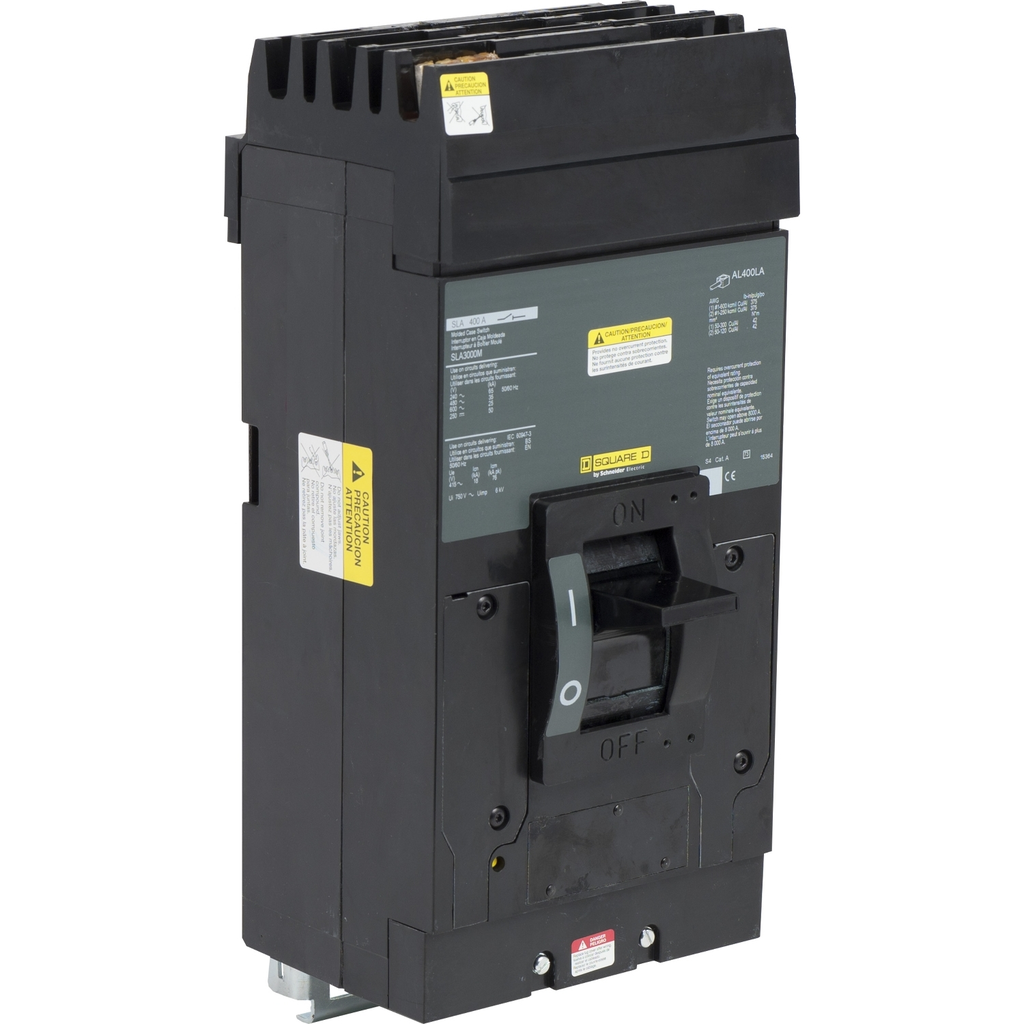

Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® (UL®) Listed under File E33139. The following are suitable for use as service entrance equipment such as all main circuit breaker panelboards. I-Line circuit breaker panelboards are available as 400–1200 A main lugs only and 100–1200 A main circuit breakers. I-Line circuit breaker panelboards are designed, manufactured, and tested to comply to UL, CSA, NFPA, NEMA & W-P standards. This Square D, Automatic Switch is 3 pole with a rated current of 400A. This product has a breaking capacity code A. This product complies to IEC & CE listed standards.

• Prop 65
• WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Environment Attributes Main
• EU ROHS Directive : Compliant By Exemption​, Compliant with Exemptions
• ROHS Exemption Information : Yes
• Take Back : No
• Halogene Performance : Halogen free plastic parts product
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 805.1207474371142
• Circularity Profile : ENVEOLI2206029_V2
• Environmental Disclosure : ENVPEP2206029EN
• Halogen Content Performance : Halogen free plastic parts product
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2206029EN
• Pep Verification Date : 2028-08-05
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• Important Information Attributes
• Persona Type Ids : LC, OM, OM8, PB
• Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Electrical Connection : lugs, load, I-Line connection, line
• Tightening Torque : 13-13 N.m 42-304 mm² (AWG 1...600 kcmil), 13-13 N.m 42-127 mm² (AWG 1...250 kcmil)
• Carbon Footprint Of The Distribution Phase A4 : 2.228383327123949, 2 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 12 kg CO2 eq., 11.67639778652332
• Carbon Footprint Of The Installation Phase A5 : 2.1496401101385745, 2 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 50 kg CO2 eq., 49.671357924070975
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 739 kg CO2 eq., 739.3949682892573
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-13
• Device Type : LV equipment - LV switch - disconnector
• Serviceability : No
• Traceability : Yes
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2206029_V2
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Function Option Id : STANDARD
• Function Option : Standard
• Energy Efficiency Optimized : False
• Halogen Free Status : Halogen free plastic parts product
• Magnetic Hold Current : 2000 A
• Magnetic Tripping Current : 4000-4000 A
• Package Weight Lbs : 8.340 kg
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : automatic switch
• Returnability : Yes
• Sustainable Packaging : Yes
• Terminal Identifier : AL400LA
• Total Lifecycle Carbon Footprint : 805 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Pep Code : ENVPEP2206029EN
• Pep Verification Date : 2028-08-05
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• Functional Unit Description : Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
• Functional Unit Unit : unit
• Product Kit Identifier : N
• Product Manager : LUIS MANUEL MENDOZA
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• General Attributes
• Product Or Component Type : automatic switch
