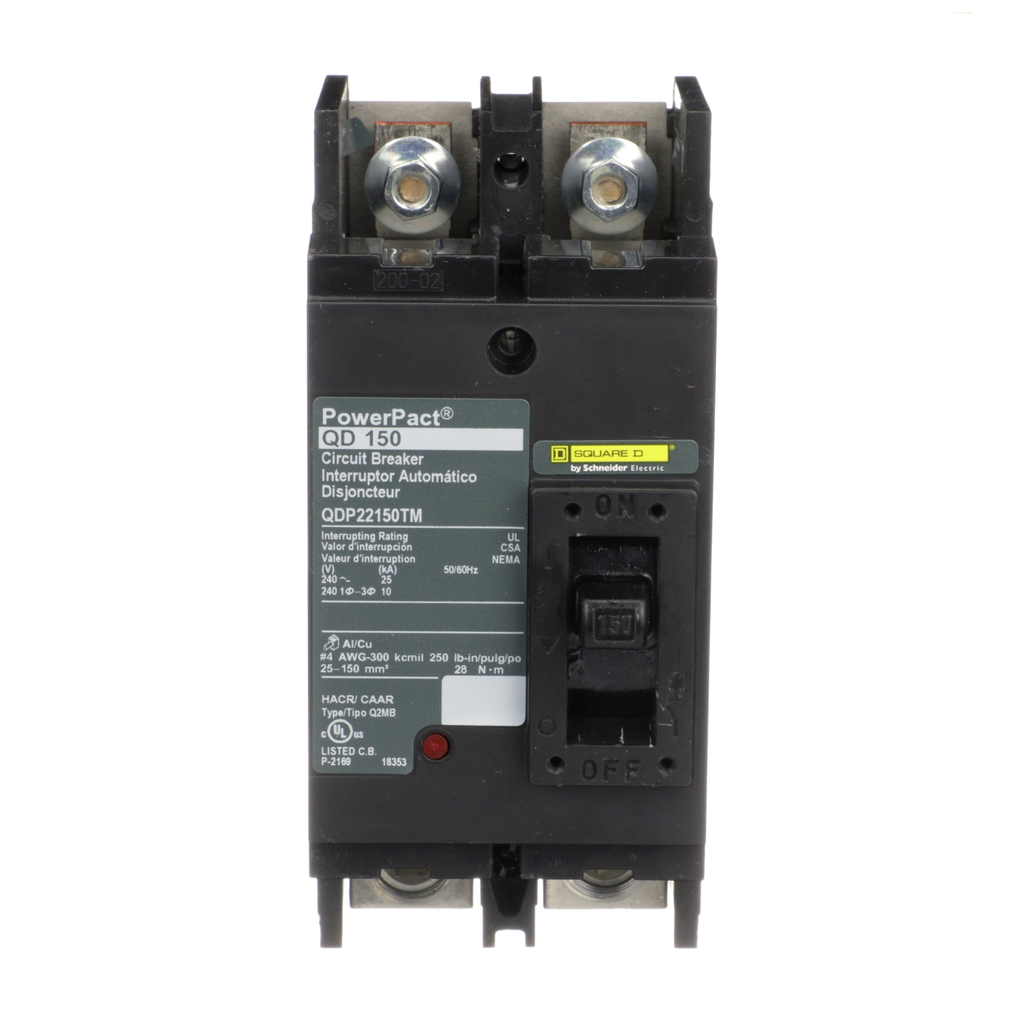

Circuit breaker, PowerPacT Q, 150A, 2 pole, 240VAC, 25kA, lugs, thermal magnetic, 80%, bottom of panel

SQD QDP22150TM MOLDED CASE CIR

SQDQDP22150TM QDP22150TM 785901662396
1091.42 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Circuit breaker, PowerPacT Q, 150A, 2 pole, 240VAC, 25kA, lugs, thermal magnetic, 80%, bottom of panel-2
  • Certifications: CSA, NOM, UL
  • Depth: 3.93 in
  • Height: 6.47 in
  • Line Rated Current: 150 A, 150-150 A
  • Mounting Type: Unit Mount Lug)
  • Standard: CSA, NEMA, NOM-003-SCFI-2000, UL
  • Strip Length: 22 mm
  • Trip Point: 2400-2400 A
  • Warranty Length: 18 mth
  • Width: 3.00 in
PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has terminal nuts on the line side and lugs on the load side. It has studs on line end with nuts and washers. This PowerPacT Q, 150A, 2 pole, circuit breaker has an interrupting rating of 25kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.
QTY
  • Product Description
  • Specifications
PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has terminal nuts on the line side and lugs on the load side. It has studs on line end with nuts and washers. This PowerPacT Q, 150A, 2 pole, circuit breaker has an interrupting rating of 25kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.
  • Environment
    • Ambient Air Temperature For Operation : 40-70 °C
    • Standards : UL || CSA || NEMA || NOM-003-SCFI-2000
    • Product Certifications : UL || CSA || NOM
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Eu Rohs Directive : Under investigation
  • Complementary
    • Circuit Breaker Application : HACR rated
    • Mounting Mode : unit mount lug)
    • Network Frequency : 50/60 Hz
    • Wire Stripping Length : 22 mm
    • Utilisation Category : category A
    • Line Rated Current : 150-150 A
    • Trip Unit Technology : thermal-magnetic
    • Height : 6.47 in
    • Continuous Current Rating : 80 %
    • Breaking Capacity : 25 kA 120/208 V AC 50/60 Hz UL || 25 kA 240 V AC 50/60 Hz UL
    • Mechanical Durability : 1000 cycles loaded || 5000 cycles no load
    • [Ue] Rated Operational Voltage : 240 V AC 50/60 Hz UL
    • Tightening Torque : 28-28 N.m 25-150 mm² (AWG 4...300 kcmil)
    • Mounting Support : lug
    • Breaking Capacity Code : D
    • Magnetic Tripping Current : 2400-2400 A
    • Poles Description : 2P
    • Local Signalling : 1 trip indicator green)
    • Line Rated Current : 150 A
    • Width : 3.00 in
    • Electrical Connection : terminal nut, line || lugs, load
    • Depth : 3.93 in
    • [Uimp] Rated Impulse Withstand Voltage : 8 kV UL
    • Magnetic Hold Current : 1200 A
    • Control Type : operating handle
  • Specifications
    • Product Or Component Type : circuit breaker
    • Product Name : PowerPact Q
    • Device Application : distribution
    • Range : PowerPact
