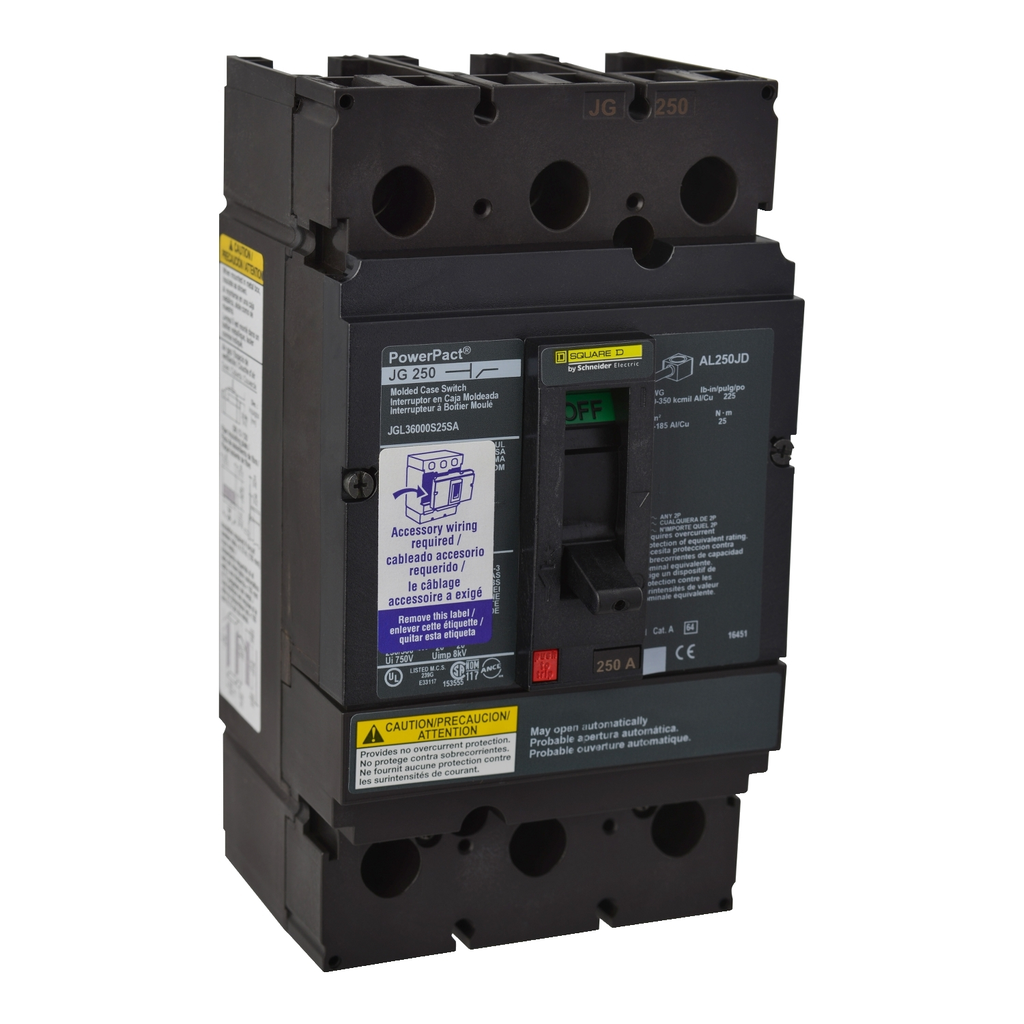

PowerPacT J-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the J-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. PowerPacT J-Frame switches are available in unit mount, I-Line, plug in, or drawout constructions. This switch has lugs on both the line and load sides. This PowerPacT J, 250A, 3 pole, automatic switch has a short circuit withstand current rating of 18kA at 600VAC. This unit includes a factory installed 120VAC shunt trip. PowerPacT J automatic switches comply to UL, CSA, ANCE, and IEC standards.

• Prop 65
• WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Environment
• Product Certifications : CE || UL Listed || CCC || CSA || NMX || IEC
• Contractual warranty
• Warranty : 18 months
• Environmental data
• Rohs Exemption Information : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP2206031EN
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Circularity Profile : ENVEOLI2206031EN
• Take-Back : No
• Pvc Free : Yes
• Eu Rohs Directive : Compliant with Exemptions
• Complementary
• Terminal Identifier : AL250JD
• Height : 7.52 in
• Tightening Torque : 26-26 N.m 95-185 mm² (AWG 3/0...350 kcmil)
• Breaking Capacity Code : G
• Magnetic Tripping Current : 3125-3125 A
• Electrical Connection : lugs, line || lugs, load
• Mounting Mode : unit mount
• Short-Circuit Withstand : 65 kA 240 V UL 489 || 35 kA 480 V UL 489 || 18 kA 600 V UL 489
• Poles Description : 3P
• Line Rated Current : 250 A
• Width : 4.12 in
• Depth : 5 in
• [Ue] Rated Operational Voltage : 600 V AC || 250 V DC
• Awg Gauge : x AWG 3/0...350 kcmil ( aluminium/copper )
• Specifications
• Country of Origin : United States
• Width : 4.12 in
• Height : 7.52 in
• Range Of Product : PowerPact J
• Accessory / Separate Part Type : shunt trip 120 V DC
• Product Or Component Type : automatic switch
• Trip Unit Technology : magnetic
