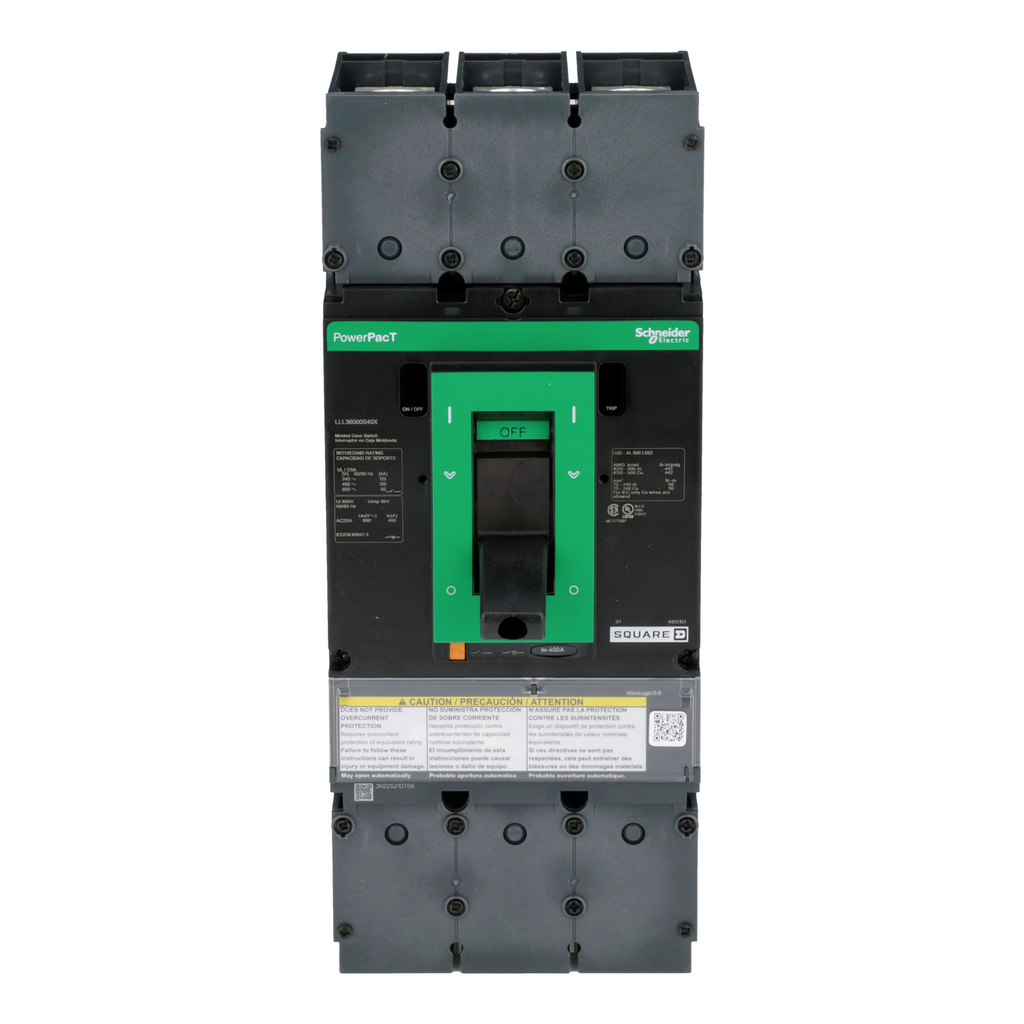

Automatic switch, PowerPact L, 400A, 3 pole, 600VAC, 50kA, lugs, magnetic

AUTOMATIC MOLDED CASE SWITCH 6

SQDLLL36000S40X LLL36000S40X 785901731689
6119.50 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Automatic switch, PowerPact L, 400A, 3 pole, 600VAC, 50kA, lugs, magnetic-2
  • Country of Origin: USA
  • Depth: 6.61 in
  • Height: 13.38 in
  • Warranty Length: 18 mth
  • Width: 5.51 in
PowerPacT L-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the L-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. PowerPacT L-Frame switches are available in unit mount, I-Line, plug in, or drawout constructions. This switch has lugs on both the line and load sides. This PowerPacT L, 400A, 3 pole, automatic switch has a short circuit withstand current rating of 50kA at 600VAC. PowerPacT L automatic switches comply to UL, CSA, ANCE, and IEC standards.
QTY
  • Product Description
  • Features
  • Specifications
PowerPacT L-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the L-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. PowerPacT L-Frame switches are available in unit mount, I-Line, plug in, or drawout constructions. This switch has lugs on both the line and load sides. This PowerPacT L, 400A, 3 pole, automatic switch has a short circuit withstand current rating of 50kA at 600VAC. PowerPacT L automatic switches comply to UL, CSA, ANCE, and IEC standards.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : CSA || IEC || UL Listed
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Packaging Made With Recycled Cardboard : Yes
    • Environmental Disclosure : ENVPEP2206029_V1
    • Packaging Without Single Use Plastic : No
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : ENVEOLI2206029EN
    • Take-Back : No
    • Pvc Free : Yes
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 1626.1956279751
  • Complementary
    • Terminal Identifier : AL600LS52K3
    • Height : 13.38 in
    • Tightening Torque : 50-50 N.m 70-240 mm² (AWG 2/0...500 kcmil)
    • Breaking Capacity Code : L
    • Magnetic Tripping Current : 4800-4800 A
    • Electrical Connection : lugs, line || lugs, load
    • Mounting Mode : unit mount
    • Short-Circuit Withstand : 125 kA 240 V UL 489 || 100 kA 480 V UL 489 || 50 kA 600 V UL 489
    • Poles Description : 3P
    • Line Rated Current : 400 A
    • Width : 5.51 in
    • Depth : 6.61 in
    • [Ue] Rated Operational Voltage : 600 V AC
    • Awg Gauge : x AWG 2/0...500 kcmil ( aluminium/copper )
  • Specifications
    • Country of Origin : United States
    • Width : 5.51 in
    • Height : 13.38 in
    • Range Of Product : PowerPact L
    • Circuit Breaker Type : L-Frame
    • Product Or Component Type : automatic switch
    • Trip Unit Technology : magnetic
