Mini circuit breaker accessory, lug kit, 125A, 2 pole, 2 spaces, subfeed

CIRCUIT BREAKER SUB FEED LUG D

SQDQOB2125SL QOB2125SL 785901031352
185.58 / EACH
http://schema.org/OutOfStock
  • Country of Origin: Mexico
  • Depth: 2.310 in
  • Height: 3.5 in
  • Number of Poles: 2
  • Number of Spaces: 2
  • Warranty Length: 18 mth
  • Width: 1.494 in

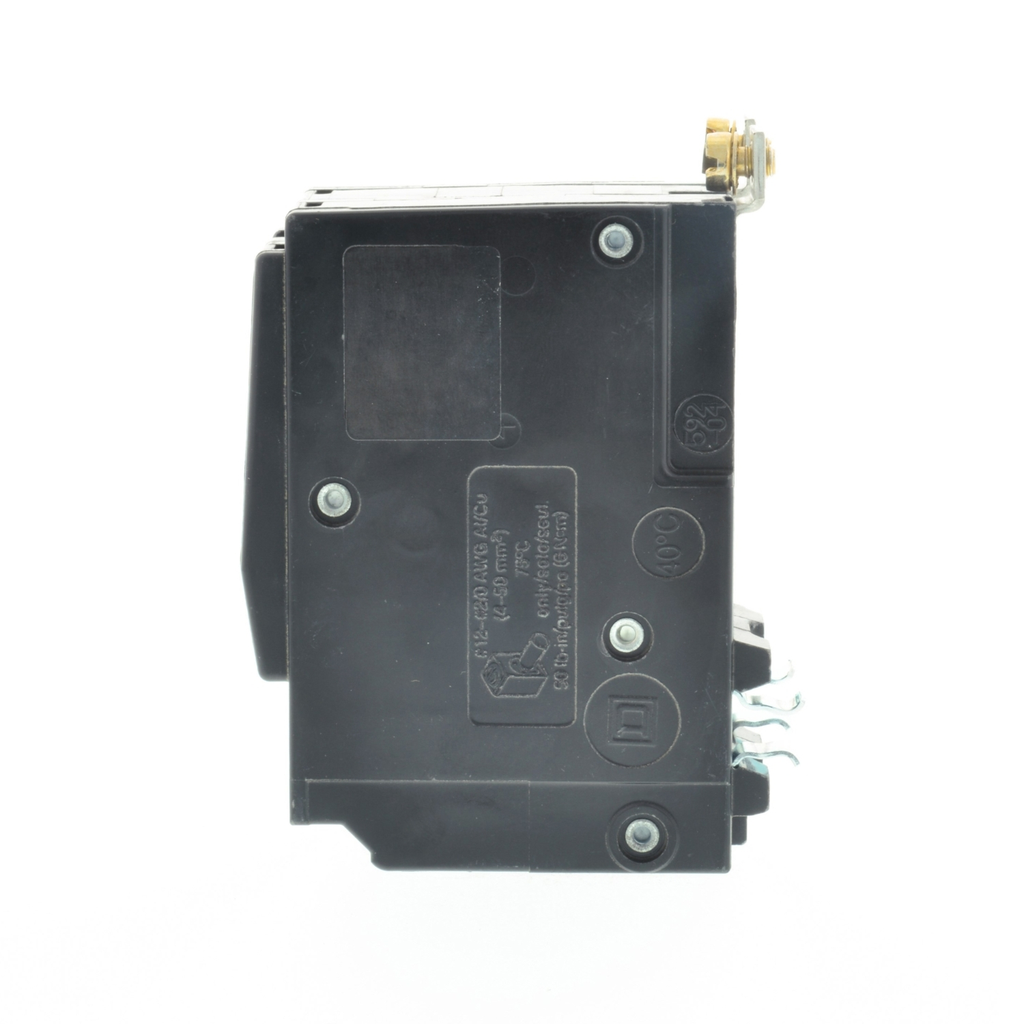

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This QOB miniature circuit breaker two pole subfeed lug kit is rated 125 A at 240 VAC. Two spaces are required when this kit is used. Lugs will accept 12 AWG to 2/0 AWG aluminum or copper wire. The breaker is 3.50 inches tall, 1.494 inches wide and 2.31 inches deep. The lug kit is UL component recognized and CSA certified.
QTY
  • Product Description
  • Specifications
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This QOB miniature circuit breaker two pole subfeed lug kit is rated 125 A at 240 VAC. Two spaces are required when this kit is used. Lugs will accept 12 AWG to 2/0 AWG aluminum or copper wire. The breaker is 3.50 inches tall, 1.494 inches wide and 2.31 inches deep. The lug kit is UL component recognized and CSA certified.
  • Environment
    • Ambient Air Temperature For Operation : -5 °C || 40 °C
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2111016
    • Halogen Content Performance : Halogen free product
    • Packaging Without Single Use Plastic : Yes
    • Toxic Heavy Metal Free : Yes
    • Scip Number : af42fb01-813d-40c0-ae28-b8b3299dbc99
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Reach Free Of Svhc : Yes
    • Circularity Profile : N/A
    • Take-Back : No
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 17.3042434783
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 1.6167676988
    • Carbon Footprint Of The Distribution Phase [A4] : 0 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase [A5] : 0 kg CO2 eq.
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 19 kg CO2 eq.
    • Eu Rohs Directive : Compliant
    • Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0.0505811781
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 19.0073610951
  • Complementary
    • Product Certifications : CSA || cURus
    • Height : 3.500 in
    • Mounting Mode : bolt-on
    • Awg Gauge : AWG 12...AWG 2/0 copper or aluminium
    • Width : 1.494 in
    • Depth : 2.310 in
    • Number Of Poles : 2
  • Specifications
    • Country of Origin : Mexico
    • Width : 1.494 in
    • Height : 3.500 in
    • Phase : 2 phases
    • Range Of Product : QO
    • [Ue] Rated Operational Voltage : 240 V AC
    • Product Or Component Type : lug kit
    • Number Of Spaces : 2
    • Line Rated Current : 125 A
