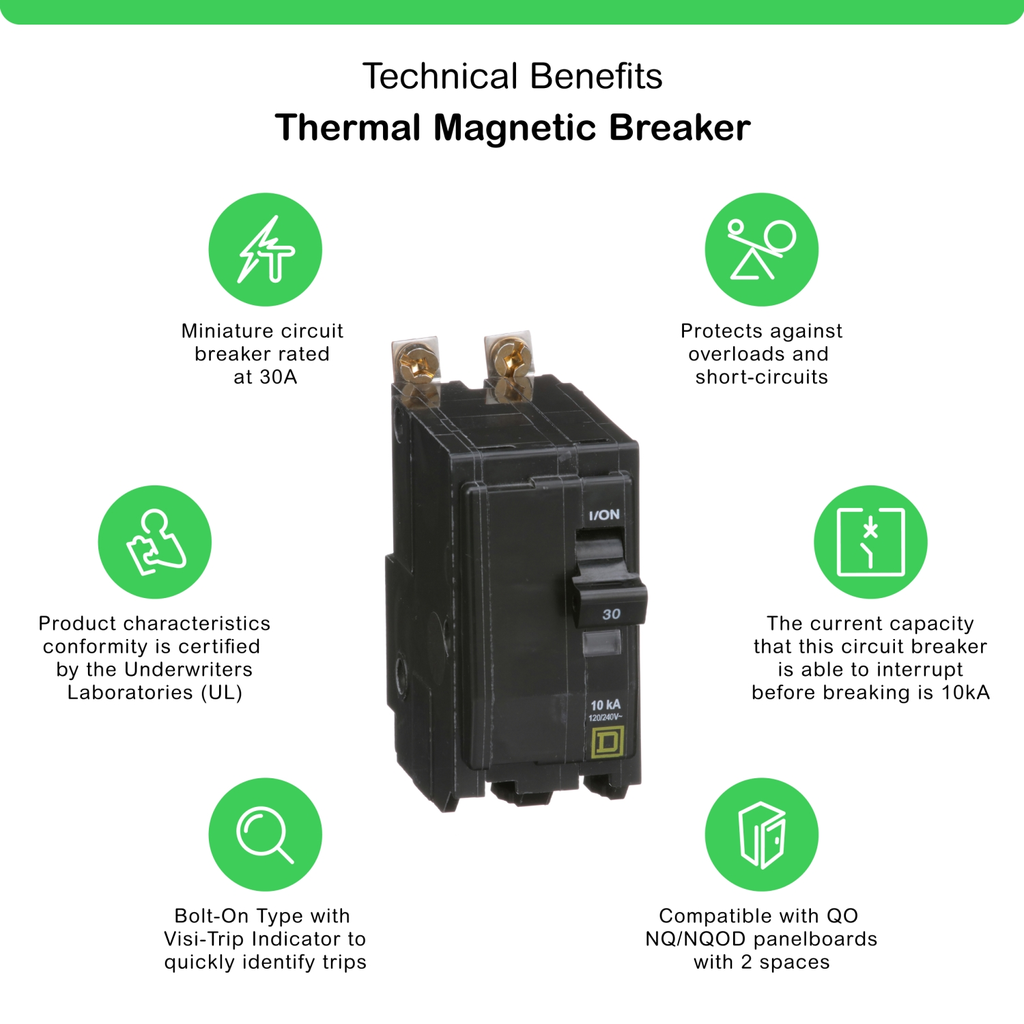

Mini circuit breaker, QO, 30A, 2 pole, 120/240VAC, 10kA, bolt on

BREAKER - 2P 120/240V 30A

SQDQOB230 QOB230 785901416906
94.22 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Mini circuit breaker, QO, 30A, 2 pole, 120/240VAC, 10kA, bolt on-2
  • Depth: 74 mm
  • Height: 76 mm
  • Net Weight: 0.249 kg
  • Warranty Length: 18 mth
  • Weight: 0.249 kg
  • Width: 38 mm
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO circuit breaker is rated at 30A at 120/240VAC. This unit provides 10kA breaking capacity and bolt on mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
QTY
  • Product Description
  • Features
  • Specifications
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO circuit breaker is rated at 30A at 120/240VAC. This unit provides 10kA breaking capacity and bolt on mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL Listed || CSA
    • Ambient Air Temperature For Operation : 40 °C
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Packaging Made With Recycled Cardboard : No
    • Environmental Disclosure : ENVPEP2111016
    • Halogen Content Performance : Halogen free product
    • Packaging Without Single Use Plastic : Yes
    • Scip Number : af42fb01-813d-40c0-ae28-b8b3299dbc99
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : N/A
    • Take-Back : No
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 18.8369145322
  • Complementary
    • Height : 76 mm
    • Tightening Torque : 4-4 N.m
    • Number Of Spaces Required : 2
    • Net Weight : 0.249 kg
    • Breaking Capacity : 10 kA 120/240 V AC || 10 kA 120 V AC
    • Awg Gauge : AWG 14...AWG 8 copper or aluminium
    • Width : 38 mm
    • Depth : 74 mm
  • Specifications
    • Country of Origin : Mexico
    • Width : 38 mm
    • Height : 76 mm
    • Weight : 0.249 kg
    • Circuit Breaker Type : standard
    • Range Of Product : QO
    • Product Or Component Type : miniature circuit-breaker
    • Circuit Breaker Application : HACR rated
    • Mounting Mode : bolt-on
    • Poles Description : 2P
    • Electrical Connection : pressure plate
    • Line Rated Current : 30 A
    • [Ue] Rated Operational Voltage : 120/240 V AC || 120 V AC
