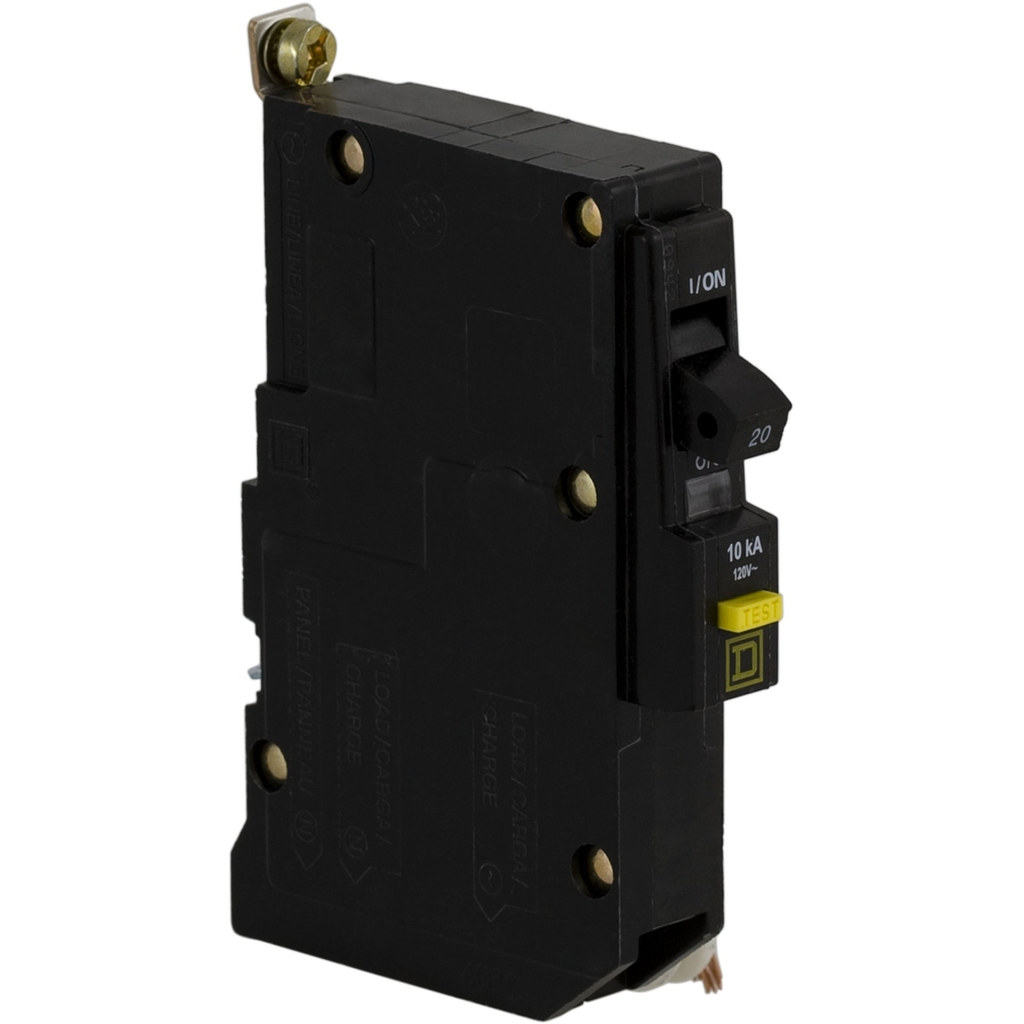

Mini circuit breaker, QO, 20A, 1 pole, 120VAC, 10kA, bolt on, 6mA grd fault A, pigtail [TAA]

BREAKER - SP 120/240V 20A

SQDQOB120GFI QOB120GFI 785901368717
255.30 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Mini circuit breaker, QO, 20A, 1 pole, 120VAC, 10kA, bolt on, 6mA grd fault A, pigtail [TAA]-2
  • Country of Origin: USA
  • Depth: 74 mm
  • Height: 105 mm
  • Net Weight: 0.254 kg
  • Warranty Length: 18 mth
  • Weight: 0.254 kg
  • Width: 19 mm
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 1 pole QO circuit breaker is rated at 20A at 120VAC. This unit provides 10kA breaking capacity and bolt on mounting. This product includes a 6mA ground fault A with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
QTY
  • Product Description
  • Features
  • Specifications
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 1 pole QO circuit breaker is rated at 20A at 120VAC. This unit provides 10kA breaking capacity and bolt on mounting. This product includes a 6mA ground fault A with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL Listed || CSA
    • Ambient Air Temperature For Operation : 40 °C
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Packaging Made With Recycled Cardboard : No
    • Environmental Disclosure : ENVPEP2212005
    • Packaging Without Single Use Plastic : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : ENVEOLI2212005
    • Take-Back : No
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 39.2329320793
  • Complementary
    • Height : 105 mm
    • Tightening Torque : 4-4 N.m || 4.6-4.6 N.m 4-20 mm² (AWG 12...AWG 4)
    • Number Of Spaces Required : 1
    • Net Weight : 0.254 kg
    • Breaking Capacity : 10 kA 120 V AC
    • Awg Gauge : AWG 14...AWG 8 copper or aluminium
    • Width : 19 mm
    • Depth : 74 mm
  • Specifications
    • Country of Origin : United States
    • Width : 19 mm
    • Height : 105 mm
    • Weight : 0.254 kg
    • Circuit Breaker Type : ground fault protecting class A 6 mA
    • Range Of Product : QO
    • Product Or Component Type : miniature circuit-breaker
    • Circuit Breaker Application : not rated
    • Mounting Mode : bolt-on
    • Poles Description : 1P
    • Electrical Connection : pressure plate
    • Line Rated Current : 20 A
    • [Ue] Rated Operational Voltage : 120 V AC
