SQUARE D

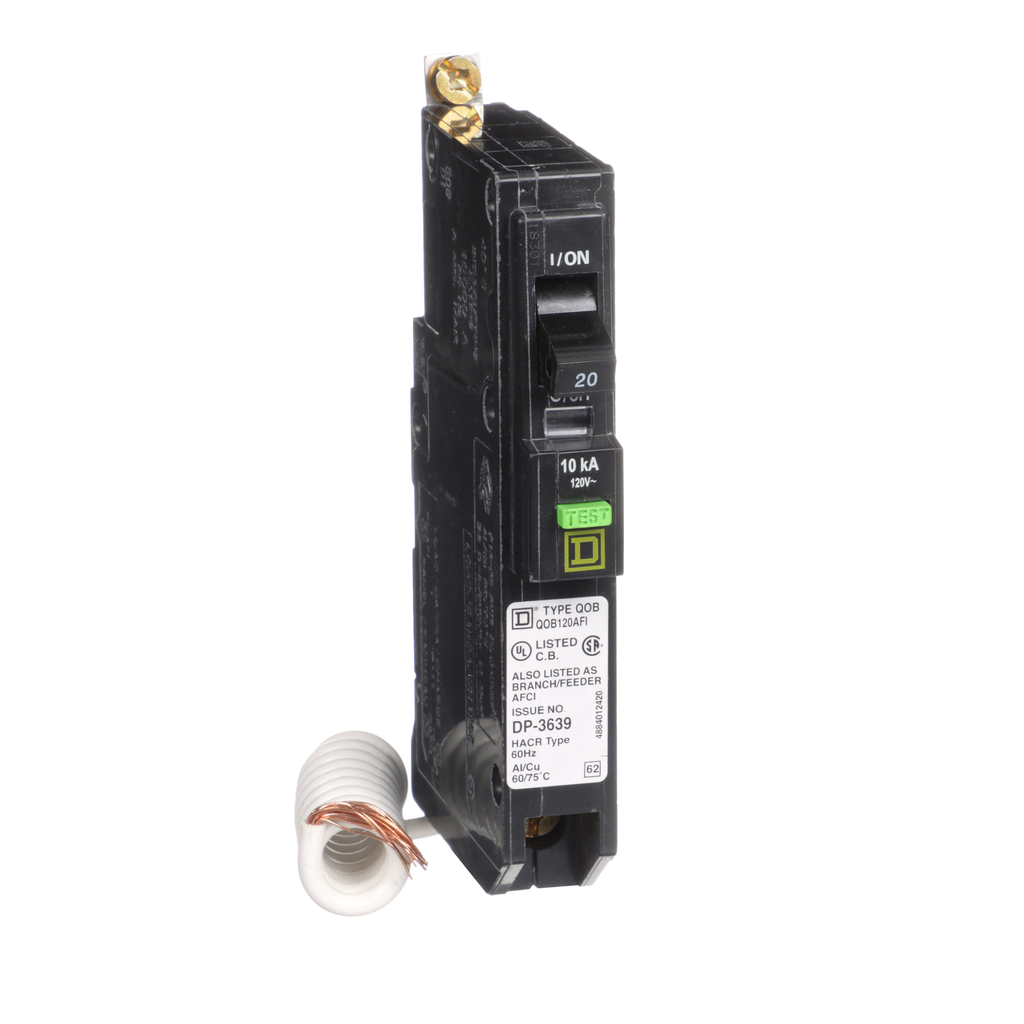

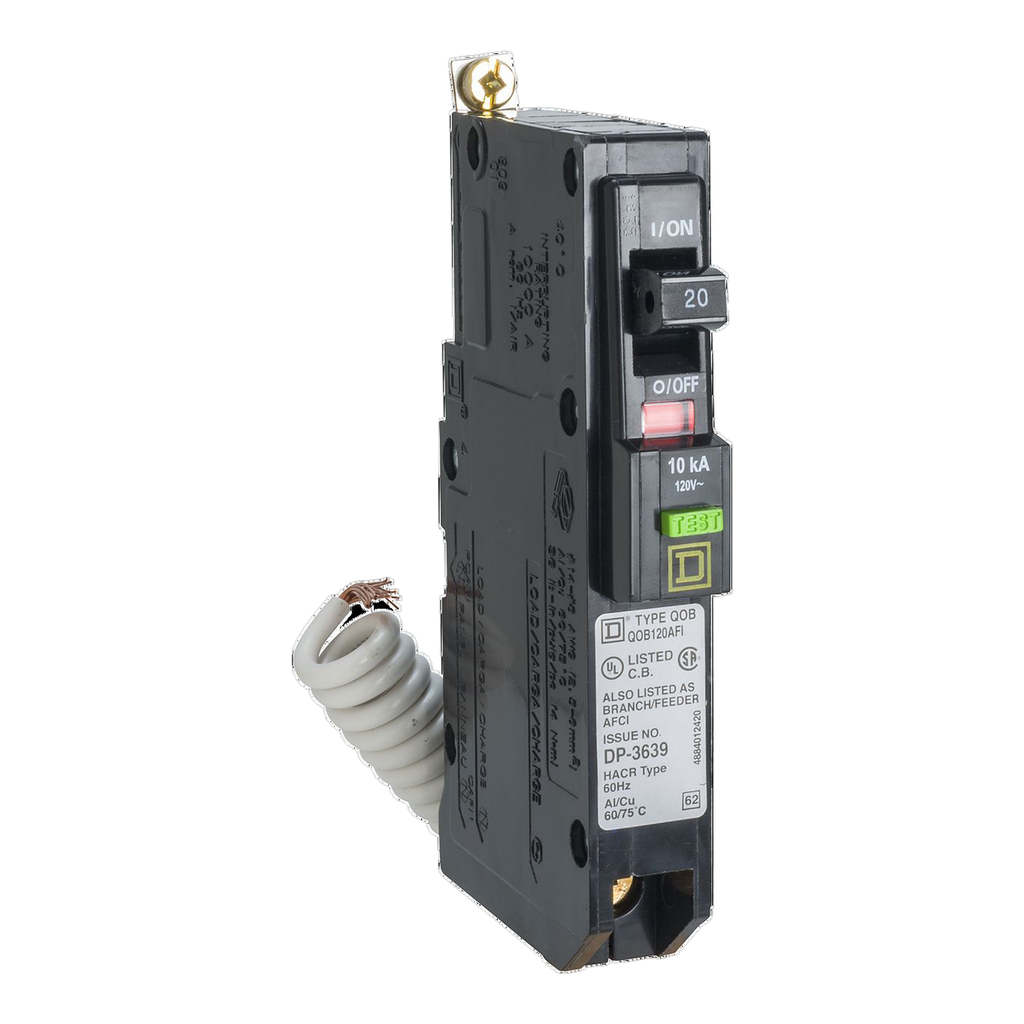

Mini circuit breaker, QO, 20A, 1 pole, 120VAC, 10kA, bolt on, ARC fault, pigtail [TAA]

MINIATURE CIRCUIT BREAKER 120/

SQDQOB120AFI QOB120AFI 785901299356
242.07 / EACH
http://schema.org/OutOfStock
Mini circuit breaker, QO, 20A, 1 pole, 120VAC, 10kA, bolt on, ARC fault, pigtail [TAA]
  • Depth: 74 mm
  • Height: 121 mm
  • Net Weight: 0.254 kg
  • Warranty Length: 18 mth
  • Weight: 0.254 kg
  • Width: 19 mm
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 1 pole QO circuit breaker is rated at 20A at 120VAC. This unit provides 10kA breaking capacity and bolt on mounting. This product includes an arc fault interrupt with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
QTY
  • Product Description
  • Features
  • Specifications
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 1 pole QO circuit breaker is rated at 20A at 120VAC. This unit provides 10kA breaking capacity and bolt on mounting. This product includes an arc fault interrupt with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
  • Prop 65
    • WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL Listed || CSA
    • Ambient Air Temperature For Operation : 40 °C
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Packaging Made With Recycled Cardboard : No
    • Environmental Disclosure : ENVPEP2111016
    • Halogen Content Performance : Halogen free product
    • Packaging Without Single Use Plastic : Yes
    • Scip Number : af42fb01-813d-40c0-ae28-b8b3299dbc99
    • California Proposition 65 : WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
    • Circularity Profile : N/A
    • Take-Back : No
  • Complementary
    • Height : 121 mm
    • Tightening Torque : 4-4 N.m
    • Number Of Spaces Required : 1
    • Net Weight : 0.254 kg
    • Breaking Capacity : 10 kA 120 V AC
    • Awg Gauge : AWG 14...AWG 8 copper || AWG 12...AWG 8 aluminium
    • Width : 19 mm
    • Depth : 74 mm
  • Specifications
    • Country of Origin : Mexico
    • Width : 19 mm
    • Height : 121 mm
    • Weight : 0.254 kg
    • Circuit Breaker Type : ARC-fault
    • Range Of Product : QO
    • Product Or Component Type : miniature circuit-breaker
    • Circuit Breaker Application : HACR rated
    • Mounting Mode : bolt-on
    • Poles Description : 1P
    • Electrical Connection : pressure plate
    • Line Rated Current : 20 A
    • [Ue] Rated Operational Voltage : 120 V AC
