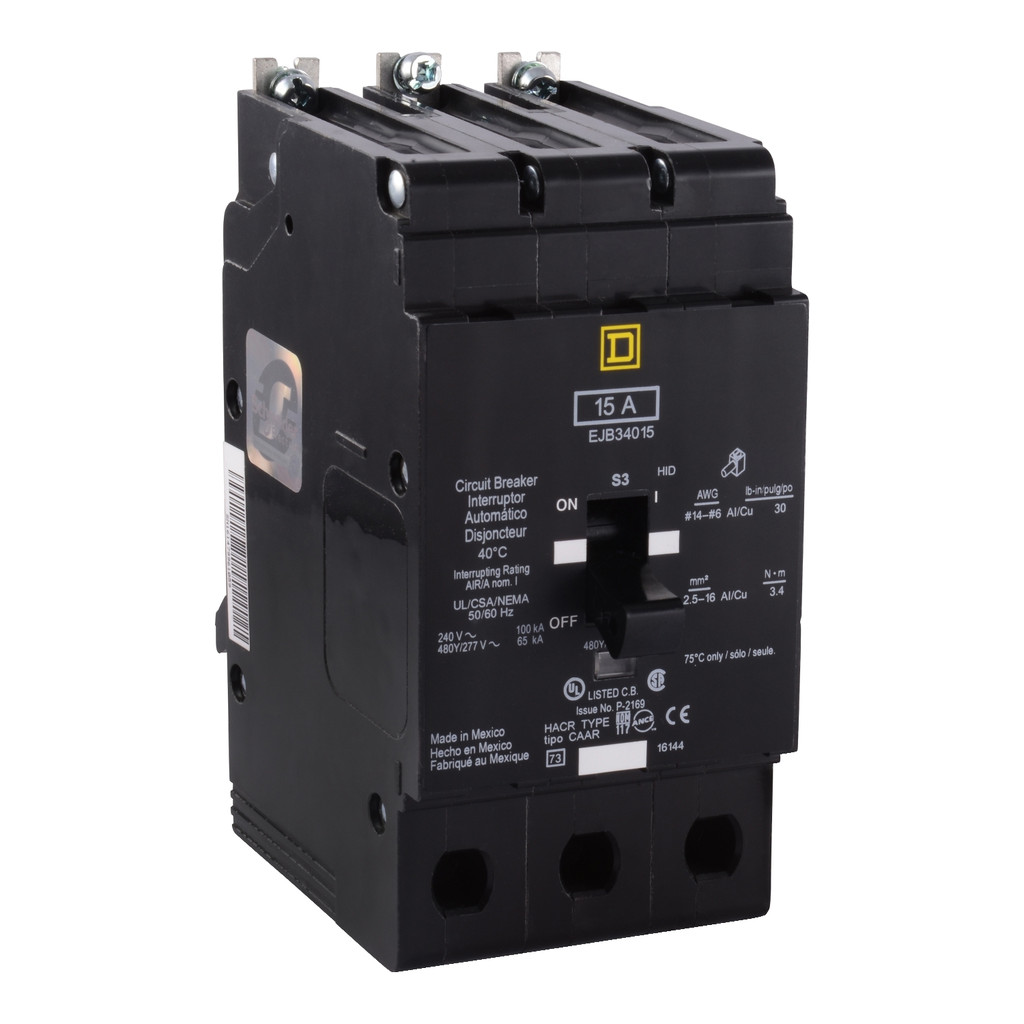

E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer super

• Carbon Footprint Of The Installation Phase A5
• 0.0458062141
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0.3 kg CO2 eq.
• 0.2553942919
• Electrical Connection
• lugs aluminium
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 9 kg CO2 eq.
• 8.5043522162
• Persona Type Names
• End User
• Consumer
• Contractor
• Original Equipment Manufacturer
• Electrician
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 51 kg CO2 eq.
• 50.548
• Persona Type Ids
• EU
• EUA
• LC
• OM
• SC
• Carbon Footprint Of The Distribution Phase A4
• 0.2224332757
• 0.2 kg CO2 eq.
• Tightening Torque
• 3.4-3.4 N.m 2.5-16 mm² (AWG 14...AWG 6)
• AWG Gauge
• AWG 12...AWG 6 aluminium
• AWG 14...AWG 6 copper
• Product Destination
• NF panelboard
• UE Rated Operational Voltage
• 480Y/277 V AC

• Important Information Attributes
• B2B Bullet Point 1 : Used in lighting panelboards
• B2B Bullet Point 2 : Superior overload and short circuit protection
• B2B Bullet Point 3 : From 15A to 125A ratings
• B2B Bullet Point 4 : Troubleshoot faster with Visi-Trip™
• B2B Bullet Point 5 : UL listed, CSA, and HOM certified
• B2B Bullet Point 6 : Made to last 20 years
• B2B Bullet Point 7 : This product is TAA compliant.
• Local Data Status : Publishable
• Local Publishable Date : 7/18/2025
• HTML Description : E Frame Miniature circuit-breakertrip unit rating : 875 ALine Rated Current : 30 Amaximum operating voltage : 480Y/277 V ACnumber of poles : 3 polesProtection type : Short-circuit, Overloa
• Manufacturer : Schneider Electric
• Device Type : LV equipment - Low voltage circuit breaker
• Serviceability : No
• Traceability : Yes
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Manufacturing Carbon Footprint : 8.504352216
• Distribution Carbon Footprint : 0.222433276
• Installation Carbon Footprint : 0.045806214
• Use Carbon Footprint : 50.548
• End Of Life Carbon Footprint : 0.255394292
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2212008
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Conformity Date : 2534
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : No
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : A - SELECTED - PCE ONLY (Migration)
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : COMMERCIAL
• Market Segmentation : Commercial
• H And D Domain : Safety
• H And D Subrange : COM
• H And D Enrichment Assignment : no
• H And D Enrichment Function : MCB
• H And D Enrichment Class 3 : Circuit Breakers
• H And D Enrichment Class 4 : MCB UL 3P
• Device Short Name : EGB
• Energy Efficiency Optimized : FALSE
• Holding Current : 270 A
• Module Type : E-Frame
• Number Of Poles : 3
• Number Of Spaces : 3
• Number Of Spaces Required : 3
• Package Weight Lbs : 1.724 kg
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : miniature circuit-breaker
• Range Of Product : 125 A Frame EDB-EGB-EJB
• Returnability : Yes
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 60 kg CO2 eq.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 59.575986
• Relationship Type : Compatible relationship
• Pep Verification Date : 11/1/2021
• PCR Version : PCR-ed3-EN-2015 04 02
• PSR Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Product Weight In G : 1724
• Functional Unit Description : Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 277 VAC and rated current 20 A. This protection is ensured in accordance with the following parameters: - Number of poles 1P - Rated brea
• Functional Unit Quantity : 1
• Functional Unit Unit : unit
• Reference Lifetime In Y : 20
• Energy Consumption On Product Lifetime In Kwh : 73.00584
• Energy Model Manufacturing A1 A3 : Energy model used: Mexico
• Energy Model Installation A5 : Electricity mix; AC; 120V; US
• Energy Model Use B6 : Electricity mix; AC; 120V; US
• Energy Model End Of Life C1 C4 : Electricity mix; AC; 120V; US
• Components For Re Use Kg Total Life Cycle : 0
• Components For Re Use Kg Manufacturing A1 A3 : 0
• Components For Re Use Kg Distribution A4 : 0
• Components For Re Use Kg Installation A5 : 0
• Components For Re Use Kg Operational Energy Use B6 : 0
• Components For Re Use Kg End Of Life C1 C4 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.002011905
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.002011396
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 8.9E-09
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 1.7E-09
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 4.968E-07
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 2.6E-09
• Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 702.2646937
• Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 82.0391027
• Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 3.12500627
• Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.593941297
• Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 615.44
• Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 1.06664346
• Exported Energy Mj By Energy Vector Total Life Cycle : 0.00267029
• Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.000251005
• Exported Energy Mj By Energy Vector Distribution A4 : 0
• Exported Energy Mj By Energy Vector Installation A5 : 0.002419285
• Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
• Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
• Hazardous Waste Disposed Of Kg Total Life Cycle : 28.15392452
• Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 25.33627676
• Hazardous Waste Disposed Of Kg Distribution A4 : 0
• Hazardous Waste Disposed Of Kg Installation A5 : 2.2448E-06
• Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 1.3515
• Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 1.466145514
• Materials For Energy Recovery Kg Total Life Cycle : 0.0563105
• Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
• Materials For Energy Recovery Kg Distribution A4 : 0
• Materials For Energy Recovery Kg Installation A5 : 0
• Materials For Energy Recovery Kg Operational Energy Use B6 : 0
• Materials For Energy Recovery Kg End Of Life C1 C4 : 0.0563105
• Materials For Recycling Kg Total Life Cycle : 1.255715005
• Materials For Recycling Kg Manufacturing A1 A3 : 0.161068195
• Materials For Recycling Kg Distribution A4 : 0
• Materials For Recycling Kg Installation A5 : 0.840398746
• Materials For Recycling Kg Operational Energy Use B6 : 0
• Materials For Recycling Kg End Of Life C1 C4 : 0.254248065
• Net Use Of Fresh Water M3 Total Life Cycle : 0.233206076
• Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.143679092
• Net Use Of Fresh Water M3 Distribution A4 : 1.99071E-05
• Net Use Of Fresh Water M3 Installation A5 : 5.0047E-06
• Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.089339
• Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.000163072
• Non Hazardous Waste Disposed Of Kg Total Life Cycle : 10.11196395
• Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 2.365048432
• Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.007903096
• Non Hazardous Waste Disposed Of Kg Installation A5 : 0.006208264
• Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 7.7289
• Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.003904161
• Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 2.3528E-06
• Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 1.4264E-06
• Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 5E-10
• Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 1E-10
• Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 9.168E-07
• Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 9.1E-09
• Radioactive Waste Disposed Of Kg Total Life Cycle : 0.002494378
• Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.001685233
• Radioactive Waste Disposed Of Kg Distribution A4 : 5.6288E-06
• Radioactive Waste Disposed Of Kg Installation A5 : 1.2226E-06
• Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.00079524
• Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 7.0529E-06
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 777.9016782
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 133.204627
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 3.140848432
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.597389297
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 639.64
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 1.318813405
• Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 852.7829272
• Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 167.2093622
• Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 3.145041946
• Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.59831187
• Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 680.51
• Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 1.320211243
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 74.88491014
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 34.00939459
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.00419137
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.000928947
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 40.869
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.001395229
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 10.14271135
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 10.14271135
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 767.7626944
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 123.0656432
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 3.140848432
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.597389297
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 639.64
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 1.318813405
• Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 3.674822487
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 3.674822487
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 71.21046041
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 30.33494486
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.00419137
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.000928947
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 40.869
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.001395229
• Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Secondary Materials Kg Total Life Cycle : 0.761010876
• Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.761010876
• Use Of Secondary Materials Kg Distribution A4 : 0
• Use Of Secondary Materials Kg Installation A5 : 0
• Use Of Secondary Materials Kg Operational Energy Use B6 : 0
• Use Of Secondary Materials Kg End Of Life C1 C4 : 0
• Air Pollution M3 Total Life Cycle : 5857.498758
• Air Pollution M3 Manufacturing A1 A3 : 1543.865297
• Air Pollution M3 Distribution A4 : 9.46243027
• Air Pollution M3 Installation A5 : 1.826880865
• Air Pollution M3 Operational Energy Use B6 : 4292.7
• Air Pollution M3 End Of Life C1 C4 : 9.644149189
• Water Pollution M3 Total Life Cycle : 3380.942672
• Water Pollution M3 Manufacturing A1 A3 : 830.8841297
• Water Pollution M3 Distribution A4 : 36.57862054
• Water Pollution M3 Installation A5 : 6.947999568
• Water Pollution M3 Operational Energy Use B6 : 2492
• Water Pollution M3 End Of Life C1 C4 : 14.53192216
• Acidification Of Soil And Water Kg Equivalent So2 Total Life Cycle : 0.068704791
• Photochemical Ozone Formation Kg Equivalent C2h4 Total Life Cycle : 0.01000423
• Water Eutrophication Kg Equivalent P04 3 Total Life Cycle : 0.017133006
• Acidification Of Soil And Water Kg Equivalent So2 Manufacturing A1 A3 : 0.018814897
• Acidification Of Soil And Water Kg Equivalent So2 Distribution A4 : 0.001015576
• Acidification Of Soil And Water Kg Equivalent So2 Installation A5 : 0.000190889
• Acidification Of Soil And Water Kg Equivalent So2 Operational Energy Use B6 : 0.048398
• Acidification Of Soil And Water Kg Equivalent So2 End Of Life C1 C4 : 0.000285429
• Global Warming Kg Equivalent Co2 Total Life Cycle : 59.575986
• Global Warming Kg Equivalent Co2 Manufacturing A1 A3 : 8.504352216
• Global Warming Kg Equivalent Co2 Distribution A4 : 0.222433276
• Global Warming Kg Equivalent Co2 Installation A5 : 0.045806214
• Global Warming Kg Equivalent Co2 Operational Energy Use B6 : 50.548
• Global Warming Kg Equivalent Co2 End Of Life C1 C4 : 0.255394292
• Photochemical Ozone Formation Kg Equivalent C2h4 Manufacturing A1 A3 : 0.002137667
• Photochemical Ozone Formation Kg Equivalent C2h4 Distribution A4 : 7.24742E-05
• Photochemical Ozone Formation Kg Equivalent C2h4 Installation A5 : 1.42654E-05
• Photochemical Ozone Formation Kg Equivalent C2h4 Operational Energy Use B6 : 0.0077522
• Photochemical Ozone Formation Kg Equivalent C2h4 End Of Life C1 C4 : 2.76241E-05
• Water Eutrophication Kg Equivalent P04 3 Manufacturing A1 A3 : 0.003995859
• Water Eutrophication Kg Equivalent P04 3 Distribution A4 : 0.000233924
• Water Eutrophication Kg Equivalent P04 3 Installation A5 : 4.63859E-05
• Water Eutrophication Kg Equivalent P04 3 Operational Energy Use B6 : 0.012755
• Water Eutrophication Kg Equivalent P04 3 End Of Life C1 C4 : 0.000101837
• Warranty In Months : 18
• General Attributes
• Product Or Component Type : miniature circuit-breaker
• Range Of Product : 125 A Frame EDB-EGB-EJB
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=423253445&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0%
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Carbon Footprint : 59.575986
• Circularity Profile : ENVEOLI2212008
• EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Verification Date : 11/1/2021
• PCR Version : PCR-ed3-EN-2015 04 02
• PSR Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico
• Compliance : TAA
