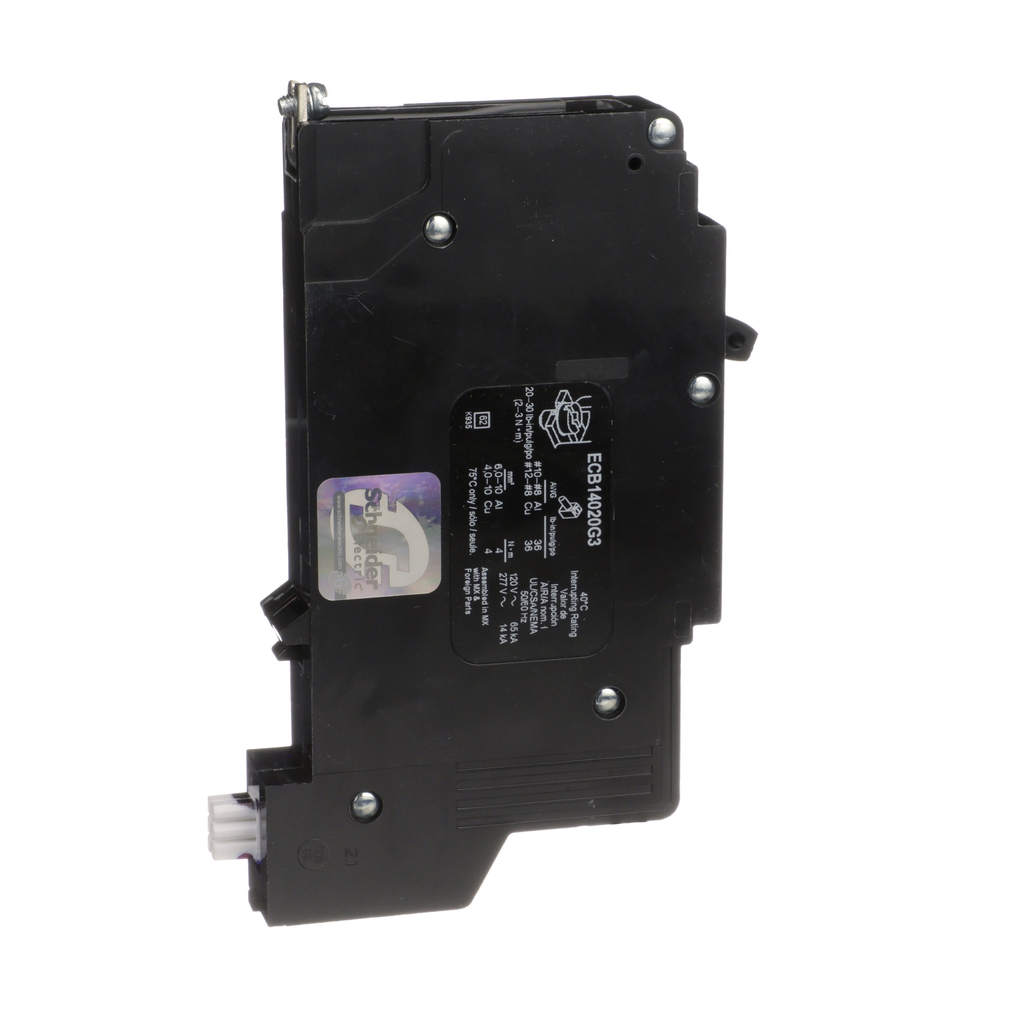

PowerLink™ circuit breakers are one, two, and three pole thermal magnetic circuit breakers that provide arc fault circuit interrupters for PowerLink™ Intelligent panelboard. They can be configured to automatically or manually reset once tripped using a bimetallic strip. This circuit breaker is HACR rated to a current capacity of 20 amperages, allowing for it be ideally used in congruence with HVAC systems. Certified by the Underwriters Laboratory to meet the designed specifications.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0.0167520286
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0.1 kg CO2 eq.
• 0.0934015738
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 3 kg CO2 eq.
• 3.1101708479
• Persona Type Names
• End User
• Consumer
• Contractor
• Electrician
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 51 kg CO2 eq.
• 50.548
• Persona Type Ids
• EU
• EUA
• LC
• SC
• Accessory Separate Part Type
• motor for circuit-breaker 24 V DC
• Carbon Footprint Of The Distribution Phase A4
• 0.0813472293
• 0.1 kg CO2 eq.
• AWG Gauge
• AWG 10...AWG 8 aluminium
• AWG 12...AWG 8 copper
• Trip Unit Technology
• thermal-magnetic, standard, LI
• UE Rated Operational Voltage
• 480Y/277 V AC

• Important Information Attributes
• B2B Bullet Point 1 : PowerLink™ are flexible in circuit breaker control
• B2B Bullet Point 2 : Provides manual and remote operations of the luminaries
• B2B Bullet Point 3 : Protects circuits from faults and overcurrent
• B2B Bullet Point 4 : Product characteristics conformity is certified by the Underwriters Laboratories (UL)
• B2B Bullet Point 5 : This product is TAA compliant.
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-18
• HTML Description : Powerlink G3 Controllable Circuit Breaker:480 VAC20 Amp1 PoleControllable Circuit Breaker for use in Square D Powerlink G3 panelboardsType NFCombines the protective features of conventional circuit breakers with the switching functions of a contactor/relayThe panelboard must have a control bus strip for the breaker to plug into
• Manufacturer : Schneider Electric
• Device Type : LV equipment - Low voltage circuit breaker
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Manufacturing Carbon Footprint : 3.1101708479
• Distribution Carbon Footprint : 0.0813472293
• Installation Carbon Footprint : 0.0167520286
• Use Carbon Footprint : 50.548
• End Of Life Carbon Footprint : 0.0934015738
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2212008
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Full Compliance Status : Under investigation
• ROHS EUR Full Compliance Status Id : UNDER_INVESTIGATION
• China ROHS In Scope : No
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : COMMERCIAL
• Market Segmentation : Commercial
• H And D Domain : Safety
• H And D Subrange : COM
• H And D Enrichment Assignment : yes
• H And D Enrichment Function : POWERLINK
• H And D Enrichment Class 3 : Circuit Breakers
• H And D Enrichment Class 4 : MCB UL 1P
• H And D Offer Quality Leader : function
• Energy Efficiency Optimized : False
• Number Of Spaces Required : 1
• Package Weight Lbs : 630.493 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : circuit breaker
• Range Of Product : Powerlink
• Returnability : Yes
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 54 kg CO2 eq.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 53.8496716797
• Pep Code : ENVPEP2212008
• Pep Verification Date : 2021-11-01
• PCR Version : PCR-ed3-EN-2015 04 02
• PSR Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• H And Docp Responsible Pm Co : LS8A26363G;LS8A26650G;LS8A26640G;LS8A29332G;LS8A29320G
• Product Weight In G : 630.493
• Functional Unit Description : Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 277 VAC and rated current 20 A. This protection is ensured in accordance with the following parameters:& 10- Number of poles 1P& 10- Rated breaking capacity 18 kA, 25 kA max& 10- Tripping curve 515-1
• Functional Unit Quantity : 1
• Functional Unit Unit : unit
• Reference Lifetime In Y : 20
• Energy Consumption On Product Lifetime In Kwh : 73.00584
• Nbr Of Units In Pkg : 1
• Warranty In Months : 18
• Energy Model Manufacturing A1 A3 : Energy model used: Mexico
• Energy Model Installation A5 : Electricity mix; AC; 120V; US
• Energy Model Use B6 : Electricity mix; AC; 120V; US
• Energy Model End Of Life C1 C4 : Electricity mix; AC; 120V; US
• Components For Re Use Kg Total Life Cycle : 0
• Components For Re Use Kg Manufacturing A1 A3 : 0
• Components For Re Use Kg Distribution A4 : 0
• Components For Re Use Kg Installation A5 : 0
• Components For Re Use Kg Operational Energy Use B6 : 0
• Components For Re Use Kg End Of Life C1 C4 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.0007360995
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.0007355979
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.0000000033
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.0000000006
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.0000004968
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.000000001
• Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 647.1931099906
• Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 30.0029466243
• Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 1.1428622844
• Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.2172133587
• Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 615.44
• Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 0.3900877231
• Exported Energy Mj By Energy Vector Total Life Cycle : 0.0009765655
• Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.0000917964
• Exported Energy Mj By Energy Vector Distribution A4 : 0
• Exported Energy Mj By Energy Vector Installation A5 : 0.0008847691
• Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
• Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
• Hazardous Waste Disposed Of Kg Total Life Cycle : 11.1535539674
• Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 9.2658614508
• Hazardous Waste Disposed Of Kg Distribution A4 : 0
• Hazardous Waste Disposed Of Kg Installation A5 : 0.000000821
• Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 1.3515
• Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.5361916956
• Materials For Energy Recovery Kg Total Life Cycle : 0.0205936054
• Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
• Materials For Energy Recovery Kg Distribution A4 : 0
• Materials For Energy Recovery Kg Installation A5 : 0
• Materials For Energy Recovery Kg Operational Energy Use B6 : 0
• Materials For Energy Recovery Kg End Of Life C1 C4 : 0.0205936054
• Materials For Recycling Kg Total Life Cycle : 0.4592340608
• Materials For Recycling Kg Manufacturing A1 A3 : 0.0589050866
• Materials For Recycling Kg Distribution A4 : 0
• Materials For Recycling Kg Installation A5 : 0.3073465931
• Materials For Recycling Kg Operational Energy Use B6 : 0
• Materials For Recycling Kg End Of Life C1 C4 : 0.0929823812
• Net Use Of Fresh Water M3 Total Life Cycle : 0.1419533759
• Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.0525456274
• Net Use Of Fresh Water M3 Distribution A4 : 0.0000072803
• Net Use Of Fresh Water M3 Installation A5 : 0.0000018303
• Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.089339
• Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.0000596378
• Non Hazardous Waste Disposed Of Kg Total Life Cycle : 8.6004227035
• Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0.8649341539
• Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.0028902822
• Non Hazardous Waste Disposed Of Kg Installation A5 : 0.0022704564
• Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 7.7289
• Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.001427811
• Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.000001442
• Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.0000005216
• Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.0000000002
• Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.0000009168
• Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.0000000033
• Radioactive Waste Disposed Of Kg Total Life Cycle : 0.0014166405
• Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.0006163154
• Radioactive Waste Disposed Of Kg Distribution A4 : 0.0000020585
• Radioactive Waste Disposed Of Kg Installation A5 : 0.0000004471
• Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.00079524
• Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.0000025794
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 690.2043968965
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 48.7149564432
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 1.1486560039
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.2184743447
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 639.64
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.4823101046
• Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 743.5128275538
• Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 61.1510048595
• Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 1.1501896355
• Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.2188117436
• Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 680.51
• Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 0.4828213152
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 53.3091352855
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 12.4377524514
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0015328478
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0003397301
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 40.869
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0005102563
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 3.7093436822
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 3.7093436822
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 686.4964164424
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 45.0069759892
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 1.1486560039
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.2184743447
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 639.64
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.4823101046
• Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 1.3439384304
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1.3439384304
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 51.9653331779
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 11.0939503438
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0015328478
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0003397301
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 40.869
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0005102563
• Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Secondary Materials Kg Total Life Cycle : 0.2783132425
• Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.2783132425
• Use Of Secondary Materials Kg Distribution A4 : 0
• Use Of Secondary Materials Kg Installation A5 : 0
• Use Of Secondary Materials Kg Operational Energy Use B6 : 0
• Use Of Secondary Materials Kg End Of Life C1 C4 : 0
• Air Pollution M3 Total Life Cycle : 4864.9706862466
• Air Pollution M3 Manufacturing A1 A3 : 564.6150016757
• Air Pollution M3 Distribution A4 : 3.4605545524
• Air Pollution M3 Installation A5 : 0.6681180958
• Air Pollution M3 Operational Energy Use B6 : 4292.7
• Air Pollution M3 End Of Life C1 C4 : 3.5270119227
• Water Pollution M3 Total Life Cycle : 2817.099844604
• Water Pollution M3 Manufacturing A1 A3 : 303.8669533676
• Water Pollution M3 Distribution A4 : 13.3773574249
• Water Pollution M3 Installation A5 : 2.5409890321
• Water Pollution M3 Operational Energy Use B6 : 2492
• Water Pollution M3 End Of Life C1 C4 : 5.3145447795
• Acidification Of Soil And Water Kg Equivalent So2 Total Life Cycle : 0.0558245021
• Photochemical Ozone Formation Kg Equivalent C2h4 Total Life Cycle : 0.0085758018
• Water Eutrophication Kg Equivalent P04 3 Total Life Cycle : 0.0143561032
• Acidification Of Soil And Water Kg Equivalent So2 Manufacturing A1 A3 : 0.0068808939
• Acidification Of Soil And Water Kg Equivalent So2 Distribution A4 : 0.0003714115
• Acidification Of Soil And Water Kg Equivalent So2 Installation A5 : 0.0000698109
• Acidification Of Soil And Water Kg Equivalent So2 Operational Energy Use B6 : 0.048398
• Acidification Of Soil And Water Kg Equivalent So2 End Of Life C1 C4 : 0.0001043858
• Global Warming Kg Equivalent Co2 Total Life Cycle : 53.8496716797
• Global Warming Kg Equivalent Co2 Manufacturing A1 A3 : 3.1101708479
• Global Warming Kg Equivalent Co2 Distribution A4 : 0.0813472293
• Global Warming Kg Equivalent Co2 Installation A5 : 0.0167520286
• Global Warming Kg Equivalent Co2 Operational Energy Use B6 : 50.548
• Global Warming Kg Equivalent Co2 End Of Life C1 C4 : 0.0934015738
• Photochemical Ozone Formation Kg Equivalent C2h4 Manufacturing A1 A3 : 0.0007817772
• Photochemical Ozone Formation Kg Equivalent C2h4 Distribution A4 : 0.0000265049
• Photochemical Ozone Formation Kg Equivalent C2h4 Installation A5 : 0.0000052171
• Photochemical Ozone Formation Kg Equivalent C2h4 Operational Energy Use B6 : 0.0077522
• Photochemical Ozone Formation Kg Equivalent C2h4 End Of Life C1 C4 : 0.0000101025
• Water Eutrophication Kg Equivalent P04 3 Manufacturing A1 A3 : 0.0014613465
• Water Eutrophication Kg Equivalent P04 3 Distribution A4 : 0.0000855494
• Water Eutrophication Kg Equivalent P04 3 Installation A5 : 0.000016964
• Water Eutrophication Kg Equivalent P04 3 Operational Energy Use B6 : 0.012755
• Water Eutrophication Kg Equivalent P04 3 End Of Life C1 C4 : 0.0000372434
• General Attributes
• Product Or Component Type : circuit breaker
• Range Of Product : Powerlink
• Environment Attributes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=423253625&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Carbon Footprint : 53.8496716797
• Circularity Profile : ENVEOLI2212008
• Environmental Disclosure : ENVPEP2212008
• EU ROHS Directive : Under investigation
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2212008
• Pep Verification Date : 2021-11-01
• PCR Version : PCR-ed3-EN-2015 04 02
• PSR Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico
• Compliance : TAA
