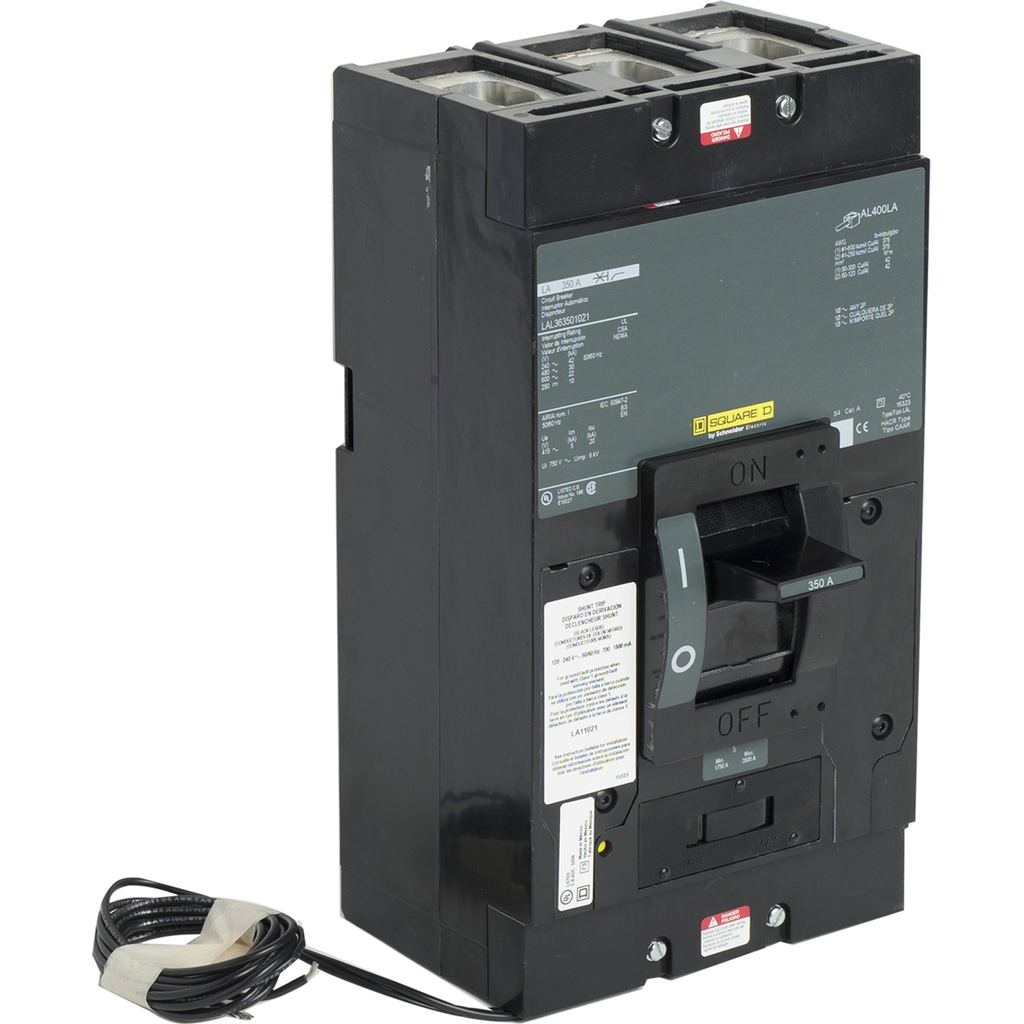

Circuit breaker, LA, 350A, 3 pole, 600VAC, 22kA, 250VDC, 10kA, lugs, thermal magnetic, shunt trip

MOLDED CASE CIRCUIT BREAKER 60

SQDLAL363501021 LAL363501021 785901339489
5229.55 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Circuit breaker, LA, 350A, 3 pole, 600VAC, 22kA, 250VDC, 10kA, lugs, thermal magnetic, shunt trip-1
  • Country of Origin: Mexico
  • Depth: 5.84 in
  • Height: 11 in
  • Warranty Length: 18 mth
  • Width: 6 in
Square D LA molded case circuit breakers provide thermal magnetic protection. Their primary function is automatic opening of a circuit under overload or short circuit conditions or manual opening. LA circuit breakers contain thermal (overload) and magnetic (short circuit) sensing elements in each pole. Push-to-Trip allows the circuit breaker to be manually tripped without exposure to live parts. This Square D LA molded case circuit breaker is a 3 pole unit mount breaker, 350A and 600VAC, with lugs. The thermal magnetic circuit breaker has an interrupting rating of 22kA for 600VAC and 10kA for 250VDC. The circuit breaker 1021 suffix indicates a factory installed 120/240VAC shunt trip. LA breakers are UL 489, CSA, IEC certified.
QTY
  • Product Description
  • Features
  • Specifications
Square D LA molded case circuit breakers provide thermal magnetic protection. Their primary function is automatic opening of a circuit under overload or short circuit conditions or manual opening. LA circuit breakers contain thermal (overload) and magnetic (short circuit) sensing elements in each pole. Push-to-Trip allows the circuit breaker to be manually tripped without exposure to live parts. This Square D LA molded case circuit breaker is a 3 pole unit mount breaker, 350A and 600VAC, with lugs. The thermal magnetic circuit breaker has an interrupting rating of 22kA for 600VAC and 10kA for 250VDC. The circuit breaker 1021 suffix indicates a factory installed 120/240VAC shunt trip. LA breakers are UL 489, CSA, IEC certified.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : IEC || UL Listed || CSA
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2206029_V2
    • Halogen Content Performance : Halogen free plastic parts product
    • Packaging Without Single Use Plastic : Yes
    • Scip Number : 45160aaa-1457-439f-bca7-7bd5246ac23e
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : ENVEOLI2206029_V2
    • Take-Back : No
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 739.3949682892573
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 49.671357924070975
    • Carbon Footprint Of The Distribution Phase [A4] : 2 kg CO2 eq.
    • Pvc Free : Yes
    • Carbon Footprint Of The Installation Phase [A5] : 2 kg CO2 eq.
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 805 kg CO2 eq.
    • Eu Rohs Directive : Compliant with Exemptions
    • Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 11.67639778652332
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 805.1207474371142
  • Complementary
    • Terminal Identifier : AL400LA
    • Height : 11 in
    • Tightening Torque : 13-13 N.m 42-304 mm² (AWG 1...600 kcmil) || 13-13 N.m 42-127 mm² (AWG 1...250 kcmil)
    • Magnetic Tripping Current : 3500-3500 A
    • Electrical Connection : lugs, load || lugs, line
    • Magnetic Hold Current : 1750 A
    • Circuit Breaker Application : HACR rated
    • Mounting Mode : unit mount
    • Poles Description : 3P
    • Line Rated Current : 350 A
    • Width : 6 in
    • Depth : 5.84 in
  • Specifications
    • Country of Origin : Mexico
    • Width : 6 in
    • Height : 11 in
    • Trip Unit Technology : thermal-magnetic
    • Product Or Component Type : circuit breaker
