SQUARE D

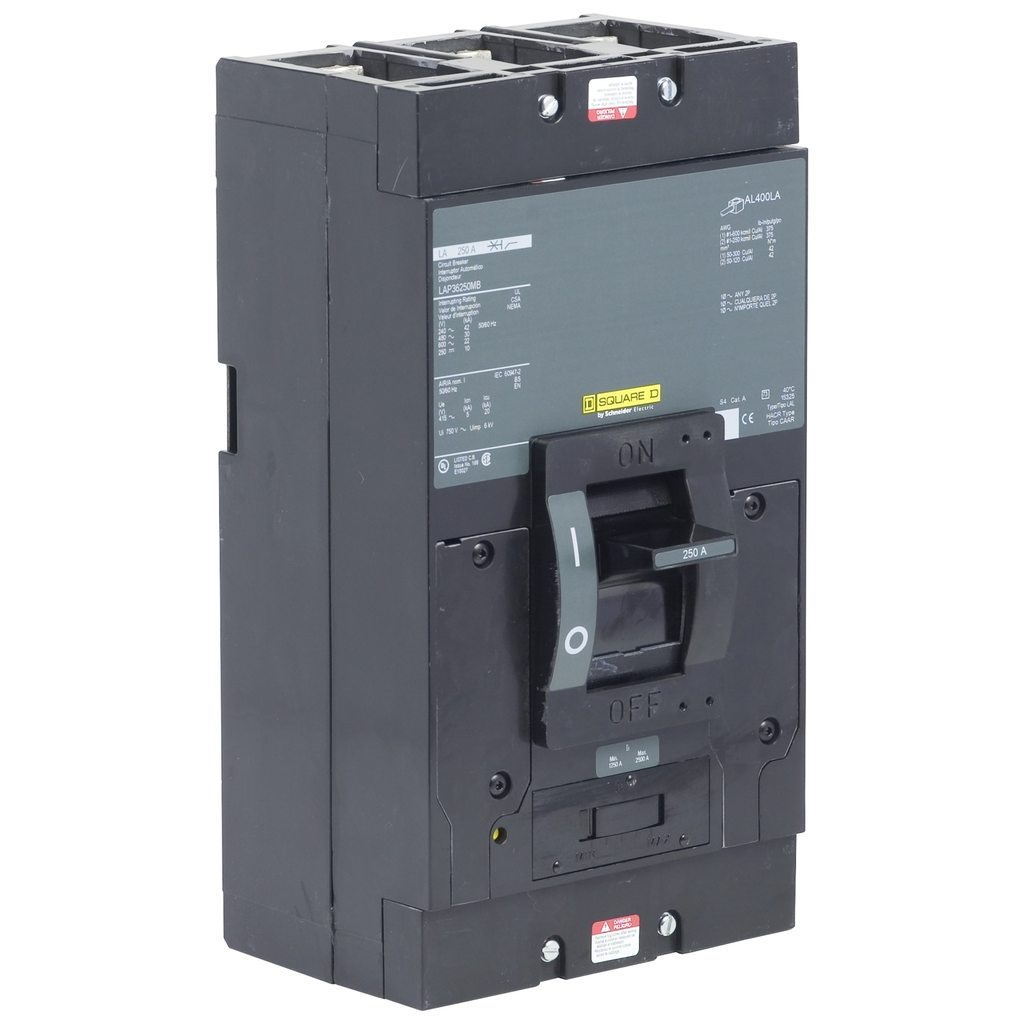

Circuit breaker, LA, 250A, 3 pole, 600VAC, 22kA, 250VDC, unit mount, thermal magnetic, short handle

MOLDED CASE CIRCUIT BREAKER 60

SQDLAP36250MB LAP36250MB 785901530046
4267.99 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Circuit breaker, LA, 250A, 3 pole, 600VAC, 22kA, 250VDC, unit mount, thermal magnetic, short handle-1
  • Depth: 5.84 in
  • Height: 11 in
  • Warranty Length: 18 mth
  • Width: 6 in
The I-Line™ Combo Panelboard saves time and space by combining I-Line and NQ/NF sections in one panelboard. The I-Line Combo Panelboard features a space-saving design for fast installation and a smaller footprint
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : IEC || UL Listed || CSA
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1410004EN
    • Halogen Content Performance : Halogen free plastic parts product
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Circularity Profile : N/A
    • Take-Back : No
    • Pvc Free : Yes
    • Eu Rohs Directive : Compliant with Exemptions
  • Complementary
    • Terminal Identifier : AL400LA
    • Height : 11 in
    • Tightening Torque : 13-13 N.m 42-304 mm² (AWG 1...600 kcmil) || 13-13 N.m 42-127 mm² (AWG 1...250 kcmil)
    • Breaking Capacity Code : A
    • Magnetic Tripping Current : 2500-2500 A
    • Operator Profile : short lever
    • Electrical Connection : lugs, load || terminal, line
    • Magnetic Hold Current : 1250 A
    • Circuit Breaker Application : HACR rated
    • Mounting Mode : unit mount
    • Poles Description : 3P
    • Line Rated Current : 250 A
    • Width : 6 in
    • Wiring Configuration : 3-wire
    • Depth : 5.84 in
  • Specifications
    • Country of Origin : Mexico
    • Width : 6 in
    • Height : 11 in
    • Trip Unit Technology : magnetic
    • Product Or Component Type : circuit breaker
