SQUARE D

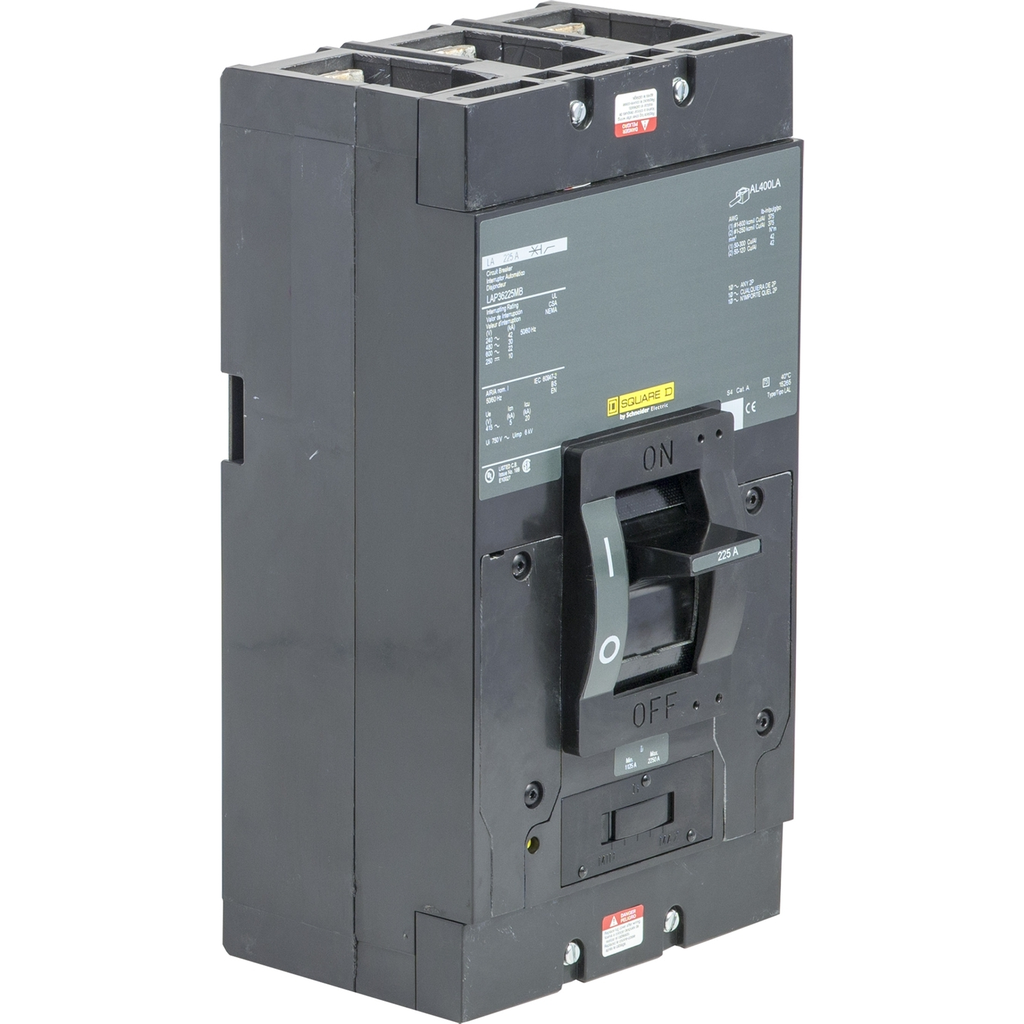

Circuit breaker, LA, 225A, 3 pole, 600VAC, 22kA, 250VDC, unit mount, thermal magnetic, short handle

MOLDED CASE CIRCUIT BREAKER 60

SQDLAP36225MB LAP36225MB 785901339441
6402.00 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Circuit breaker, LA, 225A, 3 pole, 600VAC, 22kA, 250VDC, unit mount, thermal magnetic, short handle-1
  • Certifications: CSA, IEC, UL Listed
  • Depth: 5.84 in
  • Height: 11 in
  • Line Rated Current: 225 A
  • Mounting Type: Unit Mount
  • Trip Point: 2250-2250 A
  • Warranty Length: 18 mth
  • Width: 6 in
QTY
  • Specifications
  • Environment
    • Product Certifications : CSA || IEC || UL Listed
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Circularity Profile : N/A
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1410004EN
    • Sustainable Offer Status : Green Premium product
    • Pvc Free : Yes
    • Eu Rohs Directive : Compliant with Exemptions
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Halogen Content Performance : Halogen free plastic parts product
  • Complementary
    • Circuit Breaker Application : HACR rated
    • Terminal Identifier : AL400LA
    • Height : 11 in
    • Mounting Mode : unit mount
    • Breaking Capacity Code : A
    • Magnetic Tripping Current : 2250-2250 A
    • Poles Description : 3P
    • Operator Profile : short lever
    • Line Rated Current : 225 A
    • Wiring Configuration : 3-wire
    • Width : 6 in
    • Electrical Connection : lugs, load || terminal, line
    • Depth : 5.84 in
    • Magnetic Hold Current : 1125 A
  • Specifications
    • Width : 6 in
    • Height : 11 in
    • Trip Unit Technology : magnetic
    • Product Or Component Type : circuit breaker
