SQUARE D

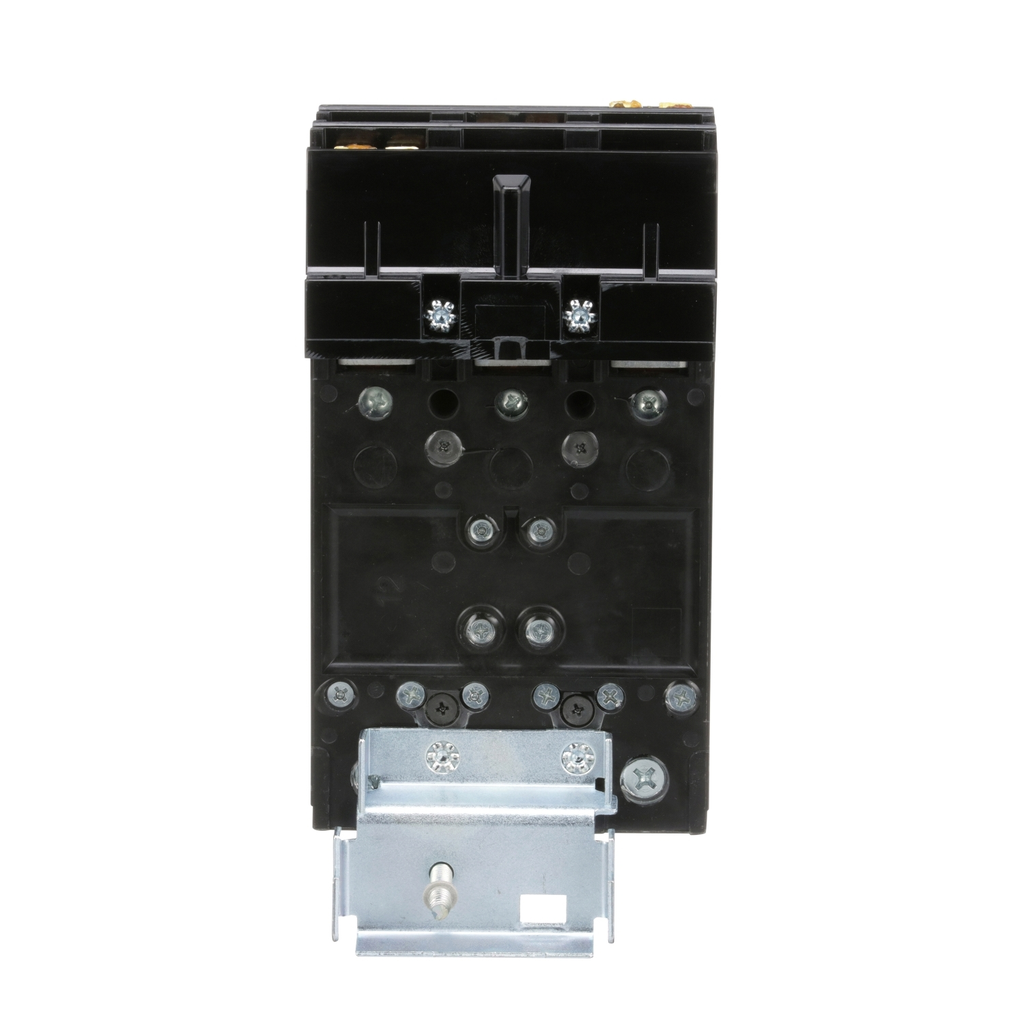

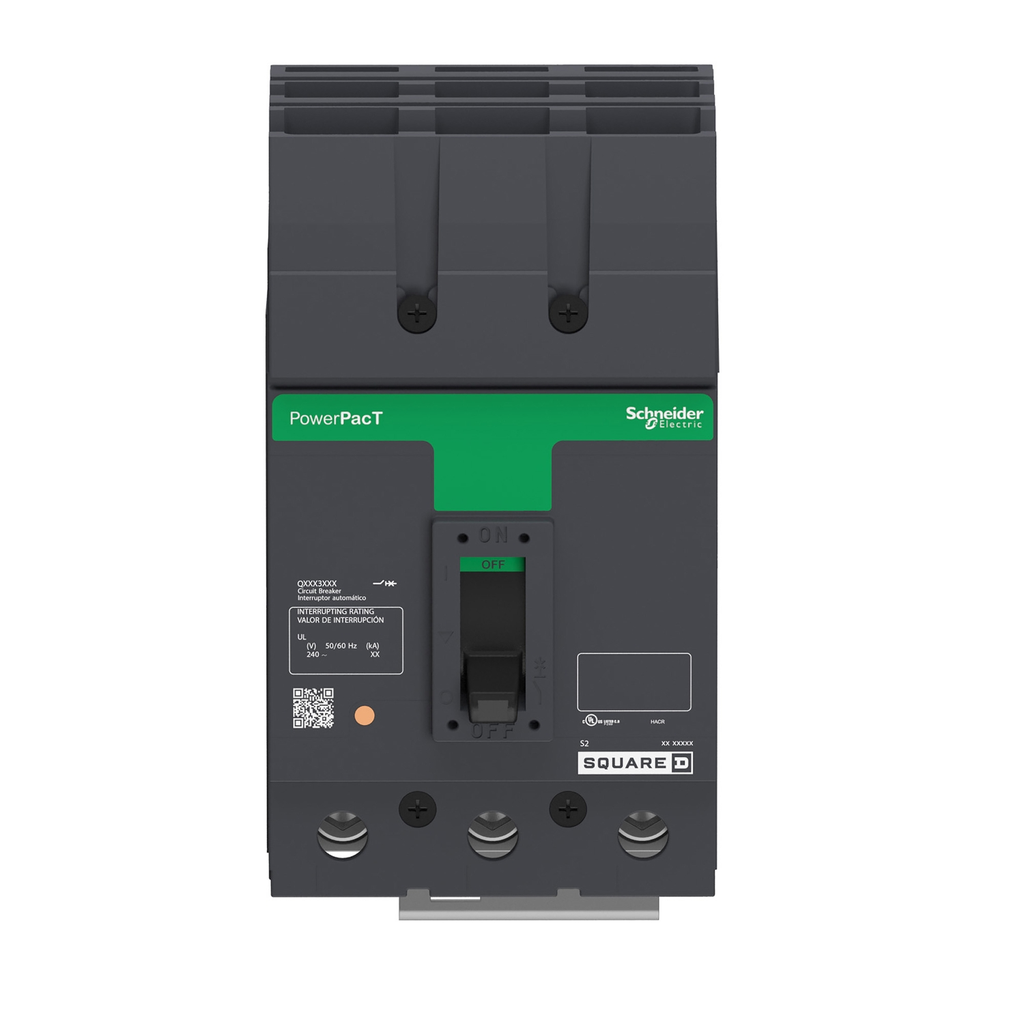

Circuit breaker, PowerPacT Q, 225A, 3 pole, 240VAC, 65kA, I-Line, thermal magnetic, 80%, ABC

MOLDED CASE CIRCUIT BREAKER 24

SQDQGA32225 QGA32225 785901789796
1993.69 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Circuit breaker, PowerPacT Q, 225A, 3 pole, 240VAC, 65kA, I-Line, thermal magnetic, 80%, ABC-2
  • Certifications: CSA, NOM, UL
  • Depth: 3.93 in
  • Height: 6.47 in
  • Line Rated Current: 225 A, 225-225 A
  • Mounting Type: I-Line Bracket)
  • Standard: CSA, NEMA, NOM-003-SCFI-2000, UL
  • Strip Length: 22 mm
  • Trip Point: 2400-2400 A
  • Warranty Length: 18 mth
  • Width: 4.5 in
PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT Q, 225A, 3 pole, circuit breaker has an interrupting rating of 65kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.
QTY
  • Product Description
  • Specifications
PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT Q, 225A, 3 pole, circuit breaker has an interrupting rating of 65kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.
  • Environment
    • Ambient Air Temperature For Operation : 40-70 °C
    • Standards : UL || CSA || NEMA || NOM-003-SCFI-2000
    • Product Certifications : UL || CSA || NOM
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1406032EN
    • Sustainable Offer Status : Green Premium product
    • Pvc Free : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Circularity Profile : N/A
    • Eu Rohs Directive : Compliant with Exemptions
    • Halogen Content Performance : Halogen free product
  • Complementary
    • Mounting Mode : I-Line bracket)
    • Network Frequency : 50/60 Hz
    • Trip Unit Technology : thermal-magnetic
    • Height : 6.47 in
    • [Ue] Rated Operational Voltage : 240 V AC 50/60 Hz UL
    • Tightening Torque : 28-28 N.m 25-150 mm² (AWG 4...300 kcmil)
    • Mounting Support : bracket
    • Breaking Capacity Code : G
    • Magnetic Tripping Current : 2400-2400 A
    • Local Signalling : 1 trip indicator green)
    • Electrical Connection : I-Line connection, line || lugs, load
    • Mounting Height : 4.5 in
    • [Uimp] Rated Impulse Withstand Voltage : 8 kV UL
    • Magnetic Hold Current : 1200 A
    • Control Type : operating handle
    • Circuit Breaker Application : HACR rated
    • Wire Stripping Length : 22 mm
    • Utilisation Category : category A
    • Line Rated Current : 225-225 A
    • Continuous Current Rating : 80 %
    • Breaking Capacity : 65 kA 120/208 V AC 50/60 Hz UL || 65 kA 240 V AC 50/60 Hz UL
    • Mechanical Durability : 1000 cycles loaded || 5000 cycles no load
    • Poles Description : 3P
    • Line Rated Current : 225 A
    • Width : 4.5 in
    • Depth : 3.93 in
    • Phase Connection : ABC
  • Specifications
    • Product Or Component Type : circuit breaker
    • Product Name : PowerPact Q
    • Range : PowerPact
    • Device Application : distribution
