SQUARE D

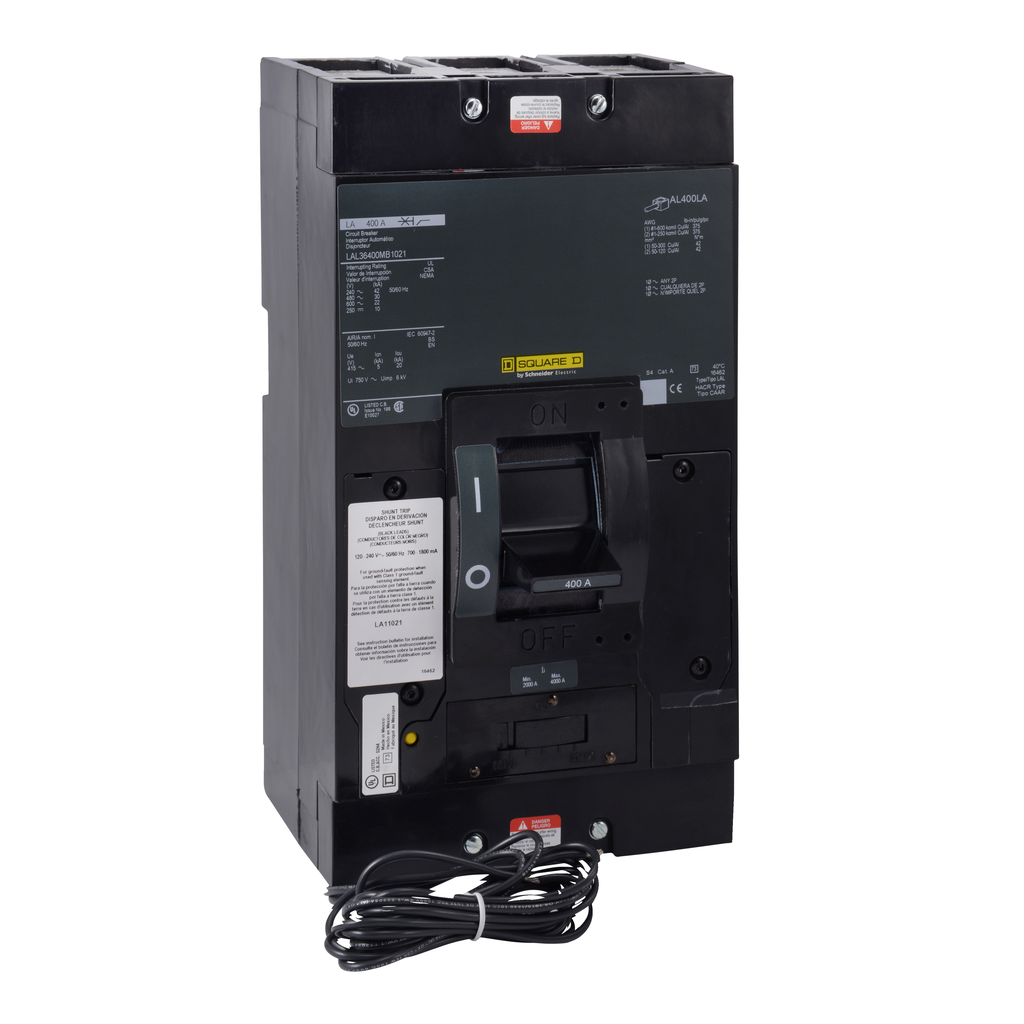

Circuit breaker, LA, I-Line, 400A, 3 pole, 22kA, 600VAC, shunt trip, phase ABC

MOLDED CASE CIRCUIT BREAKER 60

SQDLA364001021 LA364001021 785901341987
8775.00 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Circuit breaker, LA, I-Line, 400A, 3 pole, 22kA, 600VAC, shunt trip, phase ABC-1
  • Country of Origin: USA
  • Depth: 5.84 in
  • Height: 11 in
  • Warranty Length: 18 mth
  • Width: 6 in
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL Listed || CSA || IEC
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Circularity Profile : N/A
    • Take-Back : No
    • Packaging Made With Recycled Cardboard : Yes
    • Environmental Disclosure : ENVPEP1410004EN
    • Halogen Content Performance : Halogen free plastic parts product
    • Packaging Without Single Use Plastic : Yes
    • Pvc Free : Yes
    • Scip Number : 45160aaa-1457-439f-bca7-7bd5246ac23e
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary
    • Circuit Breaker Application : HACR rated
    • Terminal Identifier : AL400LA
    • Height : 11 in
    • Mounting Mode : I-Line
    • Tightening Torque : 13-13 N.m 42-304 mm² (AWG 1...600 kcmil) || 13-13 N.m 42-127 mm² (AWG 1...250 kcmil)
    • Breaking Capacity Code : A
    • Magnetic Tripping Current : 4000-4000 A
    • Poles Description : 3P
    • Line Rated Current : 400 A
    • Wiring Configuration : 3-wire
    • Width : 6 in
    • Electrical Connection : lugs, load || I-Line connection, line
    • Depth : 5.84 in
    • Magnetic Hold Current : 2000 A
    • Phase Connection : ABC
  • Specifications
    • Country of Origin : United States
    • Width : 6 in
    • Height : 11 in
    • Trip Unit Technology : thermal-magnetic
    • Product Or Component Type : circuit breaker
