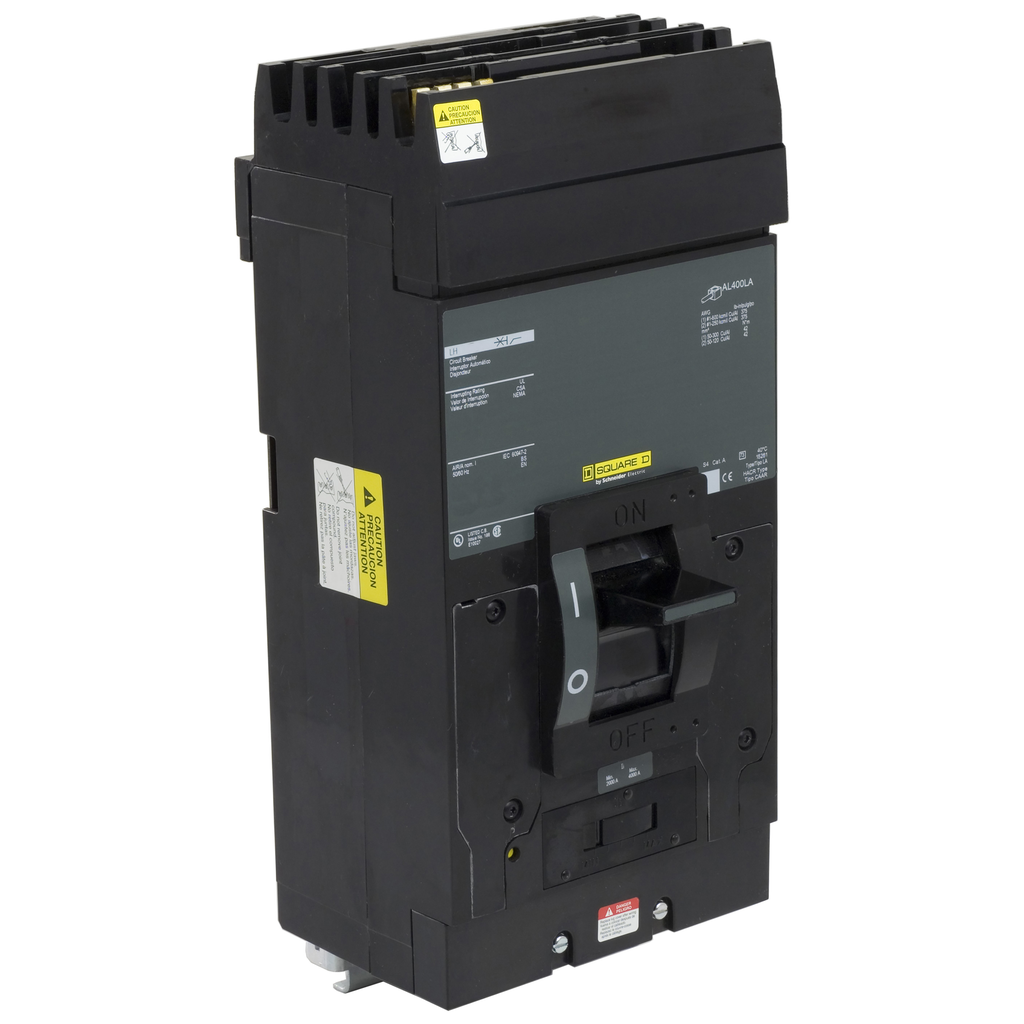

Circuit breaker, LH, I-Line, 350A, 2 pole, 25kA, 600VAC, 50kA, 250VDC, phase AC

CIRCUIT BREAKER, LA, LH, Q4, I

SQDLH26350AC LH26350AC 785901358695
9571.03 / EA
http://schema.org/OutOfStock
Mayer-DDS-Circuit breaker, LH, I-Line, 350A, 2 pole, 25kA, 600VAC, 50kA, 250VDC, phase AC-1
  • Depth: 5.84 in
  • Height: 11 in
  • Warranty Length: 18 mth
  • Width: 6 in
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL Listed || CSA
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Packaging Made With Recycled Cardboard : Yes
    • Environmental Disclosure : ENVPEP1410004EN
    • Halogen Content Performance : Halogen free plastic parts product
    • Packaging Without Single Use Plastic : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Take-Back : No
    • Pvc Free : Yes
  • Complementary
    • Terminal Identifier : AL400LA
    • Height : 11 in
    • Tightening Torque : 13-13 N.m 42-304 mm² (AWG 1...600 kcmil) || 13-13 N.m 42-127 mm² (AWG 1...250 kcmil)
    • Breaking Capacity Code : H
    • Magnetic Tripping Current : 3500-3500 A
    • Electrical Connection : lugs, load || I-Line connection, line
    • Magnetic Hold Current : 1750 A
    • Circuit Breaker Application : HACR rated
    • Mounting Mode : I-Line
    • Poles Description : 2P
    • Line Rated Current : 350 A
    • Wiring Configuration : 2-wire
    • Width : 6 in
    • Depth : 5.84 in
    • Phase Connection : AC
  • Specifications
    • Country of Origin : Mexico
    • Width : 6 in
    • Height : 11 in
    • Trip Unit Technology : thermal-magnetic
    • Product Or Component Type : circuit breaker
