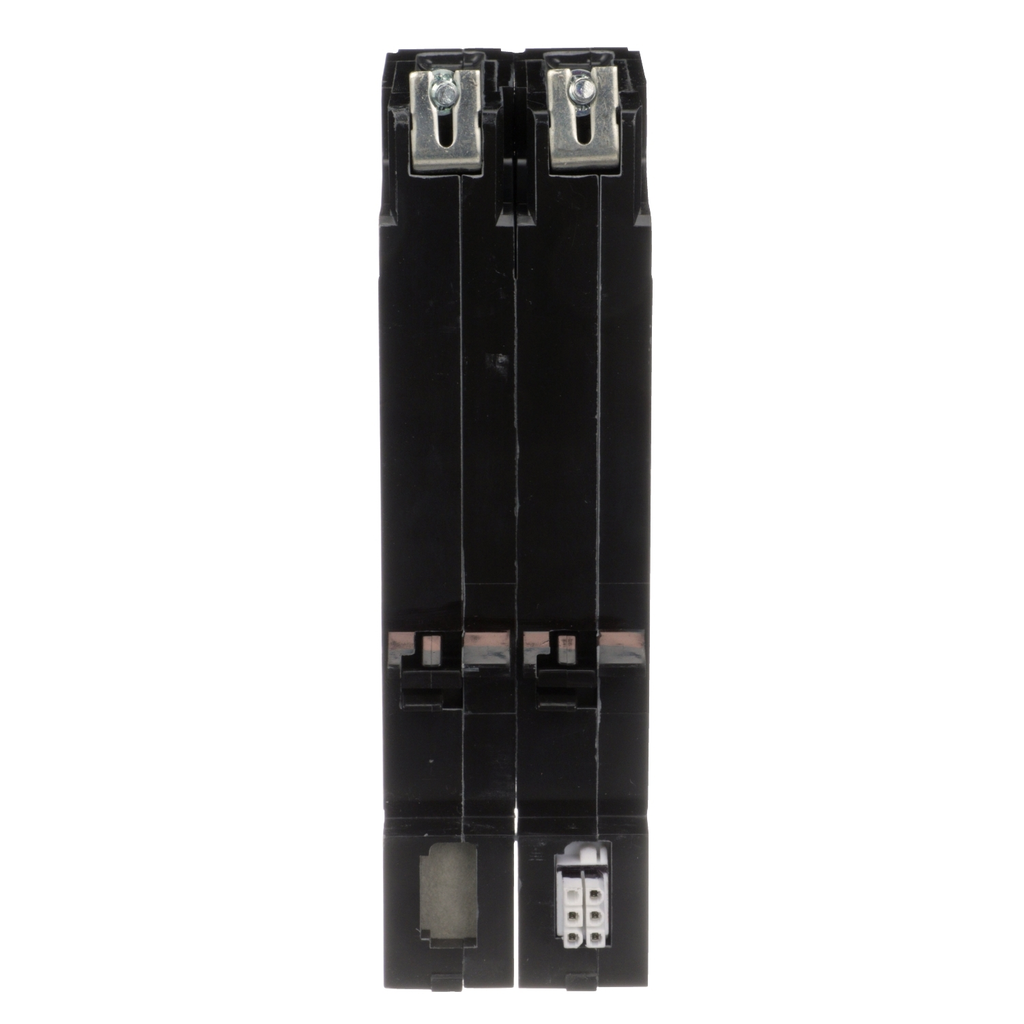

PowerLink™ circuit breakers are one, two, and three pole thermal magnetic circuit breakers that provide arc fault circuit interrupters for PowerLink™ Intelligent panelboard. They can be configured to automatically or manually reset once tripped using a bimetallic strip. This circuit breaker is HACR rated to a current capacity of 20 amperages, allowing for it be ideally used in congruence with HVAC systems. Certified by the Underwriters Laboratory to meet the designed specifications.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0.0325479189
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0.2 kg CO2 eq.
• 0.1814721622
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 6 kg CO2 eq.
• 6.0428256757
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 51 kg CO2 eq.
• 50.548
• Accessory Separate Part Type
• motor for circuit-breaker 24 V DC
• Carbon Footprint Of The Distribution Phase A4
• 0.1580514865
• 0.2 kg CO2 eq.
• AWG Gauge
• AWG 10...AWG 8 aluminium
• AWG 12...AWG 8 copper
• Trip Unit Technology
• thermal-magnetic, standard, LI
• UE Rated Operational Voltage
• 480Y/277 V AC

• Important Information Attributes
• B2B Bullet Point 1 : With a 20A handle ratings
• B2B Bullet Point 2 : Suitable for use on 208Y/120V or 480Y/277V systems
• B2B Bullet Point 3 : Interrupting Ratings: 65kA at 240Vac, 14kA at 480Y/277Vac
• B2B Bullet Point 4 : Rated Endurance On/Off/On cycles: 200,000 operations
• B2B Bullet Point 5 : This product is TAA compliant.
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-18
• HTML Description : Powerlink G3 Controllable Circuit Breaker:480 VAC20 Amp2 PoleControllable Circuit Breaker for use in Square D Powerlink G3 panelboardsType NFCombines the protective features of conventional circuit breakers with the switching functions of a contactor/relayThe panelboard must have a control bus strip for the breaker to plug into
• Manufacturer : Schneider Electric
• Device Type : LV equipment - Low voltage circuit breaker
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Manufacturing Carbon Footprint : 6.0428256757
• Distribution Carbon Footprint : 0.1580514865
• Installation Carbon Footprint : 0.0325479189
• Use Carbon Footprint : 50.548
• End Of Life Carbon Footprint : 0.1814721622
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2212008
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Full Compliance Status : Under investigation
• ROHS EUR Full Compliance Status Id : UNDER_INVESTIGATION
• China ROHS In Scope : No
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• H And D Domain : Safety
• H And D Subrange : COM
• H And D Enrichment Assignment : yes
• H And D Enrichment Function : POWERLINK
• H And D Enrichment Class 3 : Circuit Breakers
• H And D Enrichment Class 4 : MCCB
• Energy Efficiency Optimized : False
• Number Of Spaces Required : 2
• Package Weight Lbs : 1.225 kg
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : circuit breaker
• Range Of Product : Powerlink
• Returnability : Yes
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 57 kg CO2 eq.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 56.9628972432
• Pep Code : ENVPEP2212008
• Pep Verification Date : 2021-11-01
• PCR Version : PCR-ed3-EN-2015 04 02
• PSR Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Product Weight In G : 1225
• Functional Unit Description : Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 277 VAC and rated current 20 A. This protection is ensured in accordance with the following parameters:& 10- Number of poles 1P& 10- Rated breaking capacity 18 kA, 25 kA max& 10- Tripping curve 515-1
• Functional Unit Quantity : 1
• Functional Unit Unit : unit
• Reference Lifetime In Y : 20
• Energy Consumption On Product Lifetime In Kwh : 73.00584
• Nbr Of Units In Pkg : 1
• Warranty In Months : 18
• Energy Model Manufacturing A1 A3 : Energy model used: Mexico
• Energy Model Installation A5 : Electricity mix; AC; 120V; US
• Energy Model Use B6 : Electricity mix; AC; 120V; US
• Energy Model End Of Life C1 C4 : Electricity mix; AC; 120V; US
• Components For Re Use Kg Total Life Cycle : 0
• Components For Re Use Kg Manufacturing A1 A3 : 0
• Components For Re Use Kg Distribution A4 : 0
• Components For Re Use Kg Installation A5 : 0
• Components For Re Use Kg Operational Energy Use B6 : 0
• Components For Re Use Kg End Of Life C1 C4 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.001429717
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.0014292108
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.0000000063
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.0000000012
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.0000004968
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.0000000019
• Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 677.1338804054
• Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 58.2934459459
• Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 2.2204945946
• Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.4220290541
• Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 615.44
• Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 0.7579108108
• Exported Energy Mj By Energy Vector Total Life Cycle : 0.0018973926
• Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.0001783534
• Exported Energy Mj By Energy Vector Distribution A4 : 0
• Exported Energy Mj By Energy Vector Installation A5 : 0.0017190392
• Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
• Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
• Hazardous Waste Disposed Of Kg Total Life Cycle : 20.3961461897
• Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 18.0028648649
• Hazardous Waste Disposed Of Kg Distribution A4 : 0
• Hazardous Waste Disposed Of Kg Installation A5 : 0.0000015951
• Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 1.3515
• Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 1.0417797297
• Materials For Energy Recovery Kg Total Life Cycle : 0.0400118108
• Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
• Materials For Energy Recovery Kg Distribution A4 : 0
• Materials For Energy Recovery Kg Installation A5 : 0
• Materials For Energy Recovery Kg Operational Energy Use B6 : 0
• Materials For Energy Recovery Kg End Of Life C1 C4 : 0.0400118108
• Materials For Recycling Kg Total Life Cycle : 0.8922568919
• Materials For Recycling Kg Manufacturing A1 A3 : 0.1144481081
• Materials For Recycling Kg Distribution A4 : 0
• Materials For Recycling Kg Installation A5 : 0.5971510811
• Materials For Recycling Kg Operational Energy Use B6 : 0
• Materials For Recycling Kg End Of Life C1 C4 : 0.1806577027
• Net Use Of Fresh Water M3 Total Life Cycle : 0.1915647352
• Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.1020921622
• Net Use Of Fresh Water M3 Distribution A4 : 0.0000141451
• Net Use Of Fresh Water M3 Installation A5 : 0.0000035561
• Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.089339
• Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.0001158718
• Non Hazardous Waste Disposed Of Kg Total Life Cycle : 9.4222024027
• Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 1.6805013514
• Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.0056155986
• Non Hazardous Waste Disposed Of Kg Installation A5 : 0.0044113243
• Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 7.7289
• Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.0027741284
• Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.0000019372
• Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.0000010135
• Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.0000000003
• Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.0000000001
• Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.0000009168
• Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.0000000065
• Radioactive Waste Disposed Of Kg Total Life Cycle : 0.0020025739
• Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.0011974541
• Radioactive Waste Disposed Of Kg Distribution A4 : 0.0000039996
• Radioactive Waste Disposed Of Kg Installation A5 : 0.0000008688
• Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.00079524
• Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.0000050115
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 737.8827817568
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 94.6494594595
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 2.2317513514
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.4244790541
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 639.64
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.9370918919
• Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 802.9197075676
• Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 118.8117567568
• Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 2.2347310811
• Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.4251345946
• Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 680.51
• Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 0.9380851351
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 65.0392377738
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 24.1656081081
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0029782068
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0006600697
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 40.869
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0009913892
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 7.206972973
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 7.206972973
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 730.6784574324
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 87.4451351351
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 2.2317513514
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.4244790541
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 639.64
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.9370918919
• Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 2.6111702703
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 2.6111702703
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 62.4283323684
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 21.5547027027
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0029782068
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0006600697
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 40.869
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0009913892
• Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Secondary Materials Kg Total Life Cycle : 0.5407414865
• Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.5407414865
• Use Of Secondary Materials Kg Distribution A4 : 0
• Use Of Secondary Materials Kg Installation A5 : 0
• Use Of Secondary Materials Kg Operational Energy Use B6 : 0
• Use Of Secondary Materials Kg End Of Life C1 C4 : 0
• Air Pollution M3 Total Life Cycle : 5404.5784675676
• Air Pollution M3 Manufacturing A1 A3 : 1097.0040540541
• Air Pollution M3 Distribution A4 : 6.7235945946
• Air Pollution M3 Installation A5 : 1.2981027027
• Air Pollution M3 Operational Energy Use B6 : 4292.7
• Air Pollution M3 End Of Life C1 C4 : 6.8527162162
• Water Pollution M3 Total Life Cycle : 3123.6443
• Water Pollution M3 Manufacturing A1 A3 : 590.3904054054
• Water Pollution M3 Distribution A4 : 25.9911891892
• Water Pollution M3 Installation A5 : 4.9369486486
• Water Pollution M3 Operational Energy Use B6 : 2492
• Water Pollution M3 End Of Life C1 C4 : 10.3257567568
• Acidification Of Soil And Water Kg Equivalent So2 Total Life Cycle : 0.0628271293
• Photochemical Ozone Formation Kg Equivalent C2h4 Total Life Cycle : 0.0093523956
• Water Eutrophication Kg Equivalent P04 3 Total Life Cycle : 0.0158658219
• Acidification Of Soil And Water Kg Equivalent So2 Manufacturing A1 A3 : 0.0133690541
• Acidification Of Soil And Water Kg Equivalent So2 Distribution A4 : 0.0007216243
• Acidification Of Soil And Water Kg Equivalent So2 Installation A5 : 0.0001356373
• Acidification Of Soil And Water Kg Equivalent So2 Operational Energy Use B6 : 0.048398
• Acidification Of Soil And Water Kg Equivalent So2 End Of Life C1 C4 : 0.0002028136
• Global Warming Kg Equivalent Co2 Total Life Cycle : 56.9628972432
• Global Warming Kg Equivalent Co2 Manufacturing A1 A3 : 6.0428256757
• Global Warming Kg Equivalent Co2 Distribution A4 : 0.1580514865
• Global Warming Kg Equivalent Co2 Installation A5 : 0.0325479189
• Global Warming Kg Equivalent Co2 Operational Energy Use B6 : 50.548
• Global Warming Kg Equivalent Co2 End Of Life C1 C4 : 0.1814721622
• Photochemical Ozone Formation Kg Equivalent C2h4 Manufacturing A1 A3 : 0.0015189338
• Photochemical Ozone Formation Kg Equivalent C2h4 Distribution A4 : 0.000051497
• Photochemical Ozone Formation Kg Equivalent C2h4 Installation A5 : 0.0000101364
• Photochemical Ozone Formation Kg Equivalent C2h4 Operational Energy Use B6 : 0.0077522
• Photochemical Ozone Formation Kg Equivalent C2h4 End Of Life C1 C4 : 0.0000196285
• Water Eutrophication Kg Equivalent P04 3 Manufacturing A1 A3 : 0.0028392851
• Water Eutrophication Kg Equivalent P04 3 Distribution A4 : 0.0001662159
• Water Eutrophication Kg Equivalent P04 3 Installation A5 : 0.0000329598
• Water Eutrophication Kg Equivalent P04 3 Operational Energy Use B6 : 0.012755
• Water Eutrophication Kg Equivalent P04 3 End Of Life C1 C4 : 0.0000723611
• General Attributes
• Product Or Component Type : circuit breaker
• Range Of Product : Powerlink
• Environment Attributes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=423253821&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Carbon Footprint : 56.9628972432
• Circularity Profile : ENVEOLI2212008
• Environmental Disclosure : ENVPEP2212008
• EU ROHS Directive : Under investigation
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2212008
• Pep Verification Date : 2021-11-01
• PCR Version : PCR-ed3-EN-2015 04 02
• PSR Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico
• Compliance : TAA
