SQUARE D

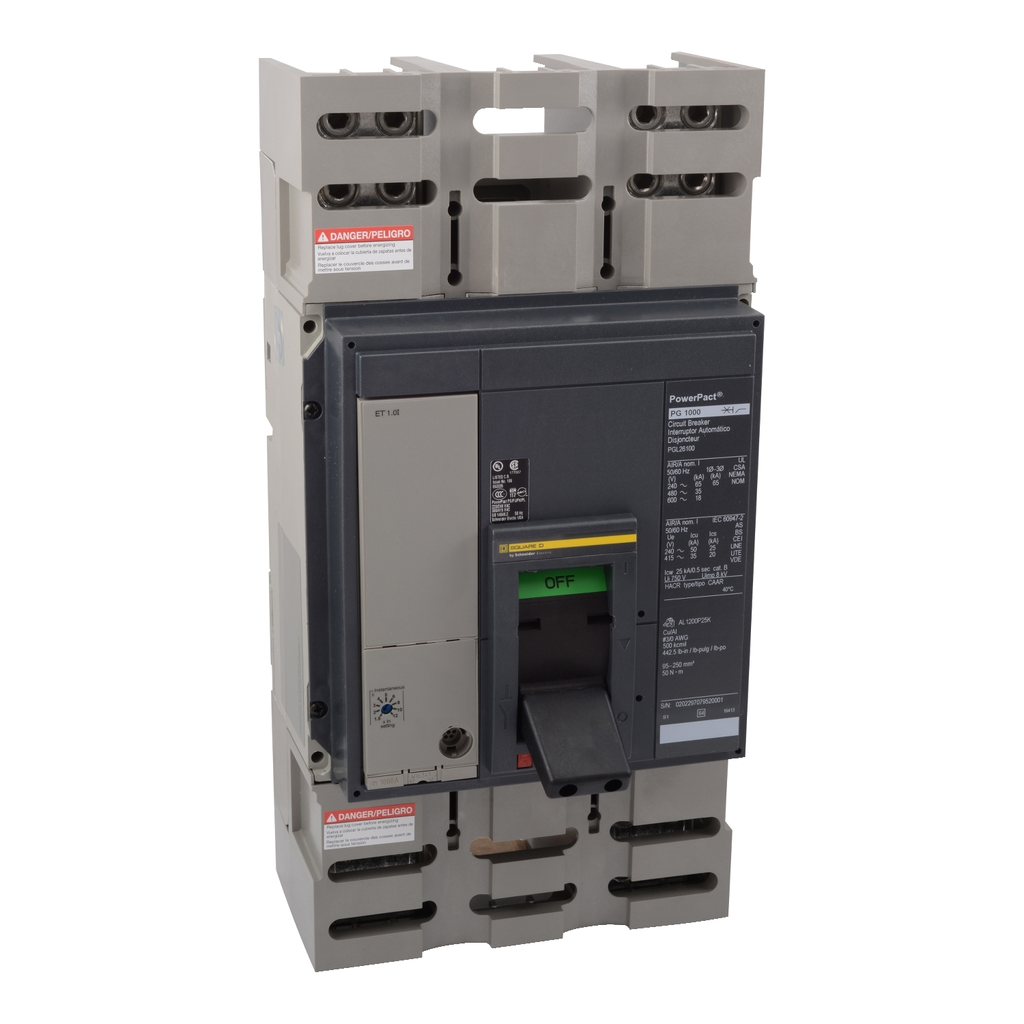

Automatic switch, PowerPacT P, 600A, 3 pole, 600VAC, 25kA, busbar, magnetic

AUTOMATIC MOLDED CASE SWITCH 6

SQDPJF36000S60 PJF36000S60 3606486293850
9876.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-Automatic switch, PowerPacT P, 600A, 3 pole, 600VAC, 25kA, busbar, magnetic-1
  • Depth: 8.05 in
  • Height: 16.16 in
  • Warranty Length: 18 mth
  • Width: 8.27 in
PowerPacT P-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the P-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. PowerPacT P-Frame switches are available in unit mount, I-Line, plug-in, or drawout constructions. This switch has a busbar connection. This PowerPacT P, 600A, 3 pole, automatic switch has a short circuit withstand current rating of 25kA at 600VAC. PowerPacT P automatic switches comply to UL, CSA, ANCE, and IEC standards.
QTY
  • Product Description
  • Features
  • Specifications
PowerPacT P-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the P-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. PowerPacT P-Frame switches are available in unit mount, I-Line, plug-in, or drawout constructions. This switch has a busbar connection. This PowerPacT P, 600A, 3 pole, automatic switch has a short circuit withstand current rating of 25kA at 600VAC. PowerPacT P automatic switches comply to UL, CSA, ANCE, and IEC standards.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environmental data
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1407012EN
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Circularity Profile : ENVEOLI1407012EN
    • Take-Back : No
    • Pvc Free : Yes
    • Eu Rohs Directive : Compliant
  • Complementary
    • Terminal Identifier : AL800M23K
    • Height : 16.16 in
    • Tightening Torque : 50-50 N.m 95-240 mm² (3 x AWG 3/0...500 kcmil)
    • Breaking Capacity Code : J
    • Electrical Connection : busbar connection, line || busbar connection, load
    • Poles Description : 3P
    • Width : 8.27 in
    • Depth : 8.05 in
  • Specifications
    • Country of Origin : Mexico
    • Width : 8.27 in
    • Height : 16.16 in
    • Product Or Component Type : automatic switch
    • Device Application : distribution
  • Contractual warranty
    • Warranty : 18 months
