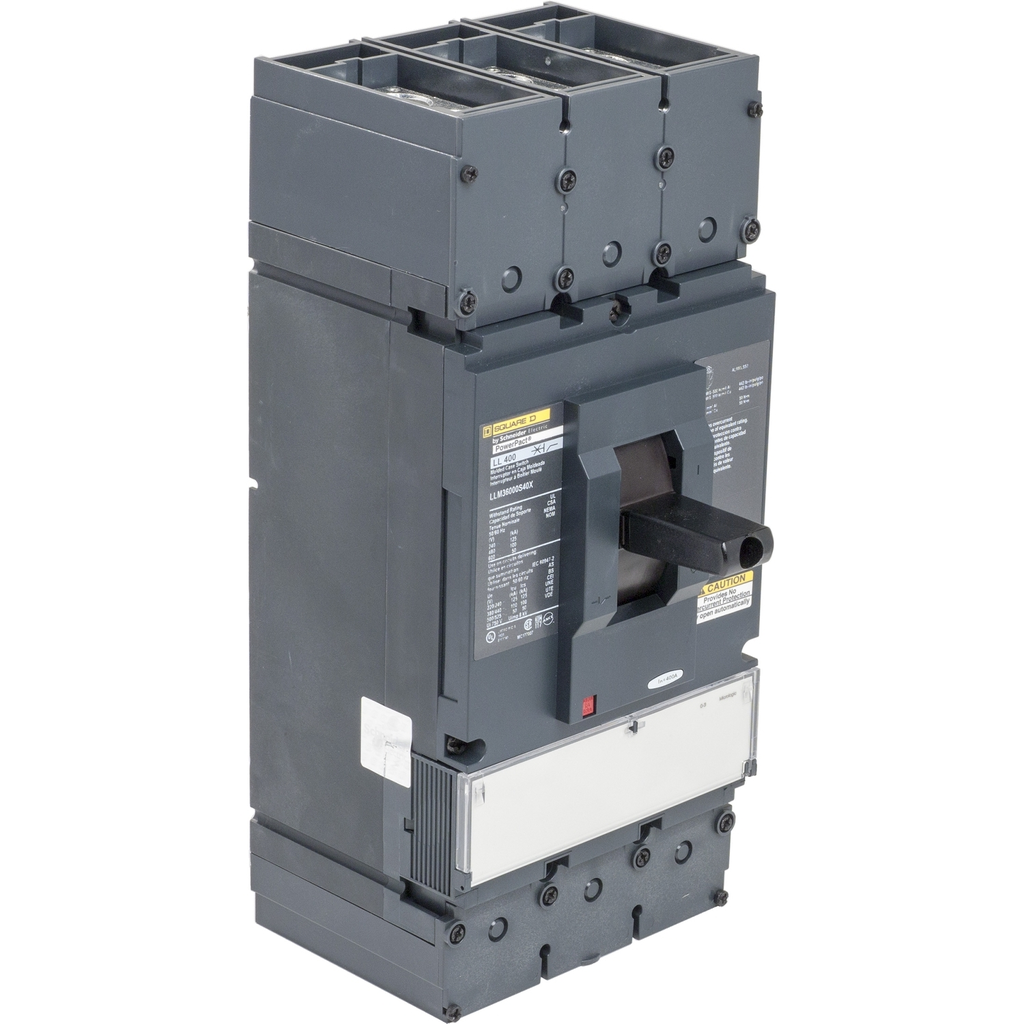

Automatic switch, PowerPacT L, 400A, 3 pole, 600VAC, 50kA, lugs, magnetic

AUTOMATIC MOLDED CASE SWITCH 6

SQDLLM36000S40X LLM36000S40X 785901093442
6119.50 / EA
http://schema.org/OutOfStock
Mayer-DDS-Automatic switch, PowerPacT L, 400A, 3 pole, 600VAC, 50kA, lugs, magnetic-1
  • Certifications: CCC, CE, CSA, IEC, NMX, UL Listed
  • Depth: 6.61 in
  • Height: 13.38 in
  • Line Rated Current: 400 A
  • Mounting Type: Unit Mount
  • Trip Point: 4800-4800 A
  • Width: 5.51 in
The PowerPact H, J, and L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. H and J-frame circuit breakers are available with either thermal-magnetic or Micrologic electronic trip units. L-frame circuit breakers are available with Micrologic electronic trip units only.
QTY
  • Specifications
  • Offer Sustainability
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Circularity Profile : ENVEOLI2206029EN
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2206029EN
    • Sustainable Offer Status : Green Premium product
    • Pvc Free : Yes
    • Eu Rohs Directive : Compliant with Exemptions
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary
    • Terminal Identifier : AL600LS52K3
    • Height : 13.38 in
    • Mounting Mode : unit mount
    • Short-Circuit Withstand : 125 kA 240 V UL 489 || 100 kA 480 V UL 489 || 50 kA 600 V UL 489
    • Tightening Torque : 50-50 N.m 70-240 mm² (AWG 2/0...500 kcmil)
    • Breaking Capacity Code : L
    • Magnetic Tripping Current : 4800-4800 A
    • Poles Description : 3P
    • Line Rated Current : 400 A
    • Width : 5.51 in
    • Electrical Connection : lugs, line || terminal nut, load
    • Depth : 6.61 in
    • [Ue] Rated Operational Voltage : 600 V AC
    • Awg Gauge : 2 x AWG 2/0...500 kcmil ( aluminium/copper )
  • Specifications
    • Range Of Product : PowerPact L
    • Product Or Component Type : automatic switch
    • Trip Unit Technology : magnetic
  • Environment
    • Product Certifications : IEC || NMX || UL Listed || CCC || CE || CSA
