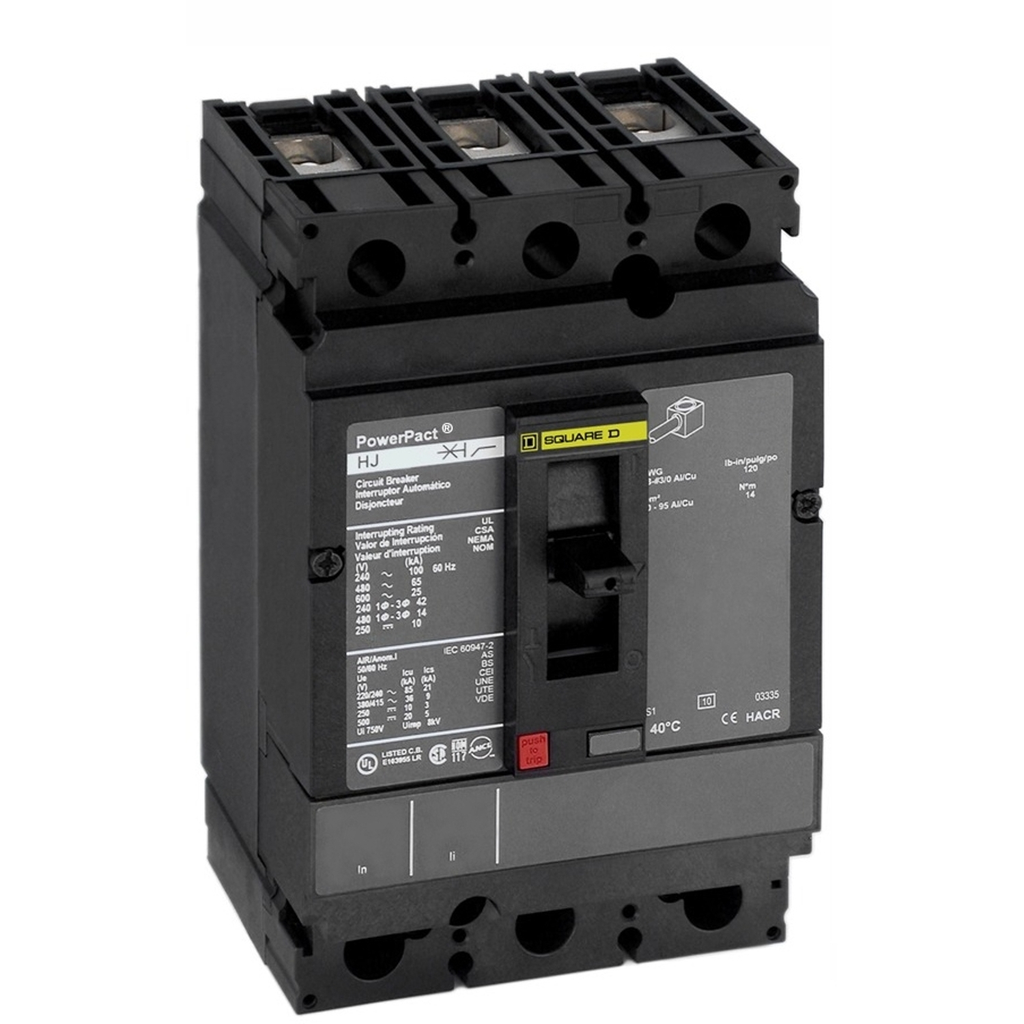

PowerPacT H-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possib

• Prop 65
• WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go t
• Carbon Footprint Of The Installation Phase A5
• 0.02105042935025172
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 4 kg CO2 eq.
• 3.9080579711615675
• Ue Rated Operational Voltage
• 600 V AC
• 250 V DC
• Electrical Connection
• lugs, line
• lugs, load
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 11 kg CO2 eq.
• 10.635774284338401
• Accessories
• S29450
• S29386
• S29451
• S29390
• S29452
• S37423
• S37447
• S37446
• S29329
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 435 kg CO2 eq.
• 435.3433588653077
• Persona Type Ids
• LC
• OM
• OM8
• PB
• Short Circuit Withstand
• 125 kA 240 V UL 489
• 100 kA 480 V UL 489
• 50 kA 600 V UL 489
• Carbon Footprint Of The Distribution Phase A4
• 0.4393051232805979
• 0.4 kg CO2 eq.
• Tightening Torque
• 5-5 N.m 2.5-95 mm² (AWG 14...AWG 3/0)
• AWG Gauge
• x AWG 14...AWG 3/0 ( aluminium/copper )
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Product Certifications
• CE
• IEC
• CCC
• CSA
• NMX
• UL Listed

• Complementary Attributes
• Line Rated Current : 150 A
• Important Information Attributes
• Country Id : US
• B2B Bullet Point 1 : To open and close a circuit under normal operating conditions
• B2B Bullet Point 2 : Can make and break its rated current
• B2B Bullet Point 3 : Factory set nonadjustable trip point to protect the molded case switch
• B2B Bullet Point 4 : A wide range of accessories, auxiliaries, and lug connections available
• B2B Bullet Point 5 : UL 489 Listed, CSA, ANCE, IEC certified
• Local Data Status : Publishable
• Local Publishable Date : 2025-09-17
• ETIM 10 : EC000228
• Device Type : LV equipment - LV switch - disconnector
• Serviceability : No
• Traceability : Yes
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Manufacturing Carbon Footprint : 10.6357742843384
• Distribution Carbon Footprint : 0.439305123280598
• Installation Carbon Footprint : 2.10504293502517e-02
• Use Carbon Footprint : 435.343358865308
• End Of Life Carbon Footprint : 3.90805797116157
• Legacy WEEE Scope : In
• WEEE Product Category : 4
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2206027_V2
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 2539
• ROHS Eur Full Compliance Status : Compliant with Exemptions
• ROHS Eur Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Magnetic Tripping Current : 2250-2250 A
• Mounting Mode : unit mount
• Package Weight Lbs : 2.09 kg
• Poles Description : 3P
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : automatic switch
• Range Of Product : PowerPact H
• Returnability : Yes
• Sustainable Packaging : No
• Terminal Identifier : AL150HD
• Total Lifecycle Carbon Footprint : 450 kg CO2 eq.
• Trip Unit Technology : magnetic
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 450.3475466734385
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : automatic switch
• Range Of Product : PowerPact H
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=424509&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Carbon Footprint : 450.347546673439
• Circularity Profile : ENVEOLI2206027_V2
• Environmental Disclosure : ENVPEP2206027_V2
• Eu Rohs Directive : Compliant with Exemptions
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : United States
• Height : 6.4 in
• Width : 2.12 in
• Depth : 4.36 in
