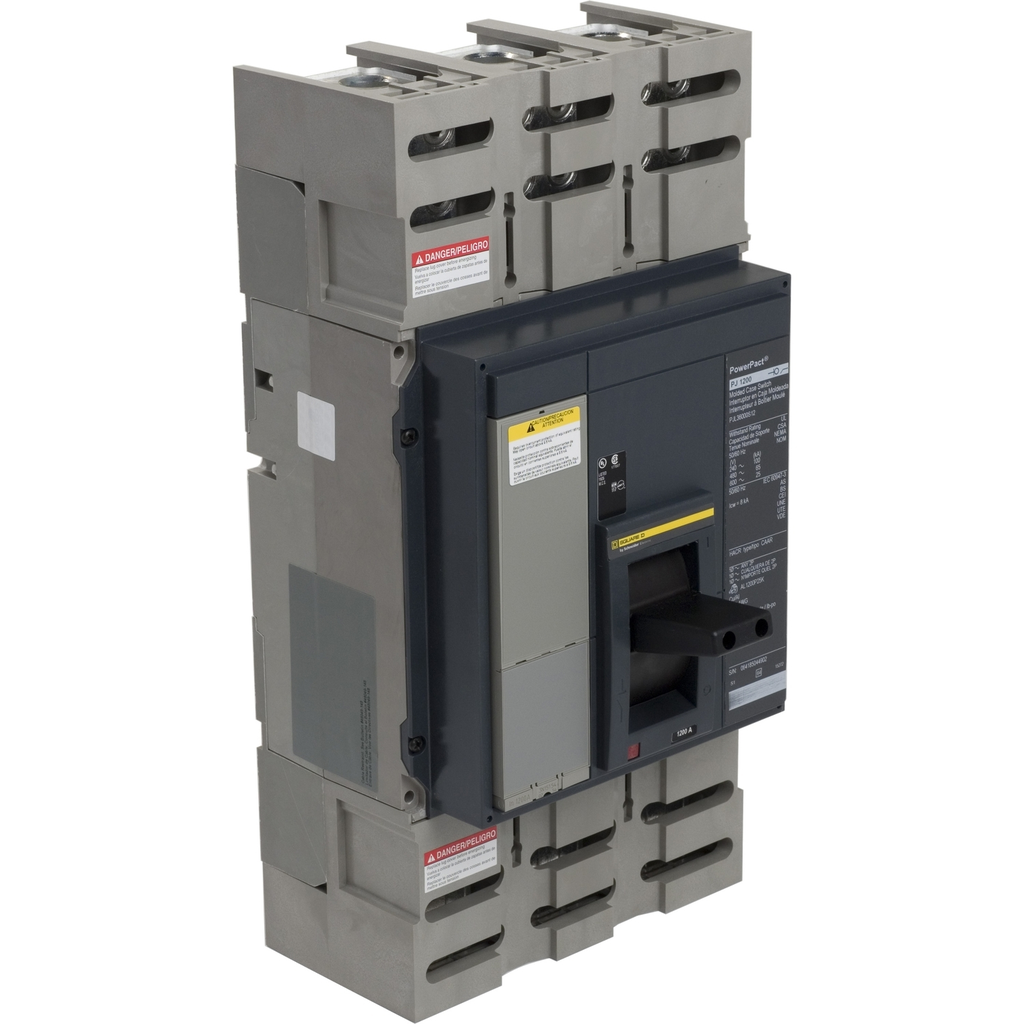

PowerPacT P-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the P-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. PowerPacT P-Frame switches are available in unit mount, I-Line, plug-in, or drawout constructions. This switch has lugs on both the line and load sides. This PowerPacT P, 1000A, 3 pole, automatic switch has a short circuit withstand current rating of 25kA at 600VAC. PowerPacT P automatic switches comply to UL, CSA, ANCE, and IEC standards.

• Prop 65
• WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Environmental data
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP2206033_V2
• Packaging Without Single Use Plastic : No
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Removable Battery : Yes
• Circularity Profile : ENVEOLI2206033_V2
• Take-Back : No
• Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 1113.4793489615806
• Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 108.38202238849306
• Carbon Footprint Of The Distribution Phase [A4] : 4 kg CO2 eq.
• Pvc Free : Yes
• Carbon Footprint Of The Installation Phase [A5] : 3 kg CO2 eq.
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 1 248 kg CO2 eq.
• Eu Rohs Directive : Not compliant
• Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 19.219047362819378
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 1247.799236386368
• Complementary
• Terminal Identifier : AL800M23K
• Height : 16.16 in
• Tightening Torque : 50-50 N.m 95-240 mm² (3 x AWG 3/0...3 x 500 kcmil) || 1.0-1.3 N.m
• Breaking Capacity Code : J
• Electrical Connection : lugs, line || lugs, load
• Poles Description : 3P
• Width : 8.27 in
• Depth : 8.05 in
• Specifications
• Country of Origin : Mexico
• Width : 8.27 in
• Height : 16.16 in
• Product Or Component Type : automatic switch
• Device Application : distribution
• Contractual warranty
• Warranty : 18 months
