SQUARE D

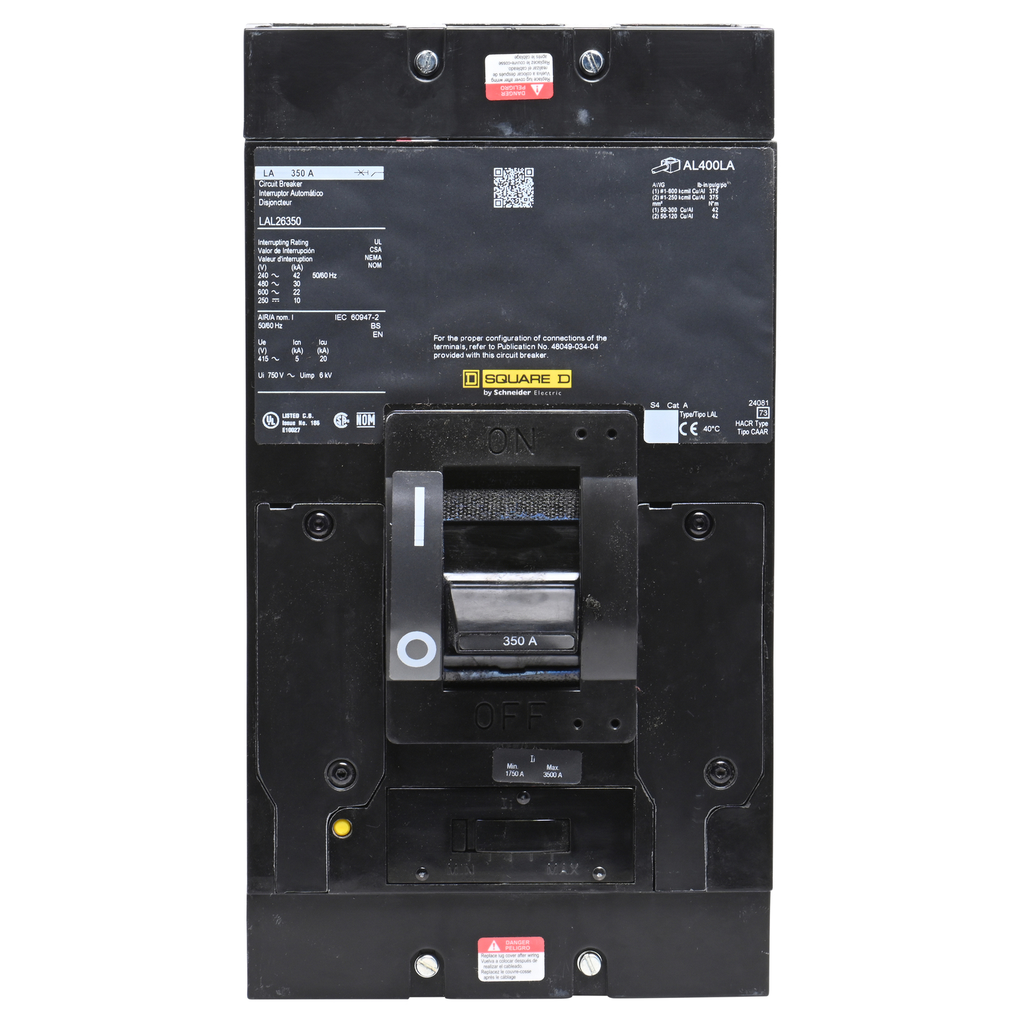

Circuit breaker, LA, 350A, 2 pole, 600VAC, 22kA, 250VDC, 10kA, lugs, thermal magnetic

MOLDED CASE CIRCUIT BREAKER 60

SQDLAL26350 LAL26350 785901426486
4941.49 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Circuit breaker, LA, 350A, 2 pole, 600VAC, 22kA, 250VDC, 10kA, lugs, thermal magnetic-1
  • Certifications: CSA, IEC, UL Listed
  • Depth: 5.84 in
  • Height: 11 in
  • Line Rated Current: 350 A
  • Mounting Type: Unit Mount
  • Trip Point: 3500-3500 A
  • Warranty Length: 18 mth
  • Width: 6 in
Square D LA molded case circuit breakers provide thermal magnetic protection. Their primary function is automatic opening of a circuit under overload or short circuit conditions or manual opening. LA circuit breakers contain thermal (overload) and magnetic (short circuit) sensing elements in each pole. Push-to-Trip allows the circuit breaker to be manually tripped without exposure to live parts. This Square D LA molded case circuit breaker is a 2 pole unit mount breaker, 350A and 600VAC. The thermal magnetic circuit breaker has an interrupting rating of 22kA for 600VAC and 10kA for 250VDC. LA breakers are UL 489, CSA, IEC certified.
QTY
  • Product Description
  • Specifications
Square D LA molded case circuit breakers provide thermal magnetic protection. Their primary function is automatic opening of a circuit under overload or short circuit conditions or manual opening. LA circuit breakers contain thermal (overload) and magnetic (short circuit) sensing elements in each pole. Push-to-Trip allows the circuit breaker to be manually tripped without exposure to live parts. This Square D LA molded case circuit breaker is a 2 pole unit mount breaker, 350A and 600VAC. The thermal magnetic circuit breaker has an interrupting rating of 22kA for 600VAC and 10kA for 250VDC. LA breakers are UL 489, CSA, IEC certified.
  • Environment
    • Product Certifications : IEC || CSA || UL Listed
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1410004EN
    • Sustainable Offer Status : Green Premium product
    • Pvc Free : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Circularity Profile : N/A
    • Eu Rohs Directive : Compliant with Exemptions
    • Halogen Content Performance : Halogen free plastic parts product
  • Complementary
    • Terminal Identifier : AL400LA
    • Height : 11 in
    • Tightening Torque : 13-13 N.m 42-304 mm² (AWG 1...600 kcmil) || 13-13 N.m 42-127 mm² (AWG 1...250 kcmil)
    • Magnetic Tripping Current : 3500-3500 A
    • Electrical Connection : lugs, load || lugs, line
    • Magnetic Hold Current : 1750 A
    • Circuit Breaker Application : HACR rated
    • Mounting Mode : unit mount
    • Poles Description : 2P
    • Line Rated Current : 350 A
    • Width : 6 in
    • Depth : 5.84 in
  • Specifications
    • Trip Unit Technology : thermal-magnetic
    • Product Or Component Type : circuit breaker
