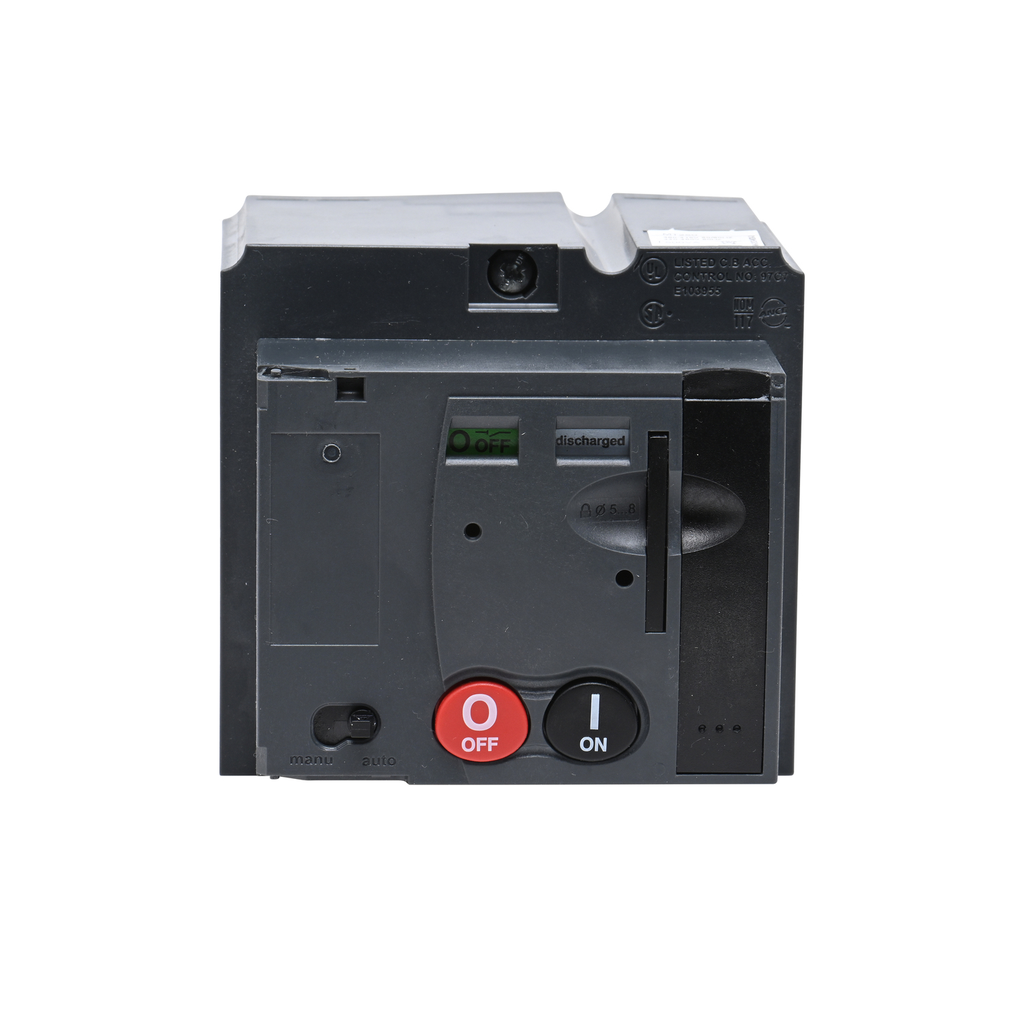

Circuit breaker accessory, PowerPacT J, motor operator, MH, 440VAC to 480VAC, 60Hz

CB MOTOR OPERATOR 380-480V AC

SQDS31542 S31542 785901979456
2097.12 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Circuit breaker accessory, PowerPacT J, motor operator, MH, 440VAC to 480VAC, 60Hz-2
  • Country of Origin: USA
  • Warranty Length: 18 mth
Square D PowerPact H, J and L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits  Molded case circuit breakers are available with either thermal-magnetic or Micrologic electronic trip units. L-frame breakers are performed only with Micrologic electronic units The motor operator remotely operates the circuit breaker featuring easy and sure operation This field installable Motor operator with rated voltage of 440/480VAC 60Hz is for use with PowerPacT J-frame ciruit breakers. This accessory provides double insulation front face, suitability for isolation and remains padlocking possible along with all visible circuit breacer indications and information such as trip unit settings and circuit breaker condition.
QTY
  • Product Description
  • Features
  • Specifications
Square D PowerPact H, J and L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits  Molded case circuit breakers are available with either thermal-magnetic or Micrologic electronic trip units. L-frame breakers are performed only with Micrologic electronic units The motor operator remotely operates the circuit breaker featuring easy and sure operation This field installable Motor operator with rated voltage of 440/480VAC 60Hz is for use with PowerPacT J-frame ciruit breakers. This accessory provides double insulation front face, suitability for isolation and remains padlocking possible along with all visible circuit breacer indications and information such as trip unit settings and circuit breaker condition.
  • Prop 65
    • WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : CSA || UL Listed
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2308038EN
    • California Proposition 65 : WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Circularity Profile : ENVEOLI2308038EN
    • Take-Back : No
    • Global Warming ; Total Life Cycle​ : 14 kg CO2 eq.
    • Eu Rohs Directive : Compliant
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 13.703144870624051
  • Complementary
    • [Uc] Control Circuit Voltage : 440 V AC 60 Hz || 480 V AC
  • Specifications
    • Country of Origin : United States
    • Range Of Product : PowerPact J
    • Product Or Component Type : motor mechanism
    • Device Application : control
