Circuit breaker, Q4, 250A, 3 pole, 240VAC, 25kA, lugs, thermal magnetic

MOLDED CASE CIRCUIT BREAKER 24

SQDQ4L3250 Q4L3250 785901649250
3760.03 / EACH
http://schema.org/OutOfStock

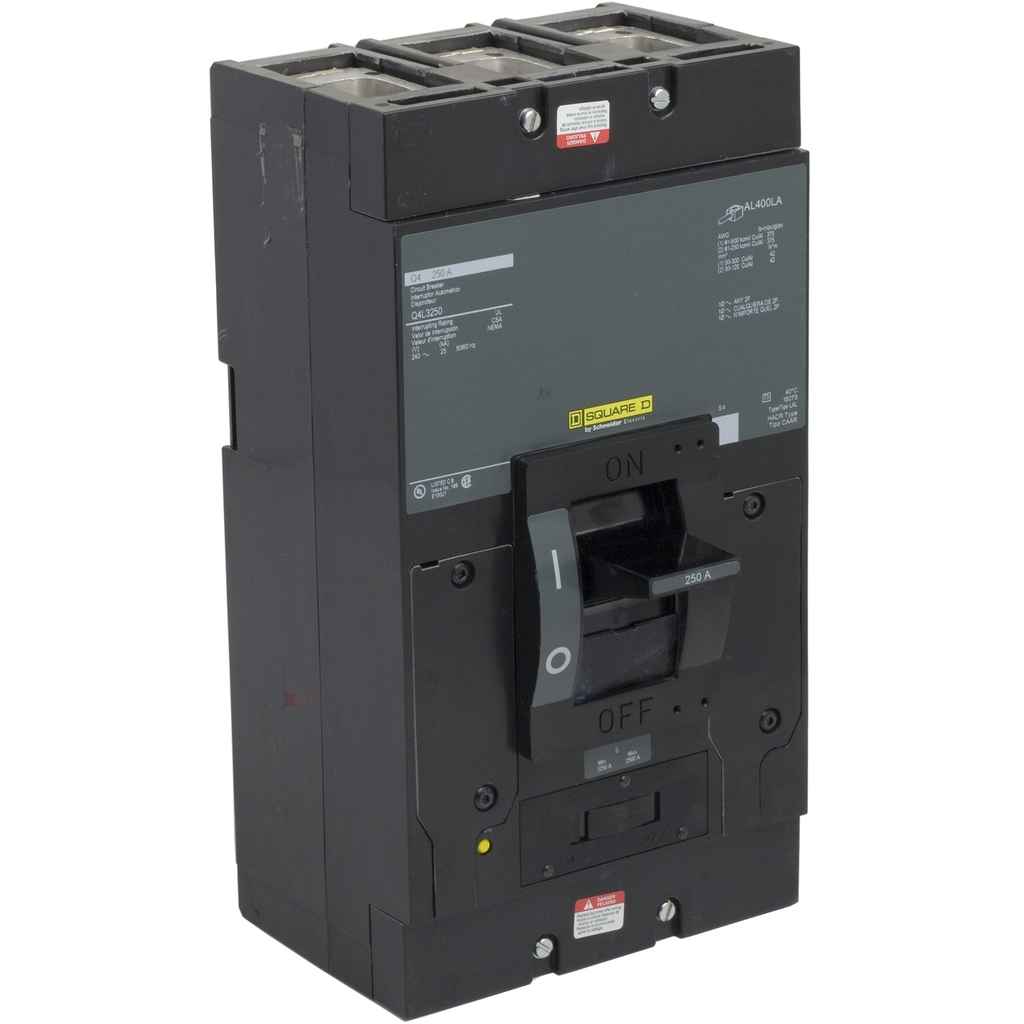

Mayer-DDS-Circuit breaker, Q4, 250A, 3 pole, 240VAC, 25kA, lugs, thermal magnetic-2
  • Country of Origin: Mexico
  • Depth: 5.84 in
  • Height: 11 in
  • Warranty Length: 18 mth
  • Width: 6 in
Square D Q4 molded case circuit breakers provide thermal magnetic protection. Their primary function is automatic opening of a circuit under overload or short circuit conditions or manual opening. Q4 circuit breakers can be used for multiple applications such as construction, in commercial and industrial buildings, for control equipment panels for OEM commercial, and in mines. Push-to-Trip allows the circuit breaker to be manually tripped without exposure to live parts. This Square D Q4 molded case circuit breaker is a 3 pole unit mount breaker, 250A and 240VAC, with lugs. The thermal magnetic circuit breaker has an interrupting rating of 25kA at 240VAC. All Q4 molded case circuit breakers have trip indication of the operating handle in the central position when the breaker is tripped. Q4 breakers are UL 489, CSA, IEC certified.
QTY
  • Product Description
  • Features
  • Specifications
Square D Q4 molded case circuit breakers provide thermal magnetic protection. Their primary function is automatic opening of a circuit under overload or short circuit conditions or manual opening. Q4 circuit breakers can be used for multiple applications such as construction, in commercial and industrial buildings, for control equipment panels for OEM commercial, and in mines. Push-to-Trip allows the circuit breaker to be manually tripped without exposure to live parts. This Square D Q4 molded case circuit breaker is a 3 pole unit mount breaker, 250A and 240VAC, with lugs. The thermal magnetic circuit breaker has an interrupting rating of 25kA at 240VAC. All Q4 molded case circuit breakers have trip indication of the operating handle in the central position when the breaker is tripped. Q4 breakers are UL 489, CSA, IEC certified.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : CSA || IEC || UL Listed
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2311048_V2
    • Halogen Content Performance : Halogen free plastic parts product
    • Packaging Without Single Use Plastic : Yes
    • Scip Number : 45160aaa-1457-439f-bca7-7bd5246ac23e
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : N/A
    • Take-Back : No
    • Pvc Free : Yes
    • Sustainable Packaging : Yes
    • Global Warming ; Total Life Cycle​ : 67 kg CO2 eq.
    • Eu Rohs Directive : Compliant with Exemptions
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 67.39074607282468
  • Complementary
    • Terminal Identifier : AL400LA
    • Height : 11 in
    • Tightening Torque : 42-42 N.m 50-300 mm² (AWG 1...600 kcmil) || 42-42 N.m 50-120 mm² (AWG 1...250 kcmil)
    • Breaking Capacity Code : Q4
    • Magnetic Tripping Current : 2500-2500 A
    • Electrical Connection : lugs, load || lugs, line
    • Magnetic Hold Current : 1250 A
    • Mounting Mode : unit mount
    • Poles Description : 3P
    • Line Rated Current : 250 A
    • Width : 6 in
    • Depth : 5.84 in
  • Specifications
    • Country of Origin : Mexico
    • Width : 6 in
    • Height : 11 in
    • Trip Unit Technology : thermal-magnetic
    • Product Or Component Type : circuit breaker
