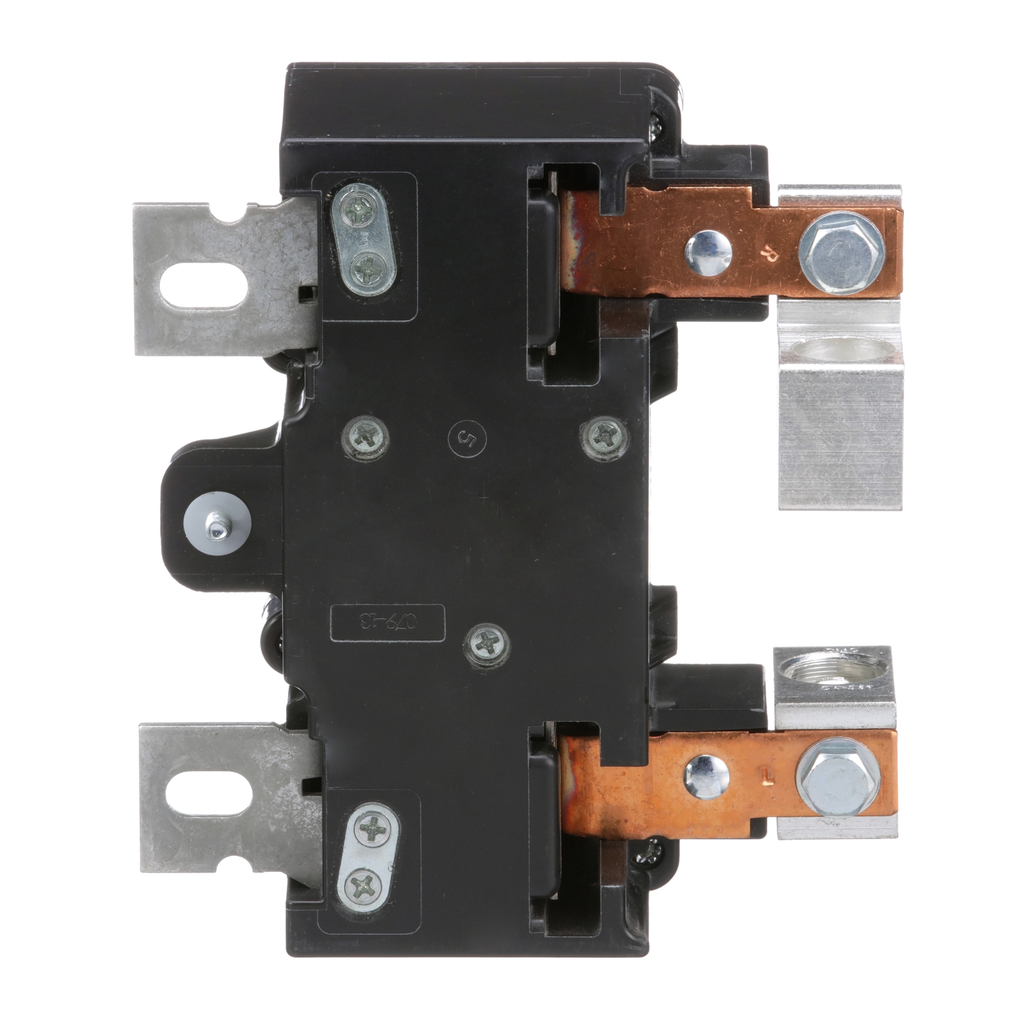

Main breaker, QO, 150A, 2 pole, 120/240VAC, 10kA, bolt on, for metering devices

MINIATURE CIRCUIT BREAKER 120/

SQDQOM2150MM QOM2150MM 785901765219
496.62 / EACH
http://schema.org/OutOfStock

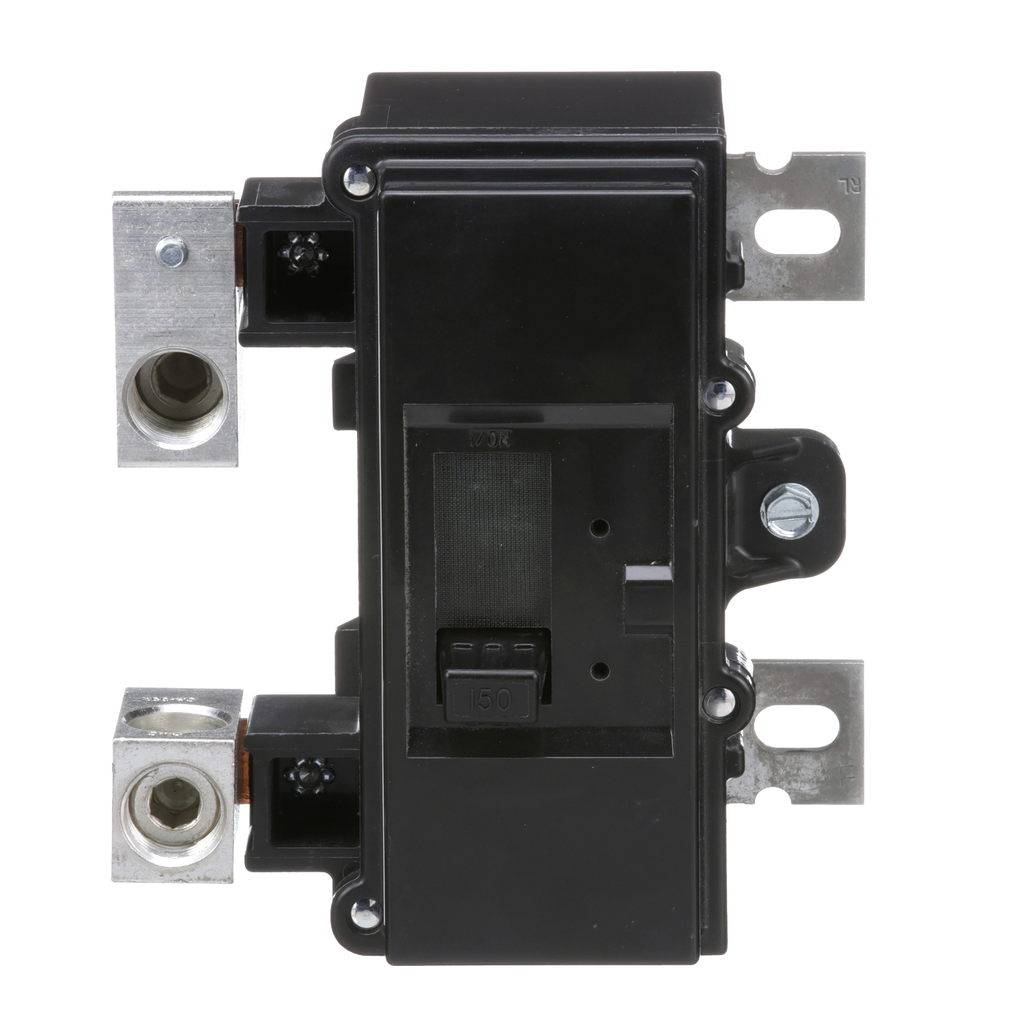

Mayer-DDS-Main breaker, QO, 150A, 2 pole, 120/240VAC, 10kA, bolt on, for metering devices-2
  • Depth: 91 mm
  • Height: 142 mm
  • Net Weight: 1.175 kg
  • Warranty Length: 18 mth
  • Weight: 1.175 kg
  • Width: 129 mm
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO main breaker is rated at 150A at 120/240VAC. This unit provides 10kA breaking capacity and bolt on mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
QTY
  • Product Description
  • Specifications
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO main breaker is rated at 150A at 120/240VAC. This unit provides 10kA breaking capacity and bolt on mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
  • Environment
    • Product Certifications : UL Listed || CSA
    • Ambient Air Temperature For Operation : 40 °C
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Packaging Without Single Use Plastic : No
    • Scip Number : 770cc9ea-53d2-4d3d-a57a-062b35abd847
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Take-Back : No
    • Global Warming ; Total Life Cycle​ : 253 kg CO2 eq.
    • Eu Rohs Directive : Compliant with Exemptions
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 253.4763310497
  • Complementary
    • Height : 142 mm
    • Tightening Torque : 6-6 N.m 4-65 mm² (AWG 12...AWG 2/0)
    • Phase : 1 phase
    • Net Weight : 1.175 kg
    • Product Destination : QO load center
    • Breaking Capacity : 10 kA 120/240 V AC
    • Awg Gauge : AWG 4...300 kcmil copper or aluminium
    • Width : 129 mm
    • Depth : 91 mm
    • Load Center Type : main breaker
  • Specifications
    • Width : 129 mm
    • Height : 142 mm
    • Weight : 1.175 kg
    • Range Of Product : QO
    • Product Or Component Type : miniature circuit-breaker
    • Circuit Breaker Application : primary main breaker
    • Mounting Mode : bolt-on
    • Poles Description : 2P
    • Electrical Connection : lugs
    • Line Rated Current : 150 A
    • Device Short Name : QOM2
    • [Ue] Rated Operational Voltage : 120/240 V AC
