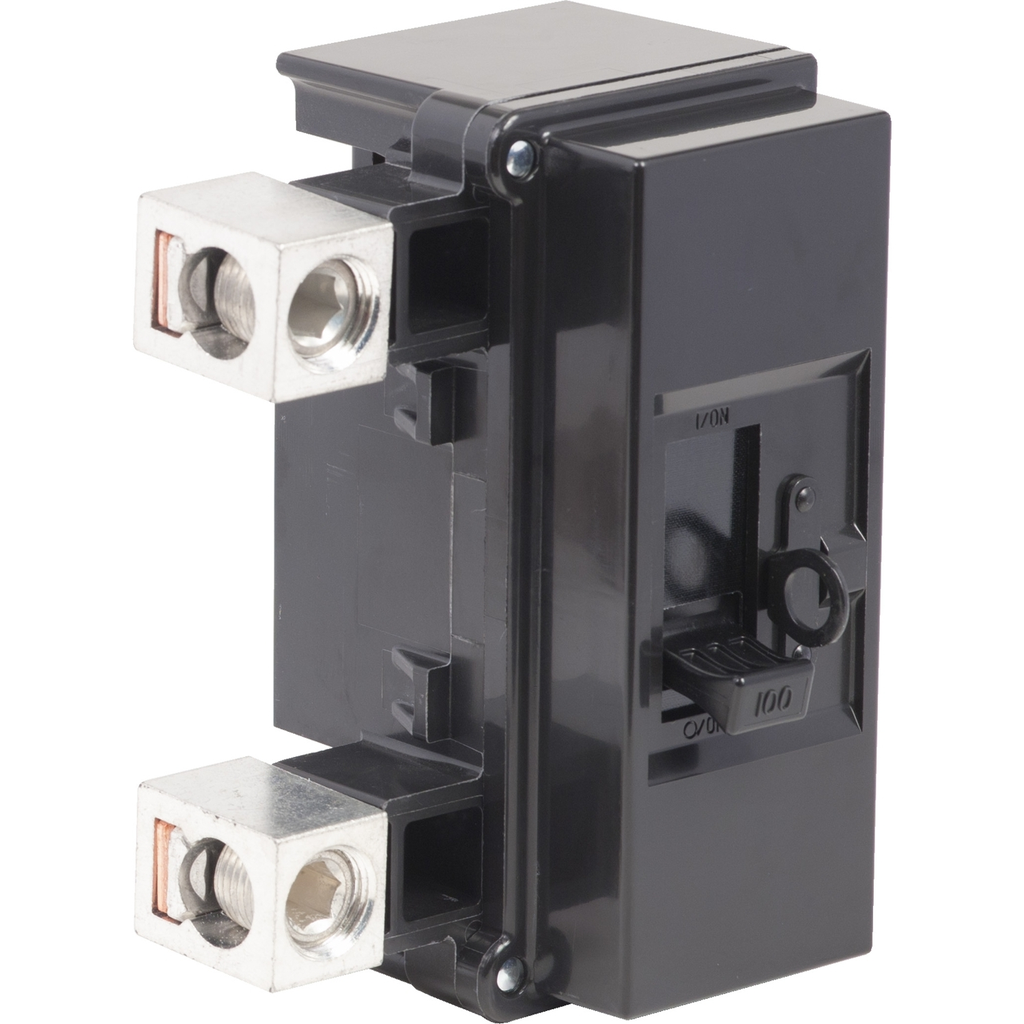

Main breaker, QO, 100A, 2 pole, 120/240VAC, 22kA, bolt on

MINIATURE CIRCUIT BREAKER 120/

SQDQOM2100VHL QOM2100VHL 785901372615
595.03 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Main breaker, QO, 100A, 2 pole, 120/240VAC, 22kA, bolt on-1
  • Country of Origin: Mexico
  • Warranty Length: 18 mth
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO main breaker is rated at 100A at 120/240VAC. This unit provides 22kA breaking capacity and bolt on mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
QTY
  • Product Description
  • Features
  • Specifications
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO main breaker is rated at 100A at 120/240VAC. This unit provides 22kA breaking capacity and bolt on mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
  • Product Destination
    • load center QO
    • QO load center
  • UE Rated Operational Voltage
    • 120/240 V AC
    • 120 V AC
  • Tightening Torque
    • 6-6 N.m 4-65 mm² (AWG 12...AWG 2/0)
  • AWG Gauge
    • AWG 4...250 kcmil copper or aluminium
  • Important Information Attributes
    • B2B Bullet Point 1 : Provides superior circuit protection
    • B2B Bullet Point 2 : Reliable and durable
    • B2B Bullet Point 3 : Plug-on neutral design and shorter footprint for faster installs
    • B2B Bullet Point 4 : Simple design and clear instructions for quick setup
    • B2B Bullet Point 5 : Time-saving diagnostics with touch of a button
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Device Type : LV equipment - Low voltage circuit breaker
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Average Life Duration : 15 year(s)
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 2534
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Persona Type Ids : LC
    • Persona Type Names : Contractor
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : RESIDENTIAL
    • Market Segmentation : Residential
    • H And D Domain : Safety
    • H And D Subrange : RESI
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : MCB
    • H And D Enrichment Class 3 : Circuit Breakers
    • H And D Enrichment Class 4 : MCB UL 2P
    • Circuit Breaker Type : standard
    • Device Short Name : QOM2
    • Energy Efficiency Optimized : False
    • Load Center Type : main breaker
    • Package Weight Lbs : 1.166 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : miniature circuit-breaker
    • Range Of Product : QO
    • Returnability : Yes
    • Sustainable Packaging : No
    • Pep Code : ENVPEP2212007
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : miniature circuit-breaker
    • Range Of Product : QO
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=436361&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2212007
    • EU ROHS Directive : Compliant with Exemptions
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2212007
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
