SQUARE D

Circuit breaker enclosure, PowerPacT M/P, 300A to 800A, 2 and 3 pole, NEMA 3R, steel

N3R ENCLOSURE FOR MG MJ CIRCU

SQDM800R M800R 785901658511
1467.00 / EACH
http://schema.org/OutOfStock

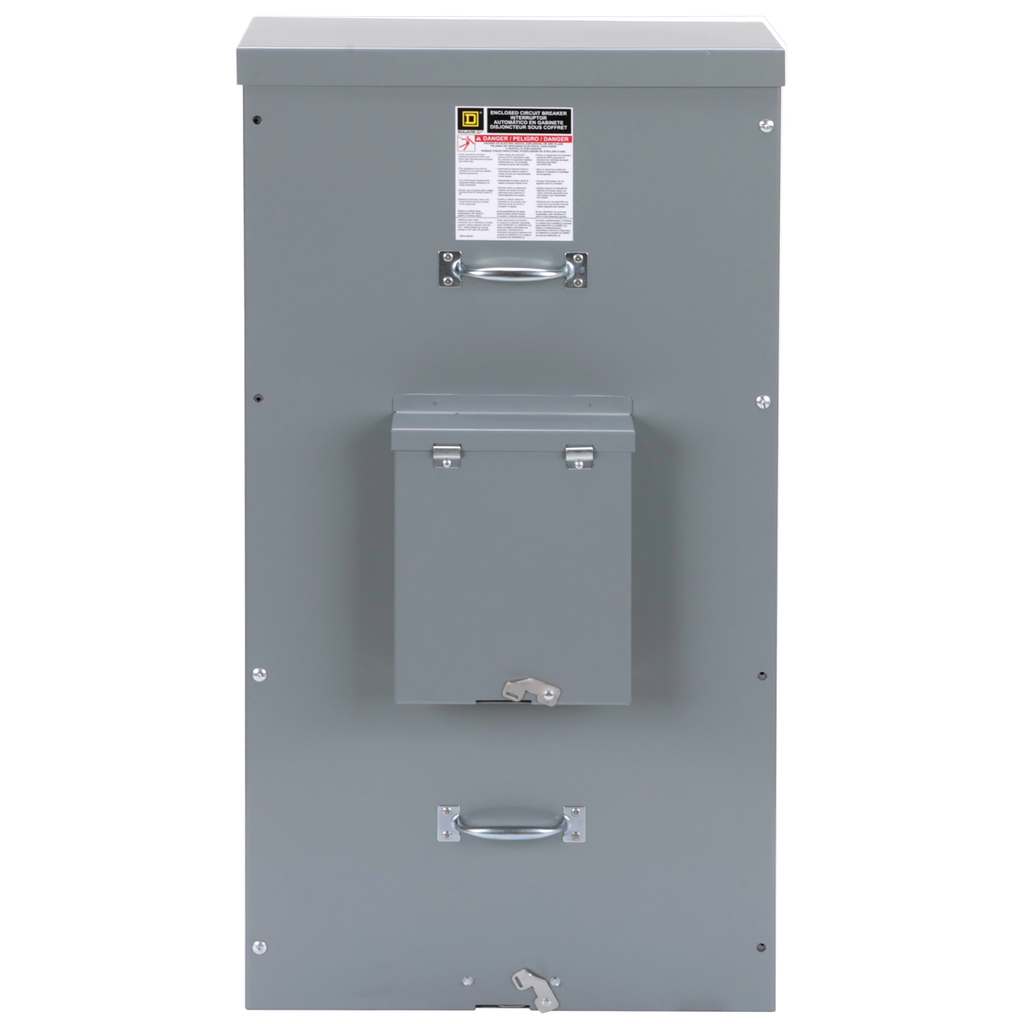

Mayer-DDS-Circuit breaker enclosure, PowerPacT M/P, 300A to 800A, 2 and 3 pole, NEMA 3R, steel-2
  • Certifications: CSA, UL
  • Circuit Breaker Type: MGL, MJL, PGL, PJL, PKL, PLL
  • Depth: 247.65 mm
  • Enclosure Material: Steel
  • Height: 1025.52 mm
  • Line Rated Current: 300-800 A
  • Warranty Length: 18 mth
  • Width: 533.4 mm
The enclosures for the family of PowerPact circuit breakers H- through Q-frame are cULus listed unless otherwise noted. The enclosures are suitable for service entrance equipment when neutral assembly is installed. The short circuit current rating of the enclosed circuit breakers is equal to the rating of the circuit breaker installed unless otherwise noted. All enclosures will accept 80% rated circuit breakers. The M800R and the P1200R enclosures have a blank top end wall and require field-cut openings. This is a PowerPact M, Molded Case Circuit Breaker Enclosure, 300A to 800A, TYPE 3R. This enclosure is made from steel. This enclosure complies to UL & CSA certifications. The dimensions are 1025.52 mm (H), 533.4 mm (W), 247.65 mm (D). This product comes with an 18 month warranty.
QTY
  • Product Description
  • Specifications
The enclosures for the family of PowerPact circuit breakers H- through Q-frame are cULus listed unless otherwise noted. The enclosures are suitable for service entrance equipment when neutral assembly is installed. The short circuit current rating of the enclosed circuit breakers is equal to the rating of the circuit breaker installed unless otherwise noted. All enclosures will accept 80% rated circuit breakers. The M800R and the P1200R enclosures have a blank top end wall and require field-cut openings. This is a PowerPact M, Molded Case Circuit Breaker Enclosure, 300A to 800A, TYPE 3R. This enclosure is made from steel. This enclosure complies to UL & CSA certifications. The dimensions are 1025.52 mm (H), 533.4 mm (W), 247.65 mm (D). This product comes with an 18 month warranty.
  • Environment
    • Product Certifications : CSA || UL
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Circularity Profile : N/A
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1408006EN
    • Sustainable Offer Status : Green Premium product
    • Pvc Free : Yes
    • Toxic Heavy Metal Free : Yes
    • Eu Rohs Directive : Compliant
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Halogen Content Performance : Halogen free plastic parts product
  • Complementary
    • Line Rated Current : 300-800 A
    • Height : 1025.52 mm
    • Poles Description : 2P || 3P
    • Enclosure Material : steel
    • Width : 533.4 mm
    • Depth : 247.65 mm
  • Specifications
    • Circuit Breaker Type : PJL || MGL || PKL || MJL || PLL || PGL
    • Product Destination : circuit breaker M 2P || circuit breaker P 3P
