QO and QOB Circuit Breakers have one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people. These enclosures are rated for indoor use only, providing primarly protection from hazardous contact points. This products is certified to adhere to the specifications listed in the data sheet by UL.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Line Rated Current : 100 A
• Important Information Attributes
• Persona Type Ids : EU, LC, OM
• Persona Type Names : End User, Contractor, Original Equipment Manufacturer
• Cover Type : surface cover, surface cover
• Carbon Footprint Of The Distribution Phase A4 : 0.8755217904, 0.9 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.2 kg CO2 eq., 0.1584424017
• Carbon Footprint Of The Installation Phase A5 : 0.0572084629, 0.1 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 11 kg CO2 eq., 11.2161703057
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0.1 kg CO2 eq., 0.0873405405
• Local Data Status : Publishable
• Local Publishable Date : 2026-03-26
• Return Indicator : Y
• Stocking Flag : N
• Stock Policy : 2
• H And D Domain : Safety
• H And D Subrange : RESI
• H And D Enrichment Assignment : no
• H And D Enrichment Function : ENCLOSURES
• H And D Enrichment Class 3 : Circuit Breakers
• H And D Enrichment Class 4 : Enclosed circuit Breaker
• Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : Outside of Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant
• Rohs Eur Conformity Date : 2532
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : No
• China Rohs Label : 1
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : RESIDENTIAL
• Market Segmentation : Residential
• Product Kit Identifier : N
• Box Number : 13
• Device Composition : grounding bar (ordered separately)
• Enclosure Material : welded sheet steel
• Enclosure Type : enclosure
• Energy Efficiency Optimized : False
• Number Of Spaces : 3
• Phase : 3 phase
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : enclosure
• Range Of Product : QO
• Returnability : Yes
• Software Version : EIME v5.9.4
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 12 kg CO2 eq.
• Wiring Configuration : 3-wire
• Warranty In Months : 18
• Pep Code : ENVPEP2212002EN
• Database Version : 2022-01
• Pep Verification Date : 2023-08-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent external review
• Data Source : extrapolated product
• Functional-unit Description : Protect persons during 20 years against direct contact with live parts and allow grouping monitoring. control and protection devices in a single enclosure or a cabinet having the following dimensions 952.5mm x1219.2mm x 101.6mm. comply with UL 67 and CSA22.2 with an available offer:& 10-suitable for use on 120/240 Vac and 48 Vdc systems& 10-rated 30–125 A& 10-supplies from two to sixteen circuits& 10-surface or flush-mounted cover& 10-Types 1 & 3R& 10-main lugs only
• Functional-unit Quantity : 1
• Functional-unit Unit : unit
• Reference Lifetime, In Y : 20
• Energy Model - Manufacturing [A1-a3] : Energy model used: Tlaxcala Mexico
• Energy Model - Installation [A5] : Electricity mix; AC; consumption mix. at consumer; 120V; US
• Energy Model - Use [B6] : Electricity mix; AC; consumption mix. at consumer; 120V; US
• Energy Model - End Of Life [C1-c4] : Electricity mix; AC; consumption mix. at consumer; 120V; US
• Offer Owner Code : 190788
• Pn : 1

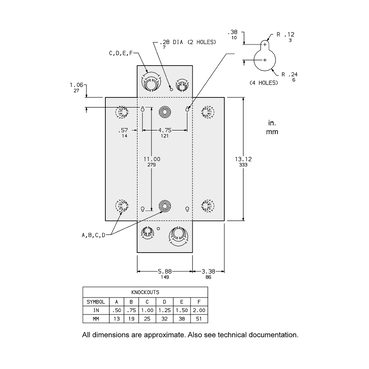

• Height Nominal : 333 mm
• Width Nominal : 149 mm
• Certificate Agency : UL Listed
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 12.3946835012
• Environmental Disclosure : ENVPEP2212002EN
• Eu Rohs Directive : Compliant
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2212002EN
• Pep Verification Date : 2023-08-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent external review
• General Attributes
• Phase : 3 phase
• Product Or Component Type : enclosure
• Range Of Product : QO
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico
• Depth : 3.4 in
