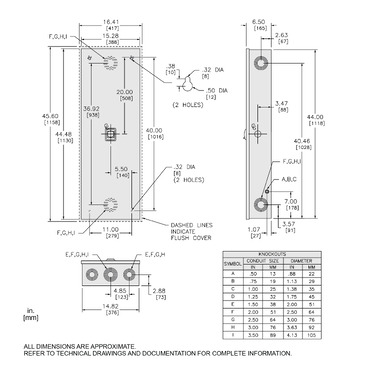

Circuit breaker enclosure, LA, 125A to 400A, NEMA 1, 15.28in W x 44.48in H x 6.5in D

ENCLOSURE FOR CIRCUIT BREAKER

SQDLA400S LA400S 785901508014
308.51 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Circuit breaker enclosure, LA, 125A to 400A, NEMA 1, 15.28in W x 44.48in H x 6.5in D-2
  • Country of Origin: Mexico
  • Depth: 6.50 in
  • Height: 44.48 in
  • Warranty Length: 18 mth
  • Width: 15.28 in
The enclosures for the family of PowerPact circuit breakers H- through Q-frame are cULus listed unless otherwise noted. The enclosures are suitable for service entrance equipment when neutral assembly is installed. The short circuit current rating of the enclosed circuit breakers is equal to the rating of the circuit breaker installed unless otherwise noted. All enclosures will accept 100% rated circuit breakers unless otherwise noted.  The enclosures' maximum short circuit ratings are 25 kAIR at 600 Vac, 65 kAIR at 480 Vac, 125 kAIR at 240 Vac and 20 kA at 250 Vdc unless otherwise noted. Enclosures accept 100% rated circuit breakers [8]. This PowerPact L-Frame, Circuit Breaker Enclosure, 2P, 3P, 15-250A,NEMA 1, surface. This enclosure is for L-Frame breakers. This product comes with an 18 months warranty.
QTY
  • Product Description
  • Features
  • Specifications
The enclosures for the family of PowerPact circuit breakers H- through Q-frame are cULus listed unless otherwise noted. The enclosures are suitable for service entrance equipment when neutral assembly is installed. The short circuit current rating of the enclosed circuit breakers is equal to the rating of the circuit breaker installed unless otherwise noted. All enclosures will accept 100% rated circuit breakers unless otherwise noted.  The enclosures' maximum short circuit ratings are 25 kAIR at 600 Vac, 65 kAIR at 480 Vac, 125 kAIR at 240 Vac and 20 kA at 250 Vdc unless otherwise noted. Enclosures accept 100% rated circuit breakers [8]. This PowerPact L-Frame, Circuit Breaker Enclosure, 2P, 3P, 15-250A,NEMA 1, surface. This enclosure is for L-Frame breakers. This product comes with an 18 months warranty.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1408006EN
    • Halogen Content Performance : Halogen free plastic parts product
    • Packaging Without Single Use Plastic : No
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Circularity Profile : N/A
    • Take-Back : No
    • Pvc Free : Yes
    • Eu Rohs Directive : Compliant
  • Contractual warranty
    • Warranty : 18 months
  • Complementary
    • Height : 44.48 in
    • Width : 15.28 in
    • Depth : 6.50 in
  • Specifications
    • Country of Origin : Mexico
    • Width : 15.28 in
    • Height : 44.48 in
    • Product Destination : circuit breaker LAL/LHL/Q4L/KAL/KHL 125-400 A
