SQUARE D

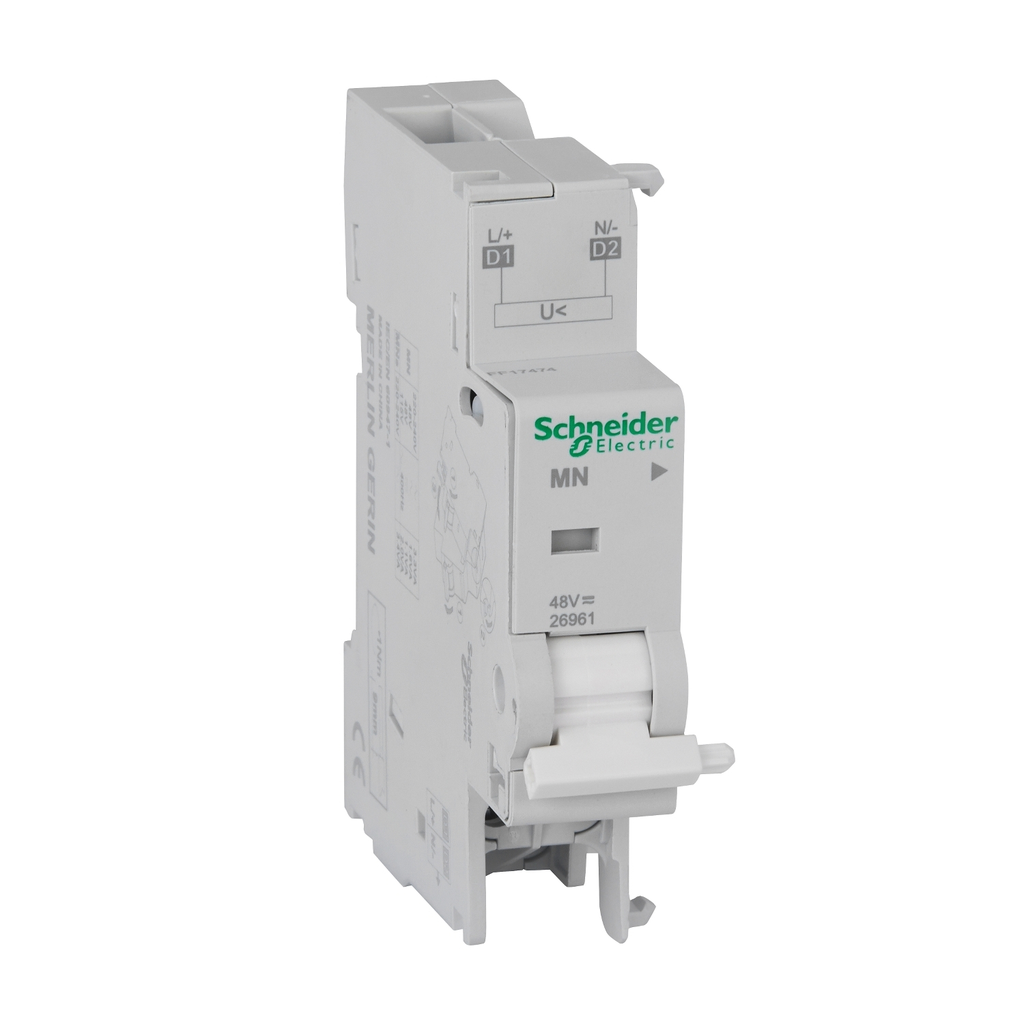

voltage release - MN - 48 V AC

VOLTAGE RELEASE - MN - 48 V AC

SQD26961 26961 785901931966
194.29 / EA
http://schema.org/OutOfStock
Mayer-DDS-voltage release - MN - 48 V AC-1
  • Depth: 68 mm
  • Height: 82.5 mm
  • Warranty Length: 18 mth
  • Width: 18 mm
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : ASEFA || LCIE || KEMA || ASTA
    • Ambient Air Temperature For Operation : -25-50 °C
    • Standards : EN/IEC 60947-2
    • Tropicalisation : 2 EN/IEC 60947-2
    • Ambient Air Temperature For Storage : -40-85 °C
    • Relative Humidity : 95-95 % 55-55 °C
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1305023EN
    • Packaging Without Single Use Plastic : Yes
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Scip Number : 9da5f8d9-d60f-424a-bb30-a856a097686c
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : ENVEOLI1305023EN
    • Take-Back : No
    • Sustainable Packaging : No
    • Eu Rohs Directive : Compliant with Exemptions
  • Complementary
    • Height : 82.5 mm
    • Mounting Support : 35 mm symmetrical DIN rail
    • Range Compatibility : Multi9 C60 || Multi9 N40 || Acti9 iDPN
    • Wire Stripping Length : 9 mm
    • Connections - Terminals : clamp terminal - 1 2.5-2.5 mm² - flexible || clamp terminal - 1 2.5-2.5 mm² - rigid || clamp terminal - 2 1.5-1.5 mm² - flexible || clamp terminal - 2 1.5-1.5 mm² - rigid
    • Mounting Mode : fixed
    • Local Signalling : action indicator
    • Width : 18 mm
    • Depth : 68 mm
    • Tightening Torque : 1-1 N.m
  • Specifications
    • Width : 18 mm
    • Height : 82.5 mm
    • [Uc] Control Circuit Voltage : 48 V AC 50/60 Hz || 48 V DC
    • 9 Mm Pitches : 2
    • Product Or Component Type : undervoltage release
    • Range : Multi9
    • Control Type : standard
    • Device Short Name : MN
