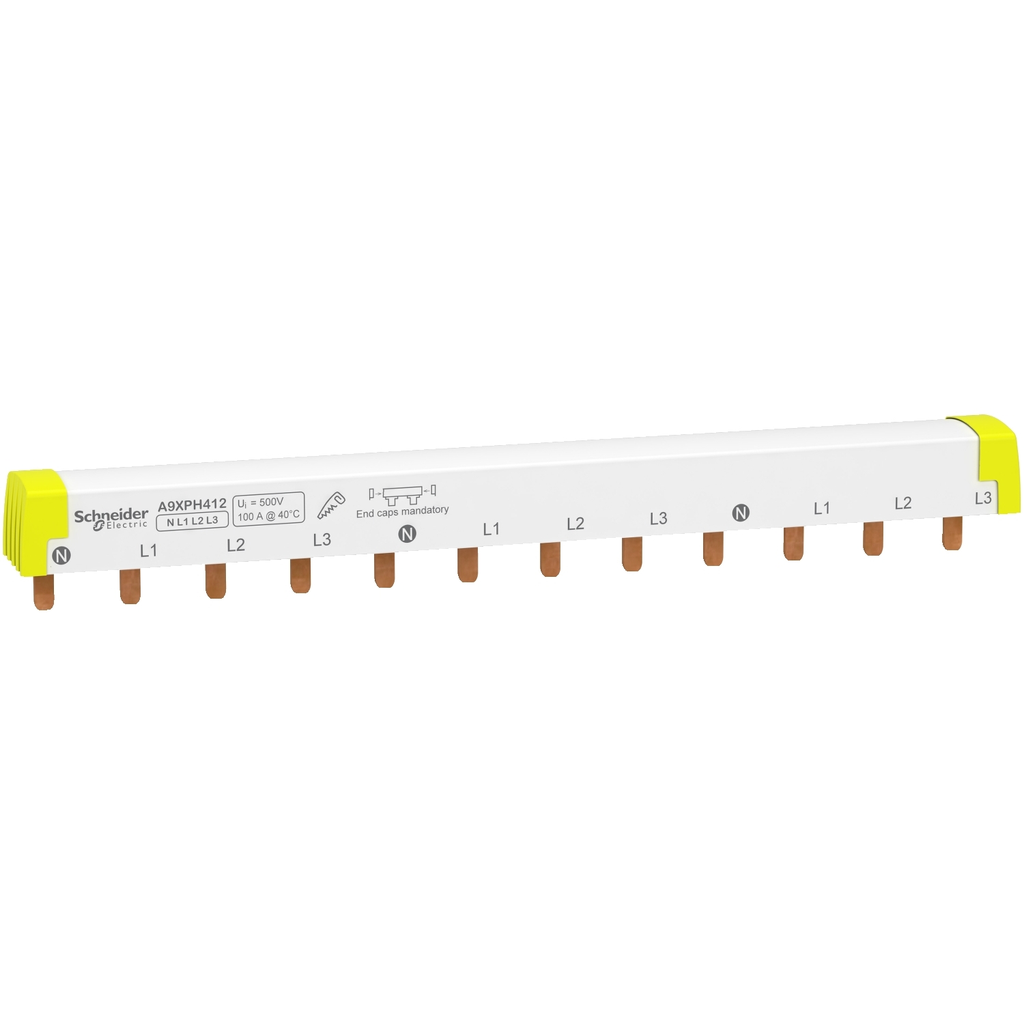

This Acti9 product is a cuttable horizontal comb busbar 12 modules for Acti9 iC60 or Acti9 iK60. It is dedicated to N+3L installations. The type is NL1L2L3 (Neutral, Line). It is a set of 1 device. It is suitable for 3 devices (3P+N). The length is 220mm.The total number of modules of 18mm is 12. The pin cross section is 16mm2. The type of electric connection is PIN. The number of phase is 3. The number of poles is 4. The Ie rated operational current at 40°C is 100A. The Isc short circuit current is compatible with the breaking capacity of Schneider Electric circuit breakers. The Ui rated insulation voltage is 500VAC. The Ue rated operational voltage is 415VAC. The color of the device is white RAL9003. The pollution degree is 3. According to IEC 60695-2-1 standard the fire resistance is self-extinguishing at 960°C within 30s. It complies with IEC 60947-7-1 and IEC 61439-2 standards.

• Prop 65
• WARNING: This product can expose you to chemicals including: DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Color : White RAL 9003)
• Conformance Attributes
• Standards : EN/IEC 61439-1
• Complementary Attributes
• IE Rated Operational Current : 100 A 40 °C
• UE Rated Operational Voltage : 415 V AC
• UI Rated Insulation Voltage : 500 V AC IEC 61439-2
• Important Information Attributes
• Persona Type Ids : LC, OM, PB, SC
• Persona Type Names : Contractor, Original Equipment Manufacturer, Panel Builder, Electrician
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Mounting Location : top or bottom tunnel type terminals, top or bottom double terminal
• Poles Configuration For 1 Way : 1 x 3P + N, 1 x 4P
• Range Compatibility : Acti9 iC60, Acti9 iK60, Acti9 iID, Acti9 iID K, Acti9 iSW, Acti9 iSW-NA, Multi9 C60
• Carbon Footprint Of The Distribution Phase A4 : 0.02507912105851258, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.3 kg CO2 eq., 0.271446446452263
• Carbon Footprint Of The Installation Phase A5 : 0.0017402823264975166, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.6 kg CO2 eq., 0.6291770170361509
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 3 kg CO2 eq., 3.3948959835021757
• Local Data Status : Publishable
• Local Publishable Date : 2025-12-11
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• BVB : Recommended
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Compliant
• ROHS EUR Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 1 - GSC certified
• Function Option Id : STANDARD
• Function Option : Standard
• H And D Domain : Safety
• H And D Subrange : Acti9 DISTRIBUTION ACC
• H And D Enrichment Assignment : yes
• H And D Enrichment Function : ACCESSORIES
• H And D Enrichment Class 3 : Busbars
• H And D Enrichment Class 4 : Comb busbar 4P
• H And Dod Responsibility : Acti9 iC60
• H And Dod Platform : Enclosures & Acc
• Connection Pitch : 18 mm
• Connector Type : tooth
• Distance Between Way : 72 mm
• Distribution Type : N L1 L2 L3
• Energy Efficiency Optimized : False
• Fire Resistance : 960 °C 30 s ) IEC 60695-2-1
• Lines Description : 3L + N
• Marking : N L1 L2 L3
• Number Of Ways : 3 ways N + 3 L
• Package Weight Lbs : 129.000 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : comb busbar
• Range : Acti9
• Returnability : No
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 4 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• IE Rated Operational Current : 100 A 40 °C
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2503006EN
• Pep Verification Date : 2025-04-01
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3-2023 06 06
• Type Of Verification For The Pep : Independent external review
• Functional Unit Description : Distribute electrical power to devices installed on a row of a final distribution board for 20 years.Distribute electrical power to devices installed on a row of a final distribution board for 20 years.
• Functional Unit Unit : unit
• Product Kit Identifier : N
• Product Manager : ROBIN SCHWAAR
• Environment Attributes Main
• EU ROHS Directive : Compliant​, Compliant
• ROHS Exemption Information : Yes
• Take Back : No
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 4.3223388503755995
• 9 MM Pitches : 24
• Environmental Disclosure : ENVPEP2503006EN
• IP Degree Of Protection : IP20 with end-pieces and tooth covers
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2503006EN
• Pep Verification Date : 2025-04-01
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3-2023 06 06
• Type Of Verification For The Pep : Independent external review
• General Attributes
• Product Or Component Type : comb busbar
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Overview Attributes
• Device Presentation : cuttable
