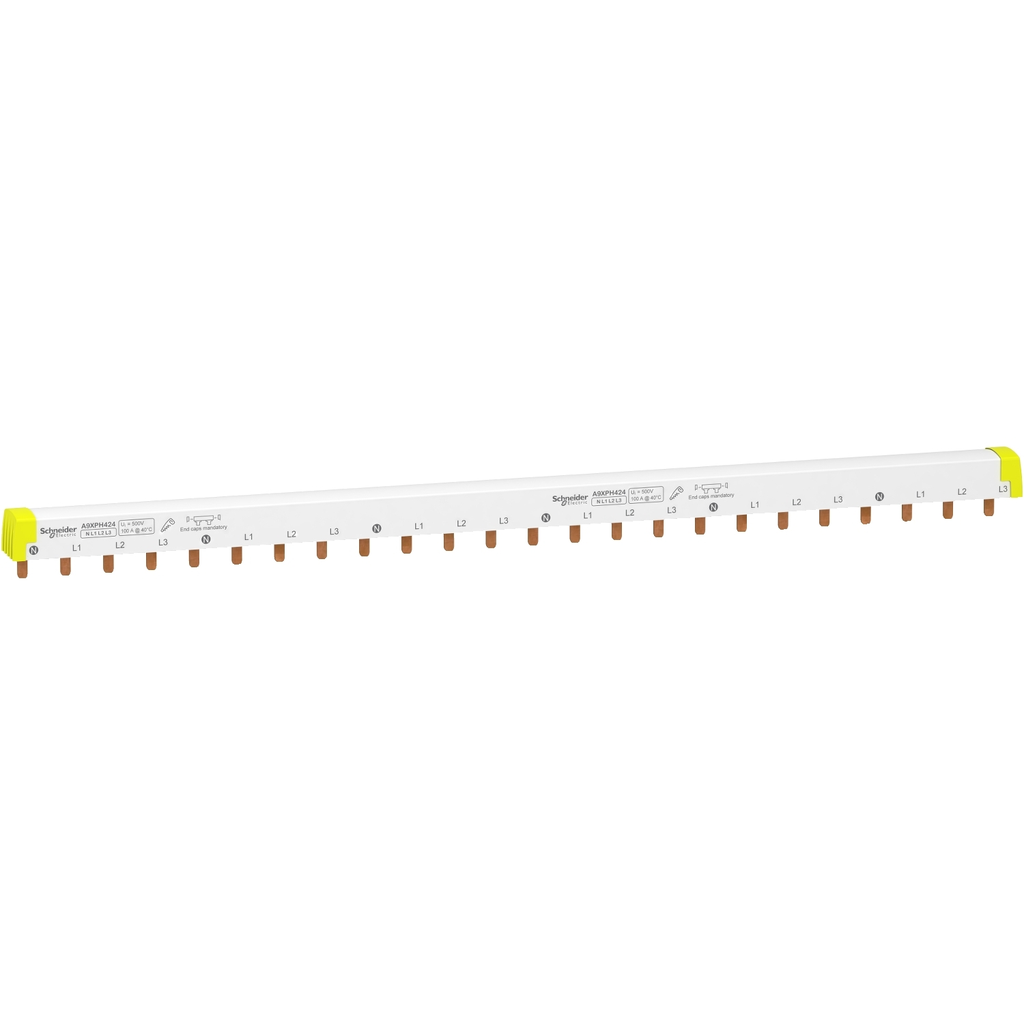

This Acti9 product is a cuttable horizontal comb busbar 24 modules for Acti9 iC60 or Acti9 iK60. It is dedicated to N+3L installations. The type is NL1L2L3 (Neutral, Line). It is a set of 1 device. It is suitable for 6 devices (3P+N). The length is 430mm

• IE Rated Operational Current
• 100 A 40 °C
• CAD
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADFD0001796_3D-CAD&p_File_name=MCADFD0001796_3D-simplified.stp
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADFD0001796_3D-CAD&p_File_name=MCADFD0001796_2D-back.dwg
• https://downlo
• Range Compatibility
• Acti9 Acti9 iC60
• Acti9 Acti9 iK60
• Acti9 Acti9 iID
• Acti9 Acti9 iID K
• Acti9 Acti9 iSW
• Acti9 Acti9 iSW-NA
• Multi9 Multi9 C60
• IP Degree Of Protection
• IP20 with end-pieces and tooth covers
• Prop 65
• WARNING: This product can expose you to chemicals including: DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0.003898772033781258
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0.6 kg CO2 eq.
• 0.6081242094938295
• Poles Configuration For 1 Way
• 1 x 3P + N
• 1 x 4P
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 1 kg CO2 eq.
• 1.4095516118096714
• UI Rated Insulation Voltage
• 500 V AC IEC 61439-2
• Accessories
• A9XPCM04
• A9XPT920
• A9XPE410
• A9XPCD04
• Mounting Location
• top or bottom tunnel type terminals
• top or bottom double terminal
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Contractor
• Original Equipment Manufacturer
• Panel Builder
• Electrician
• Fire Resistance
• 960 °C 30 s ) IEC 60695-2-1
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 4 kg CO2 eq.
• 4.2660118465029475
• Persona Type Ids
• LC
• OM
• PB
• SC
• Carbon Footprint Of The Distribution Phase A4
• 0.056185007642714224
• 0.1 kg CO2 eq.
• Number Of Ways
• 6 ways N + 3 L
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Color
• White RAL 9003)
• UE Rated Operational Voltage
• 415 V AC

• Conformance Attributes
• Standards : EN/IEC 61439-1
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 1/12/2024
• Manufacturing Carbon Footprint : 1.409551612
• Distribution Carbon Footprint : 0.056185008
• Installation Carbon Footprint : 0.003898772
• Use Carbon Footprint : 4.266011847
• End Of Life Carbon Footprint : 0.608124209
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• BVB : Recommended
• EOLI Availability Display : No need of specific recycling operations
• BVB Url : https://byggvarubedomningen.se/
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant
• ROHS EUR Conformity Date : 1735
• ROHS EUR Full Compliance Status : Compliant
• ROHS EUR Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• China ROHS Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 1 - GSC certified
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• H And D Domain : Safety
• H And D Subrange : Acti9 DISTRIBUTION ACC
• H And D Enrichment Assignment : yes
• H And D Enrichment Function : ACCESSORIES
• H And D Enrichment Class 3 : Busbars
• H And D Enrichment Class 4 : Comb busbar 4P
• H And Dod Responsibility : Acti9 iC60
• H And Dod Platform : Enclosures & Acc
• Connection Pitch : 18 mm
• Connector Type : tooth
• Distance Between Way : 72 mm
• Distribution Type : N L1 L2 L3
• Energy Efficiency Optimized : FALSE
• Lines Description : 3L + N
• Marking : N L1 L2 L3
• Package Weight Lbs : 289 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : comb busbar
• Range : Acti9
• Returnability : No
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 6 kg CO2 eq.
• Total Number Of 18 Mm Modules : 24
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 6.343771447
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2503006EN
• Pep Verification Date : 4/1/2025
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3-2023 06 06
• Type Of Verification For The Pep : Independent external review
• Product Weight In G : 289
• Functional Unit Description : Distribute electrical power to devices installed on a row of a final distribution board for 20 years.Distribute electrical power to devices installed on a row of a final distribution board for 20 years.
• Functional Unit Quantity : 1
• Functional Unit Unit : unit
• Reference Lifetime In Y : 20
• Energy Consumption On Product Lifetime In Kwh : 10.55425824
• Energy Model Manufacturing A1 A3 : Electricity Mix; Low voltage; 2020; Poland, PL
• Energy Model Installation A5 : No energy used
• Energy Model Use B6 : Electricity Mix; Low voltage; 2020; Europe, EU-27
• Energy Model End Of Life C1 C4 : Global, European and French datasets are used.
• Recyclability Potential In : 67
• Acidification Ap Mole Of H Equiv Total Life Cycle : 0.068092581
• Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.04059357
• Acidification Ap Mole Of H Equiv Distribution A4 : 0.000356327
• Acidification Ap Mole Of H Equiv Installation A5 : 1.14245E-05
• Acidification Ap Mole Of H Equiv Maintenance B2 : 0
• Acidification Ap Mole Of H Equiv Repair B3 : 0
• Acidification Ap Mole Of H Equiv Replacement B4 : 0
• Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0.022330793
• Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.004800466
• Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -0.031222335
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Total Life Cycle : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Manufacturing A1 A3 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Distribution A4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Installation A5 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Maintenance B2 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Repair B3 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Replacement B4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Operational Energy Use B6 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C End Of Life C1 C4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Benefits Loads Beyond System Boundaries D : 0
• Biogenic Carbon Content Of The Product Kg Of C Total Life Cycle : 0
• Biogenic Carbon Content Of The Product Kg Of C Manufacturing A1 A3 : 0
• Biogenic Carbon Content Of The Product Kg Of C Distribution A4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Installation A5 : 0
• Biogenic Carbon Content Of The Product Kg Of C Maintenance B2 : 0
• Biogenic Carbon Content Of The Product Kg Of C Repair B3 : 0
• Biogenic Carbon Content Of The Product Kg Of C Replacement B4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Operational Energy Use B6 : 0
• Biogenic Carbon Content Of The Product Kg Of C End Of Life C1 C4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Benefits Loads Beyond System Boundaries D : 0
• Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 0.171895954
• Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 0.038223294
• Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
• Climate Change Biogenics Kg Co2 Eq Installation A5 : 0.000185191
• Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
• Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
• Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
• Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0.09423065
• Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0.039256819
• Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.033278568
• Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 6.171860266
• Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 1.371313742
• Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 0.056185008
• Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 0.003713581
• Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 4.171781196
• Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 0.568866739
• Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.399164659
• Climate Change Total Kg Co2 Eq Total Life Cycle : 6.343771447
• Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 1.409551612
• Climate Change Total Kg Co2 Eq Distribution A4 : 0.056185008
• Climate Change Total Kg Co2 Eq Installation A5 : 0.003898772
• Climate Change Total Kg Co2 Eq Maintenance B2 : 0
• Climate Change Total Kg Co2 Eq Repair B3 : 0
• Climate Change Total Kg Co2 Eq Replacement B4 : 0
• Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 4.266011847
• Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 0.608124209
• Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.432443227
• Components For Re Use Kg Total Life Cycle : 0
• Components For Re Use Kg Manufacturing A1 A3 : 0
• Components For Re Use Kg Distribution A4 : 0
• Components For Re Use Kg Installation A5 : 0
• Components For Re Use Kg Maintenance B2 : 0
• Components For Re Use Kg Repair B3 : 0
• Components For Re Use Kg Replacement B4 : 0
• Components For Re Use Kg Operational Energy Use B6 : 0
• Components For Re Use Kg End Of Life C1 C4 : 0
• Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.000348575
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.000307313
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 2.21495E-09
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 9.59198E-11
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 1.38317E-06
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 3.98766E-05
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -0.000256609
• Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 131.8610043
• Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 23.66236507
• Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 0.784893073
• Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.038672684
• Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 102.3089731
• Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 5.066100431
• Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -7.127921592
• Ecotoxicity Fresh Water Ctue Total Life Cycle : 1641.909077
• Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 1599.744049
• Ecotoxicity Fresh Water Ctue Distribution A4 : 0.036854031
• Ecotoxicity Fresh Water Ctue Installation A5 : 0.0528533
• Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
• Ecotoxicity Fresh Water Ctue Repair B3 : 0
• Ecotoxicity Fresh Water Ctue Replacement B4 : 0
• Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 6.39541763
• Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 35.6799034
• Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -7.30897767
• Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 4.53612E-07
• Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 2.48985E-07
• Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 2.89775E-09
• Emission Of Fine Particles Incidence Of Diseases Installation A5 : 6.86146E-11
• Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
• Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
• Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
• Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 1.74831E-07
• Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 2.68291E-08
• Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -1.87342E-07
• Exported Energy Mj By Energy Vector Total Life Cycle : 0.002348892
• Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.000290002
• Exported Energy Mj By Energy Vector Distribution A4 : 0
• Exported Energy Mj By Energy Vector Installation A5 : 0.000159465
• Exported Energy Mj By Energy Vector Maintenance B2 : 0
• Exported Energy Mj By Energy Vector Repair B3 : 0
• Exported Energy Mj By Energy Vector Replacement B4 : 0
• Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
• Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0.001899424
• Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
• Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.001441805
• Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0.00020413
• Freshwater Eutrophication Kg P Eq Distribution A4 : 2.11046E-08
• Freshwater Eutrophication Kg P Eq Installation A5 : 8.9434E-08
• Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
• Freshwater Eutrophication Kg P Eq Repair B3 : 0
• Freshwater Eutrophication Kg P Eq Replacement B4 : 0
• Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 1.02177E-05
• Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 0.001227346
• Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -6.20264E-07
• Hazardous Waste Disposed Of Kg Total Life Cycle : 27.67995601
• Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 27.67984031
• Hazardous Waste Disposed Of Kg Distribution A4 : 0
• Hazardous Waste Disposed Of Kg Installation A5 : 9.73216E-05
• Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Hazardous Waste Disposed Of Kg Repair B3 : 0
• Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
• Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 1.83708E-05
• Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -23.57877046
• Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 1.8381E-08
• Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 1.62035E-08
• Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 9.88727E-13
• Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 4.41184E-10
• Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 5.27644E-10
• Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 1.20774E-09
• Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -4.68708E-09
• Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 6.27315E-07
• Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 5.21846E-07
• Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 1.91274E-11
• Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 1.15075E-11
• Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 1.2498E-08
• Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 9.29406E-08
• Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -4.213E-07
• Impacts Related To Land Use Soil Quality Total Life Cycle : 4.452979905
• Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 0.628851382
• Impacts Related To Land Use Soil Quality Distribution A4 : 0
• Impacts Related To Land Use Soil Quality Installation A5 : 1.06714E-05
• Impacts Related To Land Use Soil Quality Maintenance B2 : 0
• Impacts Related To Land Use Soil Quality Repair B3 : 0
• Impacts Related To Land Use Soil Quality Replacement B4 : 0
• Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 0.113118701
• Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 3.710999151
• Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 67.25955466
• Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 61.62019066
• Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.00013704
• Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.000596439
• Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 5.581411868
• Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.057218646
• Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -52.45659762
• Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.004953789
• Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.001603483
• Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.00016702
• Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 4.96892E-06
• Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0.002612865
• Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.000565451
• Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -0.000469627
• Materials For Energy Recovery Kg Total Life Cycle : 0
• Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
• Materials For Energy Recovery Kg Distribution A4 : 0
• Materials For Energy Recovery Kg Installation A5 : 0
• Materials For Energy Recovery Kg Maintenance B2 : 0
• Materials For Energy Recovery Kg Repair B3 : 0
• Materials For Energy Recovery Kg Replacement B4 : 0
• Materials For Energy Recovery Kg Operational Energy Use B6 : 0
• Materials For Energy Recovery Kg End Of Life C1 C4 : 0
• Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
• Materials For Recycling Kg Total Life Cycle : 0.220825201
• Materials For Recycling Kg Manufacturing A1 A3 : 0.028804479
• Materials For Recycling Kg Distribution A4 : 0
• Materials For Recycling Kg Installation A5 : 0
• Materials For Recycling Kg Maintenance B2 : 0
• Materials For Recycling Kg Repair B3 : 0
• Materials For Recycling Kg Replacement B4 : 0
• Materials For Recycling Kg Operational Energy Use B6 : 0
• Materials For Recycling Kg End Of Life C1 C4 : 0.192020722
• Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
• Net Use Of Fresh Water M3 Total Life Cycle : 0.079770928
• Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.047480478
• Net Use Of Fresh Water M3 Distribution A4 : 4.97465E-06
• Net Use Of Fresh Water M3 Installation A5 : 7.01778E-06
• Net Use Of Fresh Water M3 Maintenance B2 : 0
• Net Use Of Fresh Water M3 Repair B3 : 0
• Net Use Of Fresh Water M3 Replacement B4 : 0
• Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.007558129
• Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.024720329
• Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -0.035547926
• Non Hazardous Waste Disposed Of Kg Total Life Cycle : 1.260364063
• Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0.512260787
• Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.001974949
• Non Hazardous Waste Disposed Of Kg Installation A5 : 0.001670347
• Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Non Hazardous Waste Disposed Of Kg Repair B3 : 0
• Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0.643039489
• Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.101418491
• Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.034588207
• Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 2.11911E-07
• Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 1.73053E-07
• Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 8.62482E-11
• Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 5.05676E-11
• Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 1.82734E-08
• Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 2.04486E-08
• Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -1.24227E-07
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 0.017752085
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.007208246
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.000462151
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 7.92338E-06
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0.008284511
• Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.001789254
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -0.003515751
• Radioactive Waste Disposed Of Kg Total Life Cycle : 0.000496248
• Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.000338313
• Radioactive Waste Disposed Of Kg Distribution A4 : 1.40662E-06
• Radioactive Waste Disposed Of Kg Installation A5 : 2.06448E-07
• Radioactive Waste Disposed Of Kg Maintenance B2 : 0
• Radioactive Waste Disposed Of Kg Repair B3 : 0
• Radioactive Waste Disposed Of Kg Replacement B4 : 0
• Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.000151542
• Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 4.77899E-06
• Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -3.52489E-05
• Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 0.069424063
• Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0.018003971
• Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.001832292
• Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 3.45655E-05
• Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
• Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
• Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
• Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 0.04190046
• Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.007652774
• Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -0.005504284
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 2.565987502
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 2.565987502
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 158.4911715
• Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 25.37162307
• Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 0.785940476
• Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.043744712
• Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 126.2659521
• Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 6.023911075
• Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -7.974211808
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 26.63016712
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1.709258006
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.001047404
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.005072028
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 23.95697904
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.957810644
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.846290216
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 2.565987502
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 2.565987502
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 129.2950168
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 21.09637756
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.784893073
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.038672684
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 102.3089731
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 5.066100431
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -7.127921592
• Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.31519037
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.31519037
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.053956109
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 26.31497675
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1.394067636
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.001047404
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.005072028
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 23.95697904
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.957810644
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.792334107
• Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Secondary Materials Kg Total Life Cycle : 0
• Use Of Secondary Materials Kg Manufacturing A1 A3 : 0
• Use Of Secondary Materials Kg Distribution A4 : 0
• Use Of Secondary Materials Kg Installation A5 : 0
• Use Of Secondary Materials Kg Maintenance B2 : 0
• Use Of Secondary Materials Kg Repair B3 : 0
• Use Of Secondary Materials Kg Replacement B4 : 0
• Use Of Secondary Materials Kg Operational Energy Use B6 : 0
• Use Of Secondary Materials Kg End Of Life C1 C4 : 0
• Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
• Water Use M3 Eq Total Life Cycle : 3.424921759
• Water Use M3 Eq Manufacturing A1 A3 : 2.039283143
• Water Use M3 Eq Distribution A4 : 0.000213661
• Water Use M3 Eq Installation A5 : 0.000301325
• Water Use M3 Eq Maintenance B2 : 0
• Water Use M3 Eq Repair B3 : 0
• Water Use M3 Eq Replacement B4 : 0
• Water Use M3 Eq Operational Energy Use B6 : 0.323396496
• Water Use M3 Eq End Of Life C1 C4 : 1.061727134
• Water Use M3 Eq Benefits Loads Beyond System Boundaries D : -1.526782928
• Air Pollution M3 Total Life Cycle : 0
• Air Pollution M3 Manufacturing A1 A3 : 0
• Air Pollution M3 Distribution A4 : 0
• Air Pollution M3 Installation A5 : 0
• Air Pollution M3 Maintenance B2 : 0
• Air Pollution M3 Repair B3 : 0
• Air Pollution M3 Replacement B4 : 0
• Air Pollution M3 Operational Energy Use B6 : 0
• Air Pollution M3 End Of Life C1 C4 : 0
• Air Pollution M3 Benefits Loads Beyond System Boundaries D : 0
• Water Pollution M3 Total Life Cycle : 0
• Water Pollution M3 Manufacturing A1 A3 : 0
• Water Pollution M3 Distribution A4 : 0
• Water Pollution M3 Installation A5 : 0
• Water Pollution M3 Maintenance B2 : 0
• Water Pollution M3 Repair B3 : 0
• Water Pollution M3 Replacement B4 : 0
• Water Pollution M3 Operational Energy Use B6 : 0
• Water Pollution M3 End Of Life C1 C4 : 0
• Water Pollution M3 Benefits Loads Beyond System Boundaries D : 0
• Warranty In Months : 18
• General Attributes
• Product Or Component Type : comb busbar
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=267996795&lang=en-us
• Take Back : No
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0%
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 6.343771447
• 9 MM Pitches : 48
• Environmental Disclosure : ENVPEP2503006EN
• EU ROHS Directive : Compliant
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2503006EN
• Pep Verification Date : 4/1/2025
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3-2023 06 06
• Type Of Verification For The Pep : Independent external review
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Germany
• Overview Attributes
• Device Presentation : cuttable
