Acti9 - comb busbar - 3L - 18 mm pitch - 6 modules - 100A

COMB BUSBAR 3P 100A 6MOD.

SQDA9XPH306 A9XPH306 785901515906
62.22 / EA
http://schema.org/OutOfStock

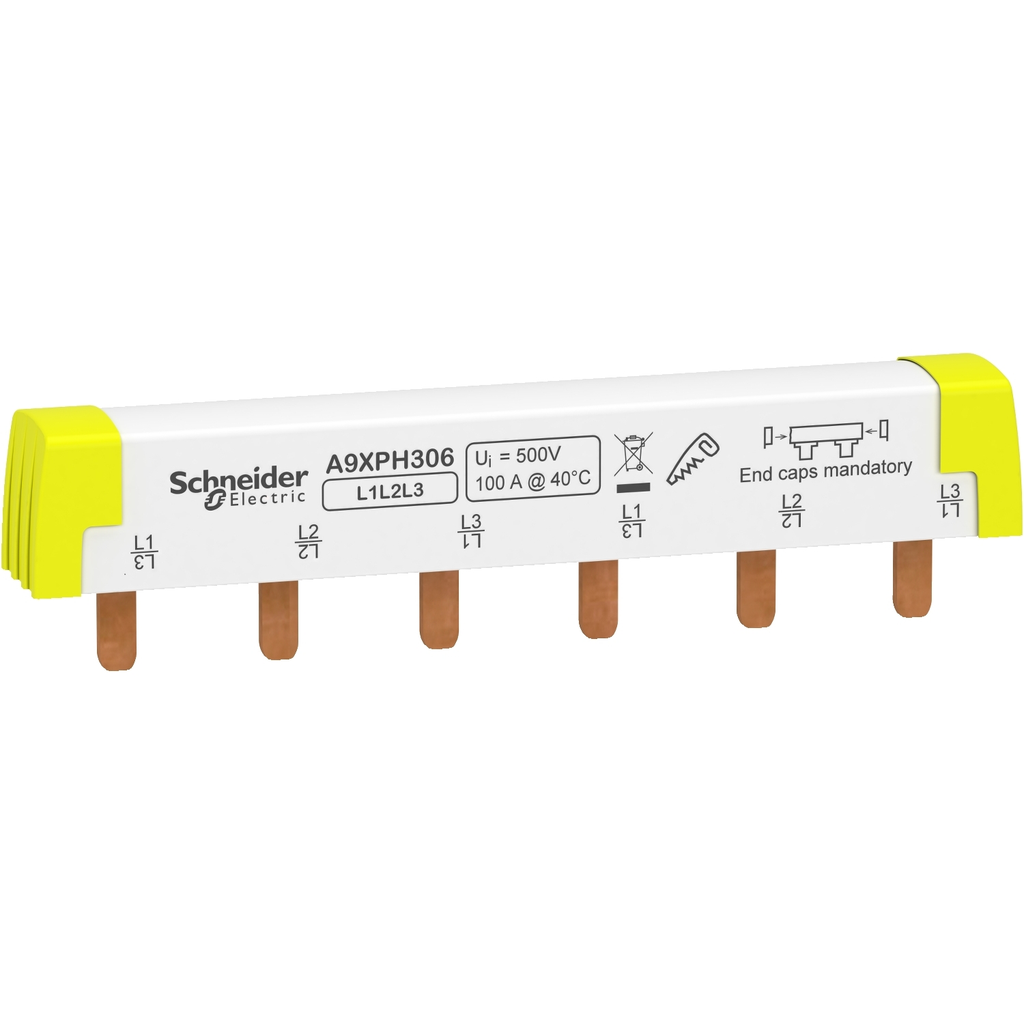

Mayer-DDS-Acti9 - comb busbar - 3L - 18 mm pitch - 6 modules - 100A-1
  • Connection Type: Tooth
  • Country of Origin: Germany
  • Width: 110 mm
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2503006EN
    • Packaging Without Single Use Plastic : Yes
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Toxic Heavy Metal Free : Yes
    • Scip Number : 12618b2a-bc0e-4c2d-bb7b-9185c26e01fe
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : N/A
    • Take-Back : No
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 3.3948959835021757
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 0.21948035478005268
    • Carbon Footprint Of The Distribution Phase [A4] : 0 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase [A5] : 0 kg CO2 eq.
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 4 kg CO2 eq.
    • Eu Rohs Directive : Compliant
    • Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0.0946906208554406
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 3.7184225649696496
  • Specifications
    • Country of Origin : Germany
    • Width : 110 mm
    • Standards : EN/IEC 61439-1
    • Total Number Of 18 Mm Modules : 6
    • Accessory / Separate Part Category : connection accessory
    • Product Or Component Type : comb busbar
    • Range : Acti9
    • Mounting Mode : horizontal
    • Lines Description : 3L
  • Complementary
    • Range Compatibility : Acti9 Acti9 iC60 || Acti9 Acti9 iK60 || Acti9 Acti9 iID || Acti9 Acti9 iID K || Acti9 Acti9 iSW || Acti9 Acti9 iSW-NA || Multi9 Multi9 C60
    • Number Of Ways : 2 ways 3 L
    • 9 Mm Pitches : 12
    • Distance Between Way : 54 mm
    • Marking : L1 L2 L3
    • Connector Type : tooth
    • Device Presentation : cuttable
    • Distribution Type : L1 L2 L3
    • [Ui] Rated Insulation Voltage : 500 V AC IEC 61439-2
    • [Ie] Rated Operational Current : 100 A 40 °C
    • Insulation : insulated
    • [Ue] Rated Operational Voltage : 415 V AC
    • Connection Pitch : 18 mm
    • Color : White RAL 9003)
    • Width : 110 mm
    • Mounting Location : top or bottom tunnel type terminals || top or bottom double terminal
    • Poles Configuration For 1 Way : 1 x 3P
  • Environment
    • Ip Degree Of Protection : IP20 with end-pieces and tooth covers
    • Pollution Degree : 3 IEC 60947-7-1
    • Fire Resistance : 960 °C 30 s ) IEC 60695-2-1
