Acti9 - comb busbar - 1L - 18 mm pitch - 57 modules - 100A

1P COMB BUSBAR 54 POLES

SQDA9XPH157 A9XPH157 785901927112
174.00 / EA
http://schema.org/OutOfStock

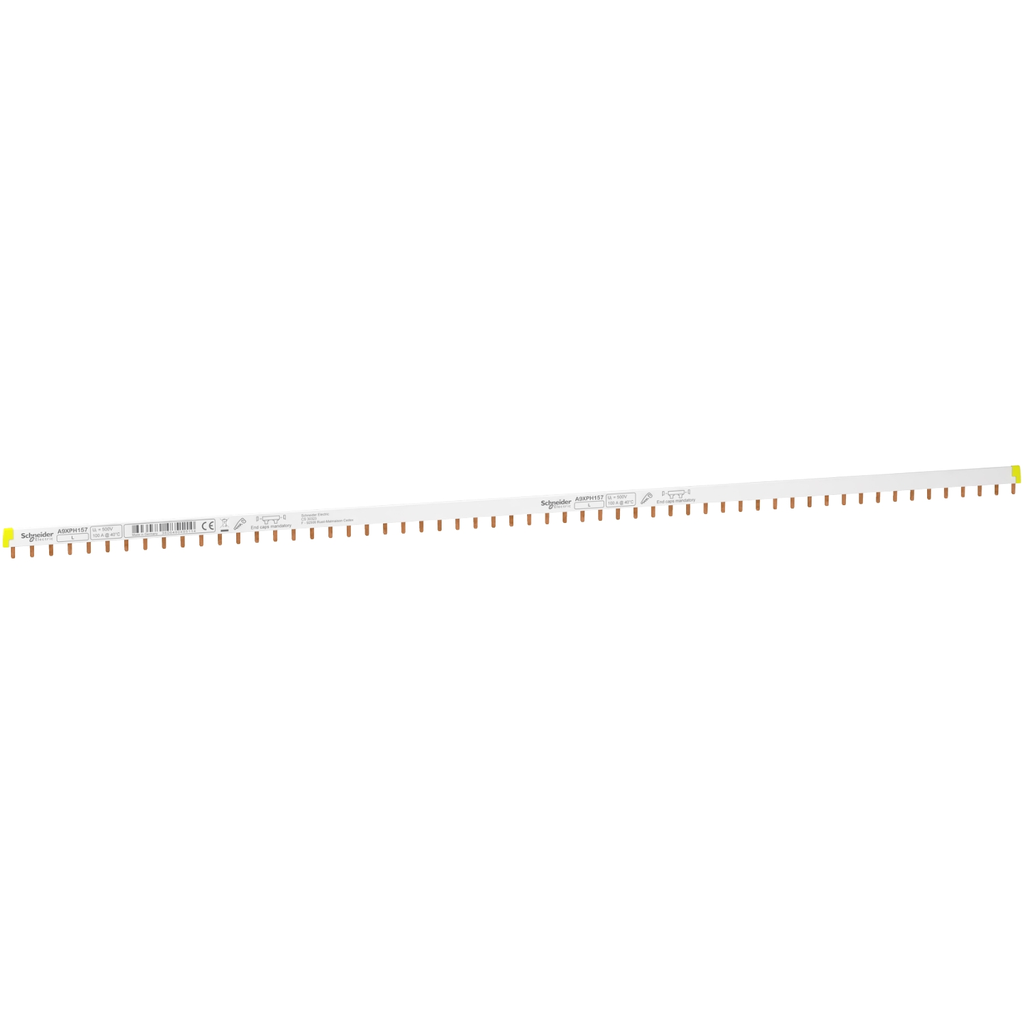

Mayer-DDS-Acti9 - comb busbar - 1L - 18 mm pitch - 57 modules - 100A-1
  • Connection Type: Tooth
  • Country of Origin: Germany
  • Warranty Length: 18 mth
This Acti9 product is a cuttable horizontal comb busbar 57 modules for Acti9 C60. It is dedicated to 1L installations. The type is L1 (Line). It is a set of 1 device. It is suitable for 57 devices (1P). The length is 1000mm.The total number of modules of
QTY
  • Product Description
  • Features
  • Specifications
This Acti9 product is a cuttable horizontal comb busbar 57 modules for Acti9 C60. It is dedicated to 1L installations. The type is L1 (Line). It is a set of 1 device. It is suitable for 57 devices (1P). The length is 1000mm.The total number of modules of
  • IE Rated Operational Current
    • 100 A 40 °C
  • CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADFD0001781_3D-CAD&p_File_name=MCADFD0001781_3D-simplified.stp
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADFD0001781_3D-CAD&p_File_name=MCADFD0001781_2D-back.dwg
    • https://downlo
  • Range Compatibility
    • Acti9 Acti9 iC60
    • Acti9 Acti9 iK60
    • Acti9 Acti9 iID
    • Acti9 Acti9 iID K
    • Acti9 Acti9 iSW
    • Acti9 Acti9 iSW-NA
    • Multi9 Multi9 C60
  • IP Degree Of Protection
    • IP20 with end-pieces and tooth covers
  • Prop 65
    • WARNING: This product can expose you to chemicals including: DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Carbon Footprint Of The Installation Phase A5
    • 0.0031567911969024717
    • 0 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 0.5 kg CO2 eq.
    • 0.49239122844829103
  • Provided Equipment
    • set of 10 end piece
  • Poles Configuration For 1 Way
    • 1 x 1P
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 1 kg CO2 eq.
    • 1.1412978448562736
  • UI Rated Insulation Voltage
    • 500 V AC IEC 61439-2
  • Accessories
    • A9XPCM04
    • A9XPT920
    • A9XPE110
    • A9XPCD04
  • Mounting Location
    • top or bottom tunnel type terminals
    • top or bottom double terminal
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • Contractor
    • Original Equipment Manufacturer
    • Panel Builder
    • Electrician
  • Fire Resistance
    • 960 °C 30 s ) IEC 60695-2-1
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 2 kg CO2 eq.
    • 2.4928287588306355
  • Persona Type Ids
    • LC
    • OM
    • PB
    • SC
  • Carbon Footprint Of The Distribution Phase A4
    • 0.04549235912939491
    • 0 kg CO2 eq.
  • Number Of Ways
    • 57 ways 1 L
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Color
    • White RAL 9003)
  • UE Rated Operational Voltage
    • 415 V AC
  • Conformance Attributes
    • Standards : EN/IEC 61439-1
  • Important Information Attributes
    • B2B Bullet Point 1 : Allows the power supply of a group of circuit breakers
    • B2B Bullet Point 2 : Compatible with the breaking capacity of Schneider Electric circuit breakers
    • Local Data Status : Publishable
    • Local Publishable Date : 5/22/2025
    • Manufacturing Carbon Footprint : 1.141297845
    • Distribution Carbon Footprint : 0.045492359
    • Installation Carbon Footprint : 0.003156791
    • Use Carbon Footprint : 2.492828759
    • End Of Life Carbon Footprint : 0.492391228
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • BVB : Recommended
    • EOLI Availability Display : No need of specific recycling operations
    • BVB Url : https://byggvarubedomningen.se/
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant
    • ROHS EUR Conformity Date : 1735
    • ROHS EUR Full Compliance Status : Compliant
    • ROHS EUR Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • China ROHS Label : 1
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 1 - GSC certified
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • H And D Domain : Safety
    • H And D Subrange : Acti9 DISTRIBUTION ACC
    • H And D Enrichment Assignment : yes
    • H And D Enrichment Function : ACCESSORIES
    • H And D Enrichment Class 3 : Busbars
    • H And D Enrichment Class 4 : Comb busbar 1P
    • H And Dod Responsibility : Acti9 iC60
    • H And Dod Platform : Enclosures & Acc
    • Connection Pitch : 18 mm
    • Connector Type : tooth
    • Distance Between Way : 18 mm
    • Distribution Type : L
    • Energy Efficiency Optimized : FALSE
    • Lines Description : 1L
    • Marking : L
    • Package Weight Lbs : 242 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : comb busbar
    • Range : Acti9
    • Returnability : No
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 4 kg CO2 eq.
    • Total Number Of 18 Mm Modules : 57
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 4.175166982
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2503006EN
    • Pep Verification Date : 4/1/2025
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed3-2023 06 06
    • Type Of Verification For The Pep : Independent external review
    • Product Weight In G : 234
    • Functional Unit Description : Distribute electrical power to devices installed on a row of a final distribution board for 20 years.Distribute electrical power to devices installed on a row of a final distribution board for 20 years.
    • Functional Unit Quantity : 1
    • Functional Unit Unit : unit
    • Reference Lifetime In Y : 20
    • Energy Consumption On Product Lifetime In Kwh : 6.16734304
    • Energy Model Manufacturing A1 A3 : Electricity Mix; Low voltage; 2020; Poland, PL
    • Energy Model Installation A5 : No energy used
    • Energy Model Use B6 : Electricity Mix; Low voltage; 2020; Europe, EU-27
    • Energy Model End Of Life C1 C4 : Global, European and French datasets are used.
    • Recyclability Potential In : 67
    • Acidification Ap Mole Of H Equiv Total Life Cycle : 0.050101716
    • Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.03286815
    • Acidification Ap Mole Of H Equiv Distribution A4 : 0.000288514
    • Acidification Ap Mole Of H Equiv Installation A5 : 9.25027E-06
    • Acidification Ap Mole Of H Equiv Maintenance B2 : 0
    • Acidification Ap Mole Of H Equiv Repair B3 : 0
    • Acidification Ap Mole Of H Equiv Replacement B4 : 0
    • Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0.013048919
    • Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.003886883
    • Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -0.025280368
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Total Life Cycle : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Manufacturing A1 A3 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Distribution A4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Installation A5 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Maintenance B2 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Repair B3 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Replacement B4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Operational Energy Use B6 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C End Of Life C1 C4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Benefits Loads Beyond System Boundaries D : 0
    • Biogenic Carbon Content Of The Product Kg Of C Total Life Cycle : 0
    • Biogenic Carbon Content Of The Product Kg Of C Manufacturing A1 A3 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Distribution A4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Installation A5 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Maintenance B2 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Repair B3 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Replacement B4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Operational Energy Use B6 : 0
    • Biogenic Carbon Content Of The Product Kg Of C End Of Life C1 C4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Benefits Loads Beyond System Boundaries D : 0
    • Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 0.117948053
    • Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 0.030948964
    • Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
    • Climate Change Biogenics Kg Co2 Eq Installation A5 : 0.000149947
    • Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
    • Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
    • Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0.055063343
    • Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0.031785798
    • Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.026945277
    • Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 4.0572066
    • Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 1.110337078
    • Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 0.045492359
    • Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 0.003006844
    • Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 2.437765416
    • Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 0.460604903
    • Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.323199067
    • Climate Change Total Kg Co2 Eq Total Life Cycle : 4.175166982
    • Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 1.141297845
    • Climate Change Total Kg Co2 Eq Distribution A4 : 0.045492359
    • Climate Change Total Kg Co2 Eq Installation A5 : 0.003156791
    • Climate Change Total Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Total Kg Co2 Eq Repair B3 : 0
    • Climate Change Total Kg Co2 Eq Replacement B4 : 0
    • Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 2.492828759
    • Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 0.492391228
    • Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.350144343
    • Components For Re Use Kg Total Life Cycle : 0
    • Components For Re Use Kg Manufacturing A1 A3 : 0
    • Components For Re Use Kg Distribution A4 : 0
    • Components For Re Use Kg Installation A5 : 0
    • Components For Re Use Kg Maintenance B2 : 0
    • Components For Re Use Kg Repair B3 : 0
    • Components For Re Use Kg Replacement B4 : 0
    • Components For Re Use Kg Operational Energy Use B6 : 0
    • Components For Re Use Kg End Of Life C1 C4 : 0
    • Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.000281925
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.000248828
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 1.79342E-09
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 7.76651E-11
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 8.08251E-07
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 3.22877E-05
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -0.000207773
    • Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 83.71182463
    • Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 19.1591468
    • Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 0.635518958
    • Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.03131283
    • Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 59.78388237
    • Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 4.101963671
    • Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -5.771396721
    • Ecotoxicity Fresh Water Ctue Total Life Cycle : 1327.993874
    • Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 1295.294489
    • Ecotoxicity Fresh Water Ctue Distribution A4 : 0.029840288
    • Ecotoxicity Fresh Water Ctue Installation A5 : 0.042794714
    • Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
    • Ecotoxicity Fresh Water Ctue Repair B3 : 0
    • Ecotoxicity Fresh Water Ctue Replacement B4 : 0
    • Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 3.737139409
    • Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 28.88961036
    • Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -5.91799576
    • Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 3.27887E-07
    • Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 2.016E-07
    • Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 2.34627E-09
    • Emission Of Fine Particles Incidence Of Diseases Installation A5 : 5.55564E-11
    • Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
    • Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
    • Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
    • Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 1.02162E-07
    • Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 2.17232E-08
    • Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -1.51689E-07
    • Exported Energy Mj By Energy Vector Total Life Cycle : 0.001901871
    • Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.000234812
    • Exported Energy Mj By Energy Vector Distribution A4 : 0
    • Exported Energy Mj By Energy Vector Installation A5 : 0.000129117
    • Exported Energy Mj By Energy Vector Maintenance B2 : 0
    • Exported Energy Mj By Energy Vector Repair B3 : 0
    • Exported Energy Mj By Energy Vector Replacement B4 : 0
    • Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
    • Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0.001537942
    • Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
    • Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.00116511
    • Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0.000165282
    • Freshwater Eutrophication Kg P Eq Distribution A4 : 1.70882E-08
    • Freshwater Eutrophication Kg P Eq Installation A5 : 7.24137E-08
    • Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
    • Freshwater Eutrophication Kg P Eq Repair B3 : 0
    • Freshwater Eutrophication Kg P Eq Replacement B4 : 0
    • Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 5.97067E-06
    • Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 0.000993768
    • Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -5.0222E-07
    • Hazardous Waste Disposed Of Kg Total Life Cycle : 22.41214431
    • Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 22.41205063
    • Hazardous Waste Disposed Of Kg Distribution A4 : 0
    • Hazardous Waste Disposed Of Kg Installation A5 : 7.88002E-05
    • Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
    • Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 1.48746E-05
    • Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -19.0914612
    • Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 1.4764E-08
    • Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 1.31198E-08
    • Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 8.00561E-13
    • Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 3.57221E-10
    • Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 3.08327E-10
    • Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 9.77889E-10
    • Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -3.79508E-09
    • Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 5.05113E-07
    • Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 4.22533E-07
    • Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 1.54873E-11
    • Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 9.31753E-12
    • Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 7.30319E-09
    • Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 7.5253E-08
    • Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -3.41122E-07
    • Impacts Related To Land Use Soil Quality Total Life Cycle : 3.58003657
    • Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 0.509173784
    • Impacts Related To Land Use Soil Quality Distribution A4 : 0
    • Impacts Related To Land Use Soil Quality Installation A5 : 8.64052E-06
    • Impacts Related To Land Use Soil Quality Maintenance B2 : 0
    • Impacts Related To Land Use Soil Quality Repair B3 : 0
    • Impacts Related To Land Use Soil Quality Replacement B4 : 0
    • Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 0.066100508
    • Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 3.004753638
    • Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 53.20156599
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 49.89316476
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.00011096
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.00048293
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 3.261478055
    • Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.046329284
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -42.47350811
    • Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.003422238
    • Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.001298322
    • Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.000135234
    • Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 4.02328E-06
    • Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0.001526819
    • Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.00045784
    • Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -0.000380252
    • Materials For Energy Recovery Kg Total Life Cycle : 0
    • Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
    • Materials For Energy Recovery Kg Distribution A4 : 0
    • Materials For Energy Recovery Kg Installation A5 : 0
    • Materials For Energy Recovery Kg Maintenance B2 : 0
    • Materials For Energy Recovery Kg Repair B3 : 0
    • Materials For Energy Recovery Kg Replacement B4 : 0
    • Materials For Energy Recovery Kg Operational Energy Use B6 : 0
    • Materials For Energy Recovery Kg End Of Life C1 C4 : 0
    • Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
    • Materials For Recycling Kg Total Life Cycle : 0.178799644
    • Materials For Recycling Kg Manufacturing A1 A3 : 0.023322658
    • Materials For Recycling Kg Distribution A4 : 0
    • Materials For Recycling Kg Installation A5 : 0
    • Materials For Recycling Kg Maintenance B2 : 0
    • Materials For Recycling Kg Repair B3 : 0
    • Materials For Recycling Kg Replacement B4 : 0
    • Materials For Recycling Kg Operational Energy Use B6 : 0
    • Materials For Recycling Kg End Of Life C1 C4 : 0.155476986
    • Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
    • Net Use Of Fresh Water M3 Total Life Cycle : 0.062886444
    • Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.038444401
    • Net Use Of Fresh Water M3 Distribution A4 : 4.02792E-06
    • Net Use Of Fresh Water M3 Installation A5 : 5.68222E-06
    • Net Use Of Fresh Water M3 Maintenance B2 : 0
    • Net Use Of Fresh Water M3 Repair B3 : 0
    • Net Use Of Fresh Water M3 Replacement B4 : 0
    • Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.004416566
    • Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.020015768
    • Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -0.02878275
    • Non Hazardous Waste Disposed Of Kg Total Life Cycle : 0.875598483
    • Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0.41477171
    • Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.001599093
    • Non Hazardous Waste Disposed Of Kg Installation A5 : 0.001352461
    • Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Non Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0.375757825
    • Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.082117394
    • Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.028005676
    • Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 1.67464E-07
    • Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 1.40119E-07
    • Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 6.98342E-11
    • Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 4.0944E-11
    • Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 1.0678E-08
    • Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 1.6557E-08
    • Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -1.00585E-07
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 0.012506811
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.005836434
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.000374198
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 6.41547E-06
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0.004841024
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.001448738
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -0.002846664
    • Radioactive Waste Disposed Of Kg Total Life Cycle : 0.000367657
    • Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.000273929
    • Radioactive Waste Disposed Of Kg Distribution A4 : 1.13892E-06
    • Radioactive Waste Disposed Of Kg Installation A5 : 1.67159E-07
    • Radioactive Waste Disposed Of Kg Maintenance B2 : 0
    • Radioactive Waste Disposed Of Kg Repair B3 : 0
    • Radioactive Waste Disposed Of Kg Replacement B4 : 0
    • Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 8.85532E-05
    • Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 3.86949E-06
    • Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -2.85406E-05
    • Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 0.046769931
    • Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0.01457761
    • Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.001483586
    • Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 2.79873E-05
    • Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 0.024484384
    • Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.006196364
    • Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -0.004456756
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 2.077650781
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 2.077650781
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 99.87544948
    • Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 20.54311349
    • Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 0.636367029
    • Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.035419594
    • Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 73.78305735
    • Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 4.877492012
    • Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -6.456628246
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 16.16362485
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1.38396669
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.000848071
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.004106763
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 13.99917498
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.775528341
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.685231524
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 2.077650781
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 2.077650781
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 81.63417385
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 17.08149602
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.635518958
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.03131283
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 59.78388237
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 4.101963671
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -5.771396721
    • Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.255206044
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.255206044
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.043687645
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 15.9084188
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1.128760647
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.000848071
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.004106763
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 13.99917498
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.775528341
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.641543879
    • Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Secondary Materials Kg Total Life Cycle : 0
    • Use Of Secondary Materials Kg Manufacturing A1 A3 : 0
    • Use Of Secondary Materials Kg Distribution A4 : 0
    • Use Of Secondary Materials Kg Installation A5 : 0
    • Use Of Secondary Materials Kg Maintenance B2 : 0
    • Use Of Secondary Materials Kg Repair B3 : 0
    • Use Of Secondary Materials Kg Replacement B4 : 0
    • Use Of Secondary Materials Kg Operational Energy Use B6 : 0
    • Use Of Secondary Materials Kg End Of Life C1 C4 : 0
    • Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
    • Water Use M3 Eq Total Life Cycle : 2.700245176
    • Water Use M3 Eq Manufacturing A1 A3 : 1.651184275
    • Water Use M3 Eq Distribution A4 : 0.000172999
    • Water Use M3 Eq Installation A5 : 0.00024398
    • Water Use M3 Eq Maintenance B2 : 0
    • Water Use M3 Eq Repair B3 : 0
    • Water Use M3 Eq Replacement B4 : 0
    • Water Use M3 Eq Operational Energy Use B6 : 0.188975585
    • Water Use M3 Eq End Of Life C1 C4 : 0.859668337
    • Water Use M3 Eq Benefits Loads Beyond System Boundaries D : -1.236218703
    • Air Pollution M3 Total Life Cycle : 0
    • Air Pollution M3 Manufacturing A1 A3 : 0
    • Air Pollution M3 Distribution A4 : 0
    • Air Pollution M3 Installation A5 : 0
    • Air Pollution M3 Maintenance B2 : 0
    • Air Pollution M3 Repair B3 : 0
    • Air Pollution M3 Replacement B4 : 0
    • Air Pollution M3 Operational Energy Use B6 : 0
    • Air Pollution M3 End Of Life C1 C4 : 0
    • Air Pollution M3 Benefits Loads Beyond System Boundaries D : 0
    • Water Pollution M3 Total Life Cycle : 0
    • Water Pollution M3 Manufacturing A1 A3 : 0
    • Water Pollution M3 Distribution A4 : 0
    • Water Pollution M3 Installation A5 : 0
    • Water Pollution M3 Maintenance B2 : 0
    • Water Pollution M3 Repair B3 : 0
    • Water Pollution M3 Replacement B4 : 0
    • Water Pollution M3 Operational Energy Use B6 : 0
    • Water Pollution M3 End Of Life C1 C4 : 0
    • Water Pollution M3 Benefits Loads Beyond System Boundaries D : 0
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : comb busbar
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=267996779&lang=en-us
    • Take Back : No
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0%
    • China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 4.175166982
    • 9 MM Pitches : 114
    • Environmental Disclosure : ENVPEP2503006EN
    • EU ROHS Directive : Compliant
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2503006EN
    • Pep Verification Date : 4/1/2025
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed3-2023 06 06
    • Type Of Verification For The Pep : Independent external review
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Germany
  • Overview Attributes
    • Device Presentation : cuttable
