Acti9 - comb busbar - 1L - 18 mm pitch - 12 modules - 100A

1P COMB BUSBAR 12 POLES

SQDA9XPH112 A9XPH112 3606480485008
17.50 / EA
http://schema.org/OutOfStock

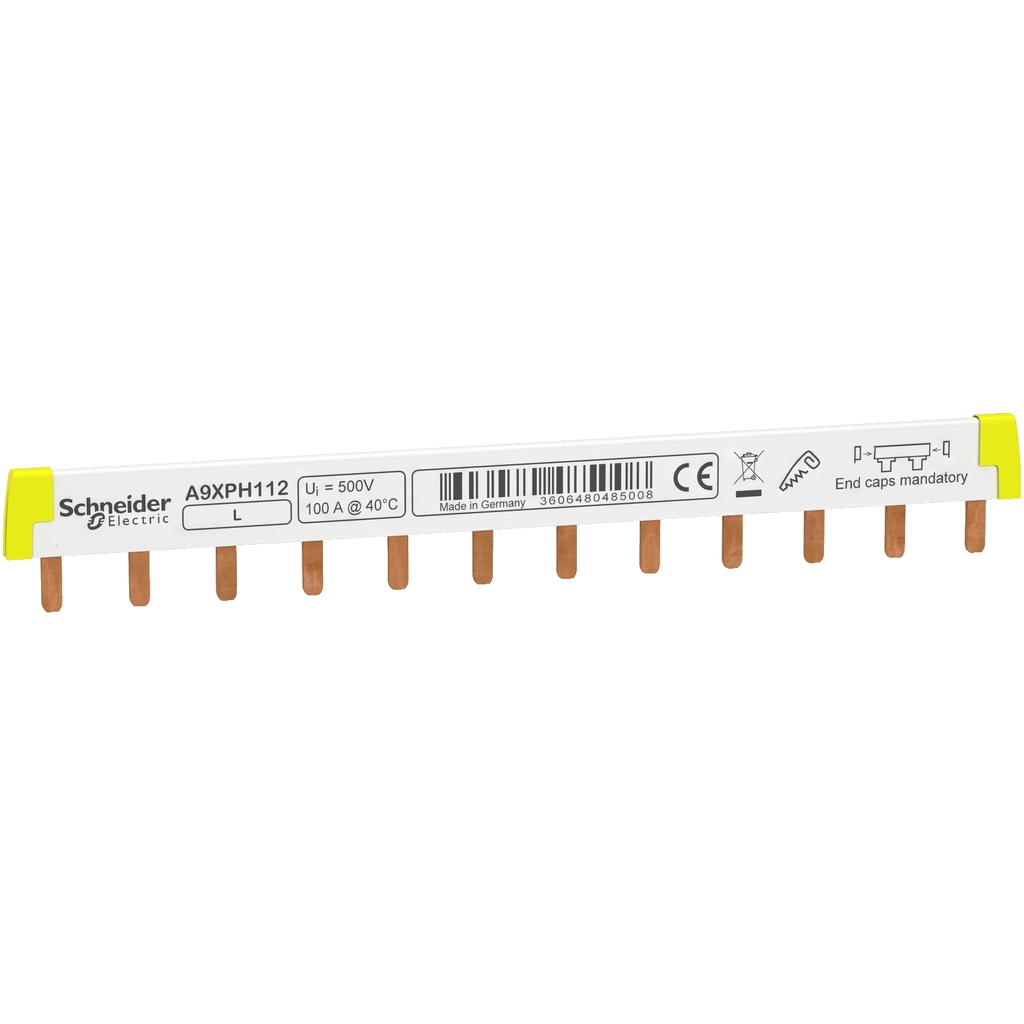

Mayer-DDS-Acti9 - comb busbar - 1L - 18 mm pitch - 12 modules - 100A-1
  • Mounting Type: Horizontal
  • Standard: IEC 60947-7-1, IEC 61439-2
  • Warranty Length: 18 mth
  • Width: 220 mm
This Acti9 product is a cuttable horizontal comb busbar 12 modules for Acti9 iC60 or Acti9 iK60. It is dedicated to 1L installations. The type is L (Line). It is a set of 1 device. It is suitable for 12 devices (1P). The length is 220mm.The total number of modules of 18mm is 12. The pin cross section is 16mm2. The type of electric connection is PIN. The number of phase is 1. The number of poles is 1. The Ie rated operational current at 40°C is 100A. The Isc short circuit current is compatible with the breaking capacity of Schneider Electric circuit breakers. The Ui rated insulation voltage is 500VAC. The Ue rated operational voltage is 415VAC. The color of the device is white RAL9003. The pollution degree is 3. According to IEC 60695-2-1 standard the fire resistance is self-extinguishing at 960°C within 30s. It complies with IEC 60947-7-1 and IEC 61439-2 standards.
QTY
  • Product Description
  • Specifications
This Acti9 product is a cuttable horizontal comb busbar 12 modules for Acti9 iC60 or Acti9 iK60. It is dedicated to 1L installations. The type is L (Line). It is a set of 1 device. It is suitable for 12 devices (1P). The length is 220mm.The total number of modules of 18mm is 12. The pin cross section is 16mm2. The type of electric connection is PIN. The number of phase is 1. The number of poles is 1. The Ie rated operational current at 40°C is 100A. The Isc short circuit current is compatible with the breaking capacity of Schneider Electric circuit breakers. The Ui rated insulation voltage is 500VAC. The Ue rated operational voltage is 415VAC. The color of the device is white RAL9003. The pollution degree is 3. According to IEC 60695-2-1 standard the fire resistance is self-extinguishing at 960°C within 30s. It complies with IEC 60947-7-1 and IEC 61439-2 standards.
  • Environment
    • Ip Degree Of Protection : IP20 with end-pieces and tooth covers
    • Standards : IEC 60947-7-1 || IEC 61439-2
    • Pollution Degree : 3 IEC 60947-7-1
    • Fire Resistance : 960 °C 30 s ) IEC 60695-2-1
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2005011
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Reach Free Of Svhc : Yes
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Circularity Profile : N/A
    • Eu Rohs Directive : Compliant
  • Complementary
    • Range Compatibility : Acti 9 Acti9 iC60 || Acti 9 Acti9 iK60 || Acti 9 Acti9 iID || Acti 9 Acti9 iID K || Acti 9 Acti9 iSW || Acti 9 Acti9 iSW-NA || Multi9 Multi9 C60
    • Number Of Ways : 12 ways 1 L
    • 9 Mm Pitches : 24
    • Distance Between Way : 18 mm
    • Marking : L
    • Connector Type : tooth
    • Device Presentation : cuttable
    • [Ui] Rated Insulation Voltage : 500 V AC IEC 61439-2
    • [Ie] Rated Operational Current : 100 A 40 °C
    • Insulation : insulated
    • [Ue] Rated Operational Voltage : 415 V AC
    • Connection Pitch : 18 mm
    • Color : White RAL 9003)
    • Width : 220 mm
    • Mounting Location : top or bottom tunnel type terminals || top or bottom double terminal
    • Poles Configuration For 1 Way : 1 x 1P
  • Specifications
    • Total Number Of 18 Mm Modules : 12
    • Accessory / Separate Part Category : connection accessory
    • Product Or Component Type : comb busbar
    • Range : Acti9
    • Mounting Mode : horizontal
    • Lines Description : 1L
